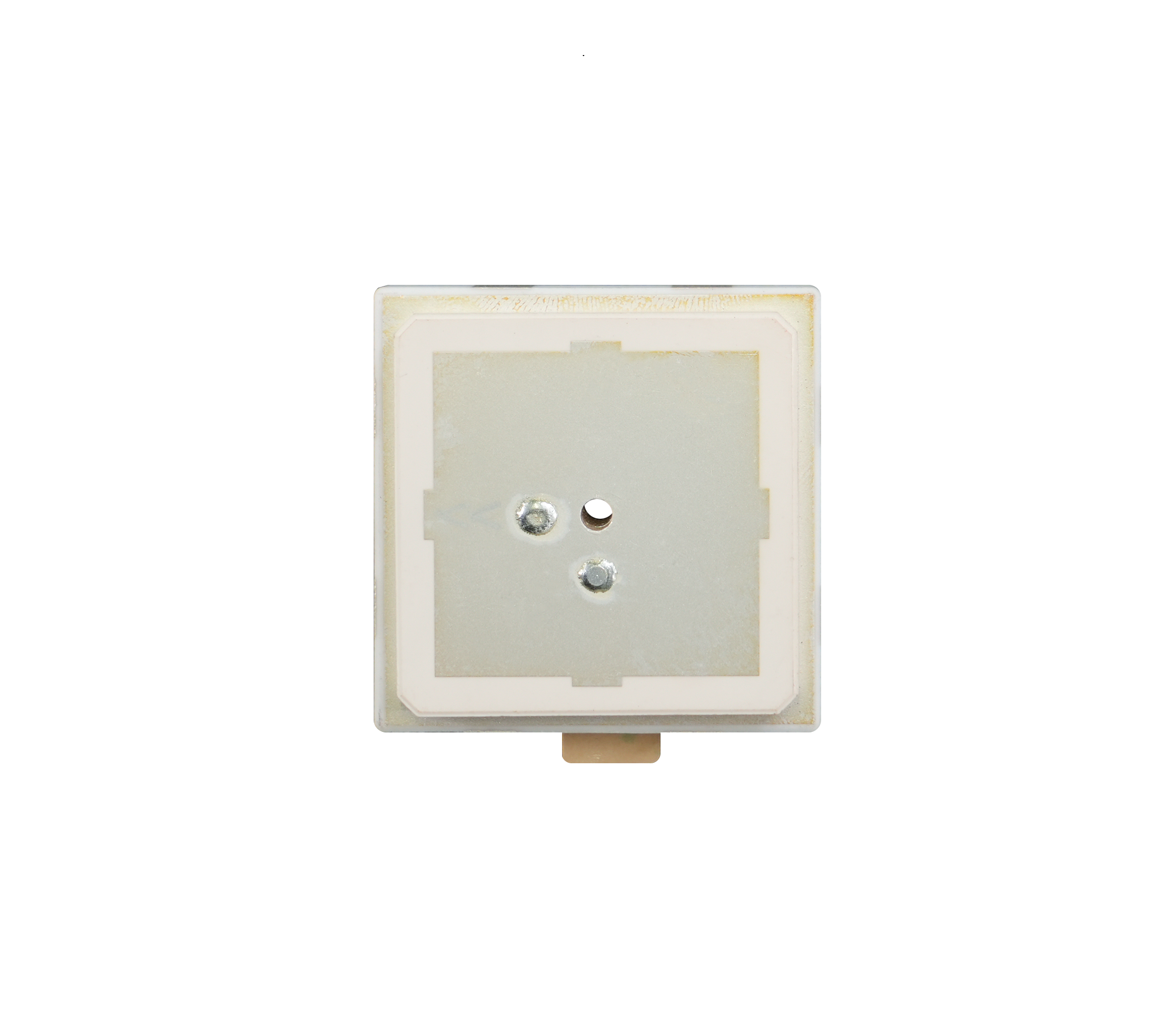

YFGC245WWB GPS adhesive and solder mount antenna
- Frequency band: 1559–1606MHz; 1164–1189MHz
- Dimensions: 45mm × 45mm × 8mm + 40mm × 40mm × 4mm
- Efficiency: up to 60.4%
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for GPS L1 and L5 networks
- Adhesive and soldering mount
Overview
This Quectel GNSS antenna adopts a diversity of forms to guarantee the most suitable polarization type. Quectel’s positioning products support single-band or multi-band operation modes to meet various highprecision positioning requirements of customers’ products. Quectel also provides both passive and active antennas to satisfy the customer demand for high gain. Such antennas support different installation or connection methods such as pin mount, surface mount, magnetic mount, internal cable, and external SMA. Customized connector types and cable lengths are provided according to requirements.
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
