# GNSS LC99T
## Key features
- Multi-GNSS engine for GPS, GLONASS, Galileo, BDS, QZSS and NavIC
- Ideal for dense urban canyons and multi-path environments
- AGNSS
- Optimized accuracy and availability with survey-in (auto position hold) and single-satellite timing
- L1 + L5 bands
- PPS, synchronized to GNSS/UTC within 13.6 ns (1 sigma)
- 10 MHz frequency output
## Overview
Quectel LC99T is a dual-band high-precision timing GNSS module, which can concurrently track GPS, GLONASS, Galileo, BDS, QZSS and NavIC satellite signals. It also supports SBAS (including WAAS, EGNOS, MSAS and GAGAN) and AGNSS functionality. In contrast to single-band GNSS modules, it tracks a substantially greater number of visible satellites, enhancing overall signal reception. With nanosecond timing accuracy, the module is particularly well suited for infrastructure applications with precise timing requirements. LC99T is designed to meet the most stringent timing synchronization requirements within global 4G/5G mobile networks. In addition, the module can generate a 10 MHz square wave for various applications.
By effectively minimizing timing errors of the primary source of cellular network synchronization, it empowers operators to maximize their network performance. Simultaneously, LC99T meets the strict synchronization demands of the next-generation networks across various vertical industries such as 5G X-Haul, smart grid, data centers, satellite communications, calibration services, and industrial automation applications. The module’s multi-band capability reduces timing errors to less than 13.6 ns under open-sky conditions. Additionally, it is designed and manufactured in accordance with the stringent Quality Management System, aligning with the IATF 16949:2016 Standard.
Browse our wide range of antennas – download our antenna brochure
[View brochure](https://www2.quectel.com/quectel_antenna_brochure.pdf)
## Product Brochure
Quectel_Product_Brochure_V8.6.pdf
[Download](https://www.quectel.com/content/uploads/2026/05/Quectel_Product_Brochure_V8.6.pdf)
## Documentation and resources
- **Application Note**
- [Quectel_GNSS_Timing_Application_Note_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fgnss-lc99t%2F) (File Size: 591.18 KB)
- [Quectel_Convert_NMEA_Coordinates_into_Google_Earth_Application_Note_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fgnss-lc99t%2F) (File Size: 293.10 KB)
- [Quectel_LC29T(AA)&LC99T(IA)_OSNMA_Application_Note_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fgnss-lc99t%2F) (File Size: 909.36 KB)
- **Drivers**
- [Quectel_GNSS_Android_HAL_Driver_User_Guide_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fgnss-lc99t%2F) (File Size: 266.18 KB)
- **EVB Kit**
- [Quectel_LC99T(IA)_EVB_User_Guide_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fgnss-lc99t%2F) (File Size: 895.44 KB)
- **GNSS Protocol Specification**
- [Quectel_LC29T(AA)&LC99T(IA)_GNSS_Protocol_Specification_V1.2](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fgnss-lc99t%2F) (File Size: 606.86 KB)
## Quectel_LC99T(IA)_Reference_Design_V1.1
File Size
475.64 KB
## Quectel_LC99T_Series_2D_Dimensions_V1.1
File Size
83.18 KB
## Quectel_LC99T_Series_3D_Dimensions_V1.1
File Size
904.94 KB
## Quectel_LC99T_Series_Footprint&Part_V1.0
File Size
131.63 KB
## Quectel_LC29T(AA)&LC99T(IA)_Hardware_Difference_Introduction_V1.0
File Size
283.27 KB
## Quectel_LC99T(IA)_Hardware_Design_V1.2
File Size
1.28 MB
## QGNSS_V2.5_EN
File Size
154.56 MB
## Quectel_LG69T(AA,AD,AF,AI,AJ,AR)&LC29T(AA)&LC99T(IA)_Firmware_Upgrade_Guide_V1.6
File Size
423.21 KB
## Related products
### [YPGS001AA GNSS L1 SMT mount PCB chip passive embedded antenna](https://www.quectel.com/product/ypgs001aa-gnss-smd-antenna/)
[Read more: YPGS001AA GNSS L1 SMT mount PCB chip passive embedded antenna](https://www.quectel.com/product/ypgs001aa-gnss-smd-antenna/)
### [YFTN005E3BM GNSS L-band + Iridium screw mount ceramic patch + cable passive embedded antenna](https://www.quectel.com/product/yftn005e3bm-passive-gnss-l-band-iridium-embedded-antenna/)
[Read more: YFTN005E3BM GNSS L-band + Iridium screw mount ceramic patch + cable passive embedded antenna](https://www.quectel.com/product/yftn005e3bm-passive-gnss-l-band-iridium-embedded-antenna/)

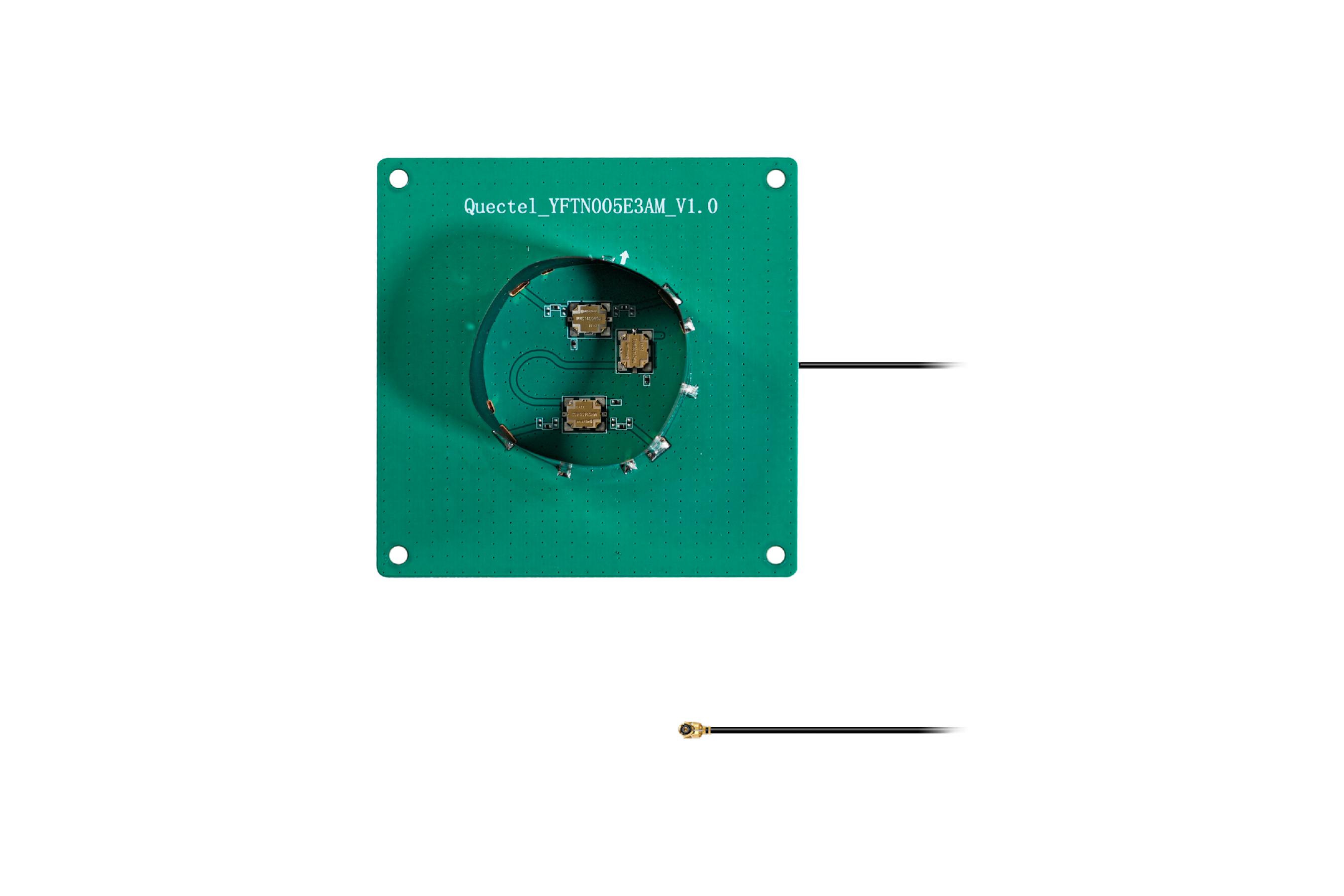

### [YFTN005E3AM passive L-band + Iridium embedded antenna](https://www.quectel.com/product/yftn005e3am-passive-l-band-iridium-antenna/)
[Read more: YFTN005E3AM passive L-band + Iridium embedded antenna](https://www.quectel.com/product/yftn005e3am-passive-l-band-iridium-antenna/)

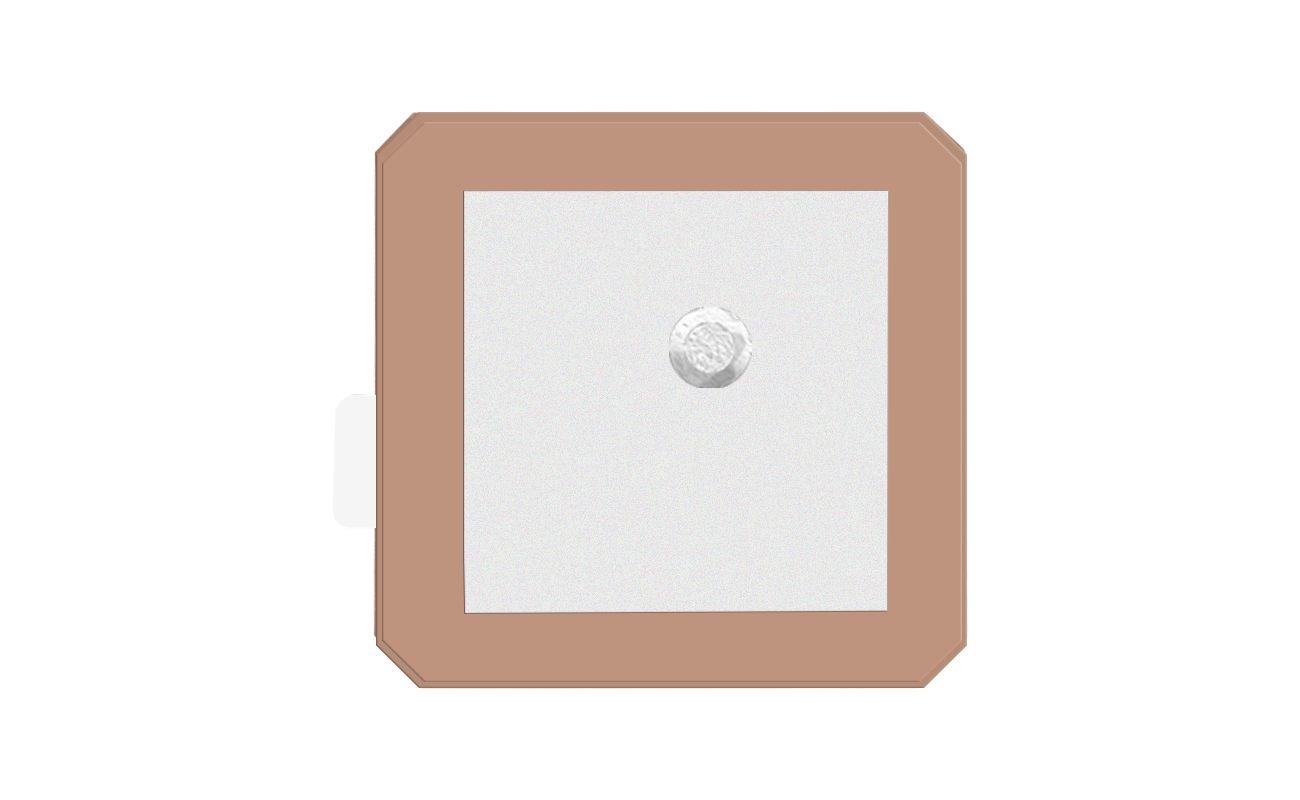

### [YFTC025WWAM GNSS L-band adhesive + soldering mount ceramic patch passive embedded antenna](https://www.quectel.com/product/yftc025wwam-gnss-l-band-passive-embedded-antenna/)
