YFMA200E3AM 5G/Wi-Fi 2-in-1 adhesive mount combo embedded antenna

  • Frequency band – 5G: 600–6000MHz
  • Frequency band – Wi-Fi: 2400–2500MHz, 5150–5850MHz, 5925–7125MHz
  • Dimensions: 124.2mm x 36.4mm
  • Efficiency: up to 77.2%
  • RoHS and REACH compliant
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • Optimized for Wi-Fi and 5G networks
  • Adhesive mount
  • IPEX MHF I connector
  • FPC casing

Overview

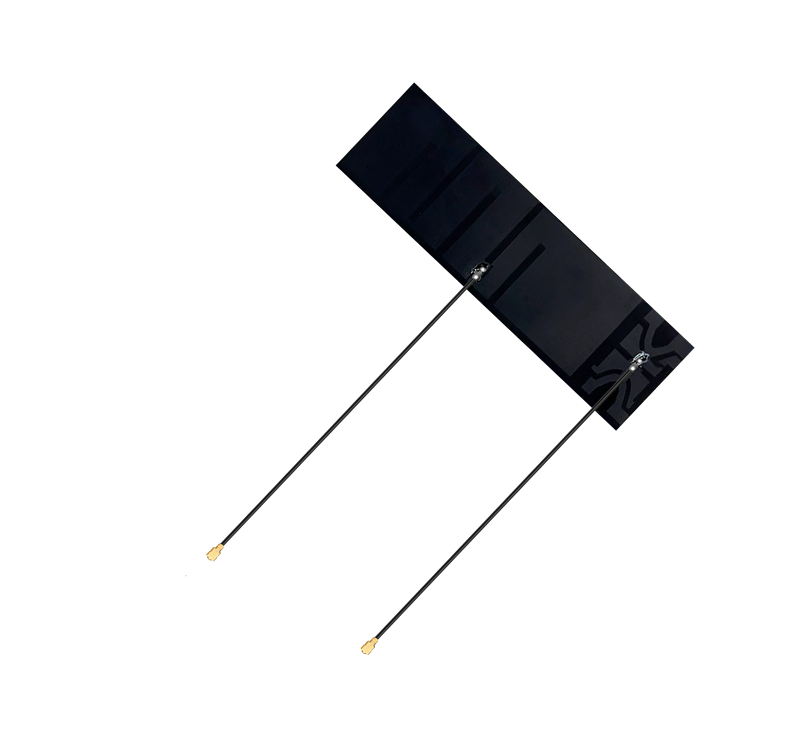

YFMA200E3AM is a 5G and Wi-Fi 2-in-1 combo antenna measuring 124.2mm × 36.4mm This antenna provides coverage from 600–960MHz, 1420–2690MHz, 3300–6000MHz and 2400–2500MHz, 5150–5850MHz, 5925–712MHz. The antenna is available with connection via two cable lengths from 125mm, terminated with IPEX MHF 1 connectors, and is available with customized cable lengths and connectors. Ideal for applications where the antenna is required to be mounted inside, this adhesive mount omni-directional antenna is easy to install thanks to its flexible material. It is compatible with Quectel’s 5G and Wi-Fi series modules. It has been tested with ABS board.

It allows constant and reliable transmission and reception due to its omni-directional gain across all frequency bands. YFMA200E3AM is designed to offer high efficiency in many different mounting scenarios. This high-efficiency, high-gain omni-directional antenna is ideally suited for smart metering, remote monitoring, vehicle tracking and telematics, and many other IoT devices.

Browse our wide range of antennas – download our antenna brochure

Product Brochure

Quectel_Product_Brochure_V8.6.pdf

Download
