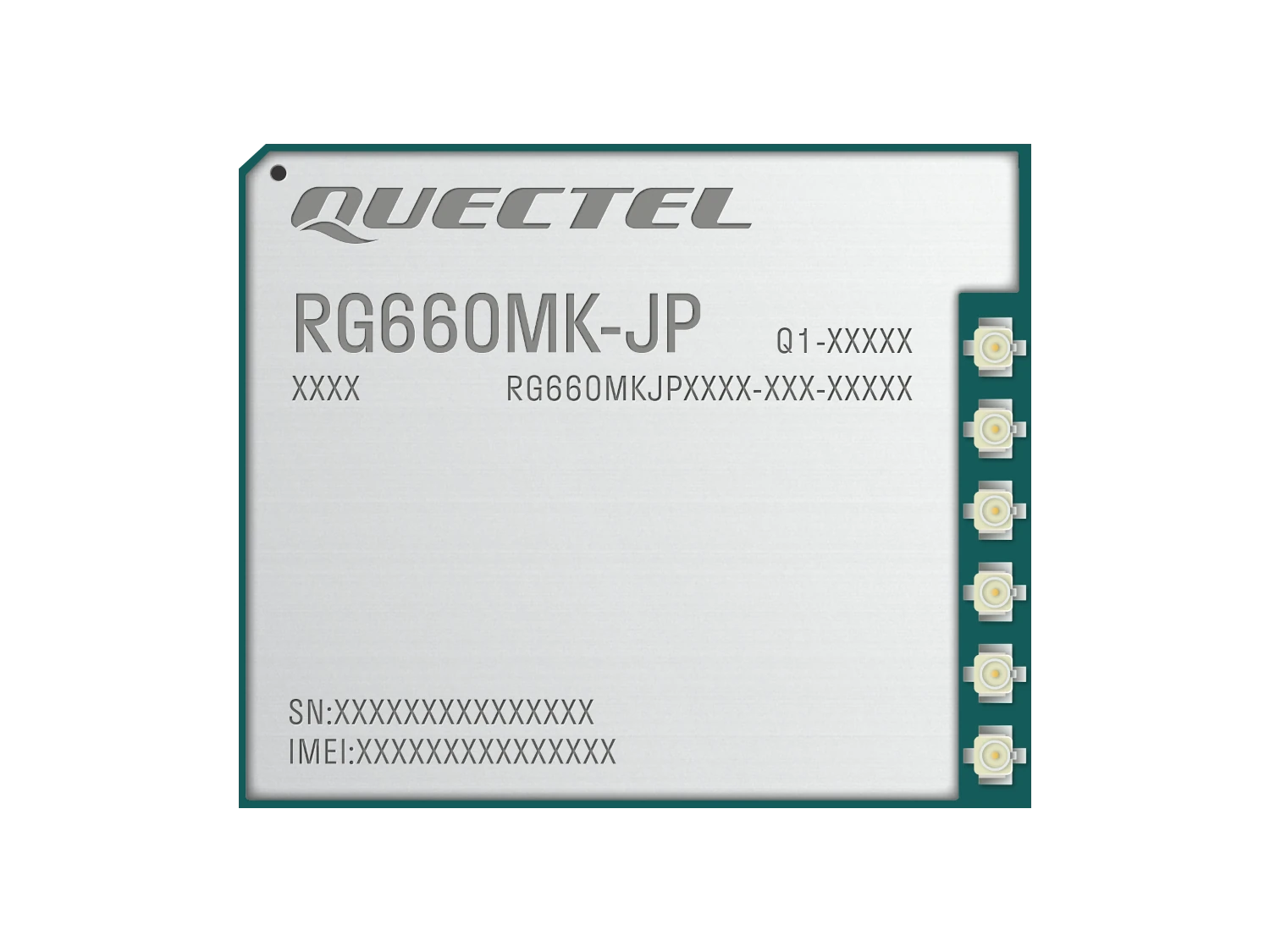

5G RG660MK series

  • 5G sub-6GHz module
  • LGA form factor
  • 53.0 mm × 44.0 mm × 2.95 mm
  • Max. data rates of 9.35 Gbps (DL) / 2.81 Gbps (UL)
  • Extended temperature range of -40 °C to +85 °C
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • Sub-6GHz 5G module with LGA form factor, optimized for IoT/eMBB/uRLLC applications
  • Both NSA and SA modes supported
  • 5G 6CA supported
  • 3TX/8RX, L4S, Wi-Fi 8 supported
  • Multi-mode network coverage, compatible with 4G network (Cat 20)
  • Transmission Mode 9 (TM9) supported, increased spectral efficiency and improved performance
  • Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

Overview

The Quectel RG660MK series is a 5G sub-6GHz LGA module optimized specially for IoT/eMBB/uRLLC applications. Adopting the 3GPP Rel-18 technology, the module supports 3TX/8RX, L4S, and Wi-Fi 8. The module supports both 5G NSA and SA modes and the deployment of Option 3x, 3a, 3, and 2, and is backward compatible with 4G.

The RG660MK series is an industrial-grade module for industrial and commercial applications only.

The module integrates a multi-constellation GNSS receiver that supports GPS, GLONASS, BDS, Galileo, and QZSS. It helps to simplify the product design and can achieve high-precision, fast, and dependable positioning.

The RG660MK series has a quad-core 2.34 GHz CPU and integrates network and VPN accelerators, which extends the applicability of the module to a wide range of eMBB, IoT, and uRLLC applications such as 5G router, CPE, MHS, industrial router, and home gateway.
