YEMA210L1AM 5G/Wi-Fi 2-in-1 adhesive and screw mount combo external antenna
- Frequency – 5G: 600–960MHz, 1400–6000MHz
- Frequency – Wi-Fi: 2400–2500MHz
- Dimensions: Φ 40mm x 72mm
- Efficiency: up to 75% (MP)
- RoHS and REACH compliant
- IP rating: IP66
Have a question? Contact us
Key features
- Optimized for 5G and Wi-Fi networks
- Adhesive and screw mount
- SMA male and RP SMA male connectors
Overview

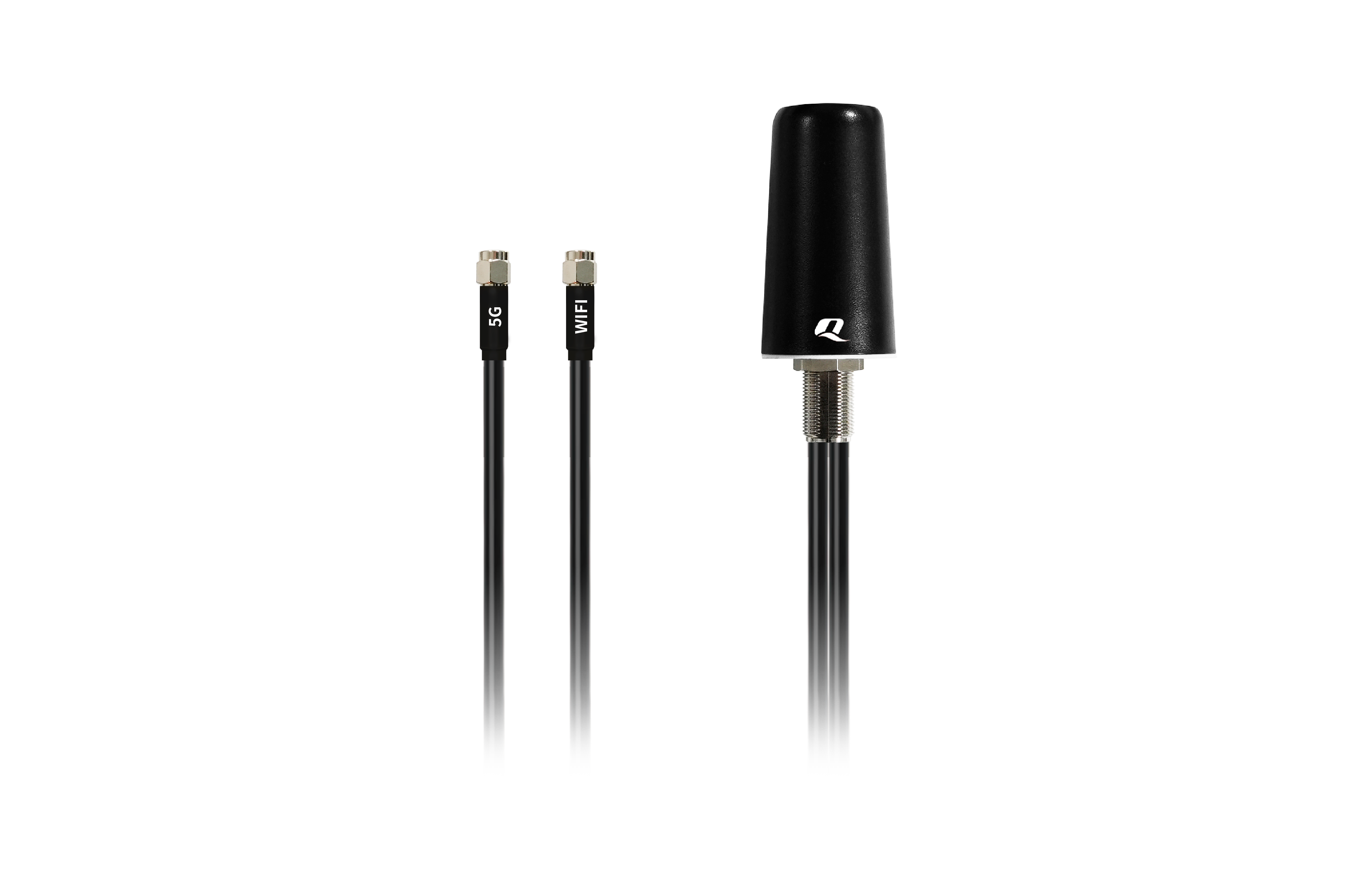

The YEMA210L1AM is a 5G and Wi-Fi 2-in-1 combo antenna measuring Φ 40mm x 72mm. This ultra-wide-band combo antenna provides broad coverage from 600–960MHz, 2400–2500MHz and 1400–6000MHz whilst offering backward-compatibility to support 4G/3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). The antenna is available with connection via 2 cable lengths from 1000mm, terminated with SMA male and RP SMA male connectors. This low profile, adhesive and screw mount omni-directional antenna, ideal for applications where the antenna is required to be discrete, is easy to install, with maximum durability assured thanks to its IP66 enclosure. It is compatible with Quectel’s RM520x Series modules.
The YEMA210L1AM has 1 x 5G LMH antenna and 1 x Wi-Fi antenna. It allows high efficiency, stable signal transmission and reception for Wi-Fi from 2400–2500MHz, and 5G band from 600–960MHz, 1400–6000MHz. In the meantime, this product also offers high isolation between antennas to avoid self-interference. All in all, this unique product is designed to provide stable and high-speed data connection to 5G and Wi-Fi applications. The YEMA210L1AM can be used in harsh environments thanks to its robust UV resistant (UL 746c f1) enclosure.
Typical applications include:
- Public safety
- HD video streaming
- Utilities and smart cities
- Fleet management
- Agricultural
- Industrial
