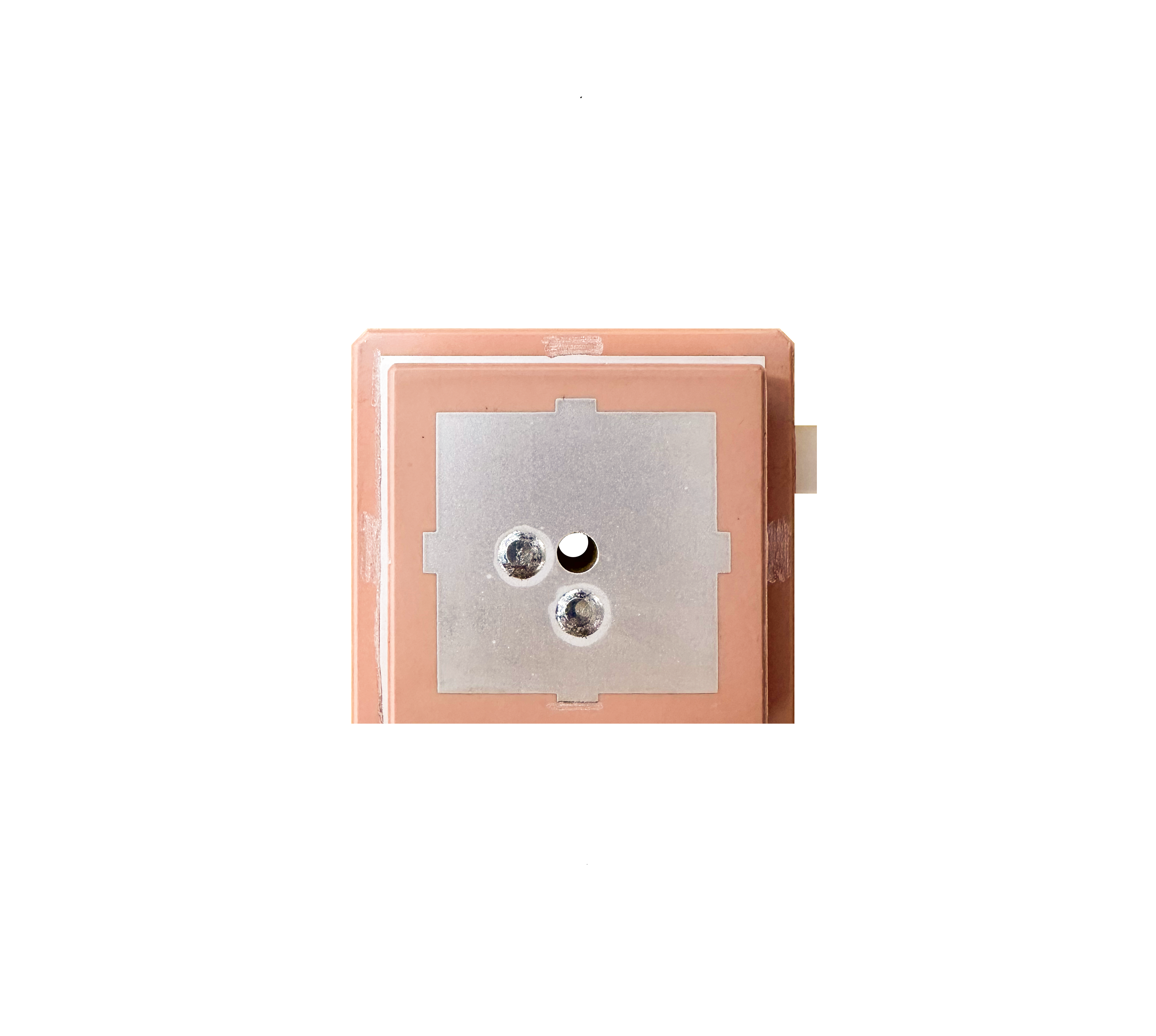

YFGC235WWA GNSS adhesive mount ceramic patch passive embedded antenna

  • Frequency band: 1559–1606MHz; 1164–1189MHz
  • Dimensions: 35mm × 35mm × 6mm + 28mm × 28mm × 4mm
  • Efficiency: up to 53.1%
  • RoHS and REACH compliant
Please enable JavaScript in your browser to complete this form.
Checkboxes
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • Optimized for GNSS L1 and L5 networks
  • Adhesive and soldering mount

Overview

This Quectel GNSS antenna adopts a diversity of forms to guarantee the most suitable polarization type. Quectel’s positioning products support single-band or multi-band operation modes to meet various high precision positioning requirements of customers’ products. Quectel provides both passive and active antennas to satisfy the customer demand for high gain. Such antennas support different installation or connection methods such as pin mount, surface mount, magnetic mount, internal cable, and external SMA. Customized connector types and cable lengths are provided according to requirements.

Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here

Product Brochure

Quectel_Product_Brochure_V8.1.pdf

Download
