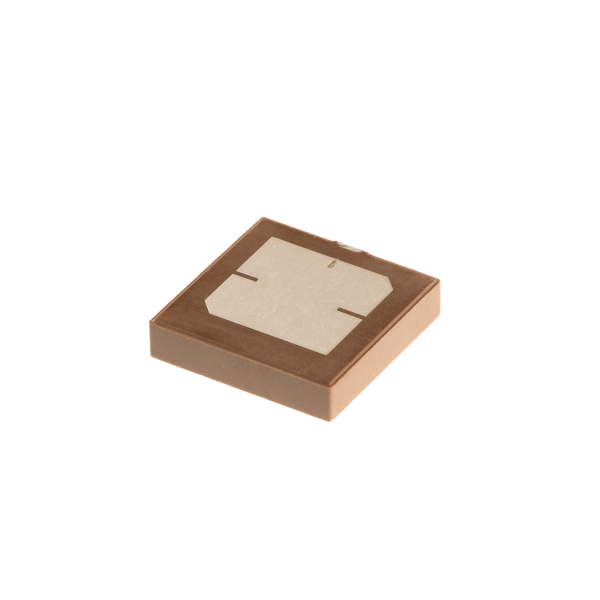

YFGC009WWB GNSS L1 SMT mount ceramic patch passive embedded antenna

  • Frequency band: 1559–1606 MHz
  • Dimensions: 18mm x 18mm x 4mm
  • Efficiency: up to 69.9%
  • RoHS and REACH compliant
Please enable JavaScript in your browser to complete this form.
Checkboxes
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • Optimized for GNSS L1 networks
  • Ceramic SMD mount

Overview

The YFGC009WWB is a high-performance GNSS SMT mount ceramic patch passive embedded antenna, designed for precise positioning applications. Operating in the 1559–1606MHz frequency range with 50Ω impedance and RHCP polarization, it supports key GNSS bands including GPS L1, GLONASS G1, GALILEO E1, BDS B1I/B1C, and QZSS L1.

With dimensions of 18mm x 18mm x 4mm and a typical weight of 9.2g, it balances compactness with performance. Boasting efficiency up to 69.9%, peak gain of 2.1dBi, and a directional radiation pattern, it ensures reliable signal reception.

RoHS and REACH compliant, it meets environmental standards. It features a recommended 70mm x 70mm PCB footprint and Sn/Ag/Cu reflow soldering profile for easy integration. Packaged in blister trays (60 pcs) and cartons (1200 pcs), it suits mass deployment, making it ideal for various GNSS-enabled devices requiring robust positioning capabilities.
