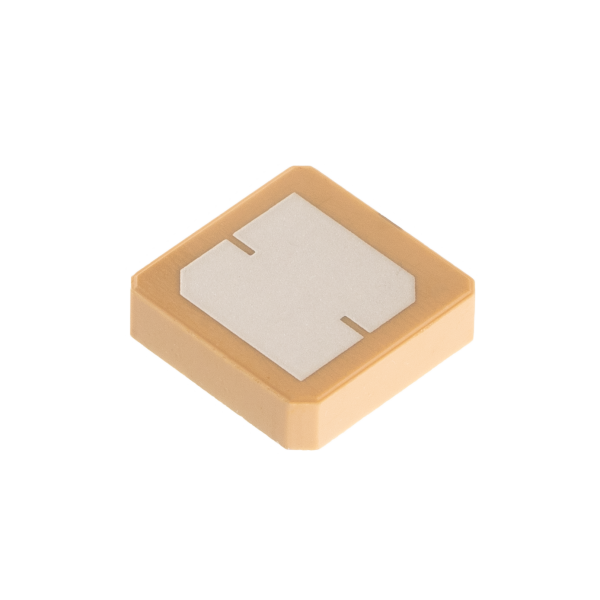

YFGC009WWA GNSS L1 SMT mount ceramic patch passive embedded antenna

  • Frequency band: 1559–1606MHz
  • Dimensions: 15mm × 15mm × 4mm
  • Efficiency: up to 57.1%
  • RoHS and REACH compliant
Please enable JavaScript in your browser to complete this form.
Checkboxes
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • Optimized for GNSS L1 networks
  • Ceramic SMD mount

Overview

The YFGC009WWA is a high-performance GNSS SMT mount ceramic patch passive embedded antenna, ideal for precise positioning applications. Operating in the 1559–1606MHz frequency range with 50Ω impedance and RHCP polarization, it supports key GNSS bands, including GPS L1, GLONASS G1, GALILEO E1, BDS B1I/B1C, and QZSS L1.

Boasting a compact 15mm × 15mm × 4mm size and 4.6g weight, it fits seamlessly into space constrained designs. With efficiency up to 57.1%, peak gain of 0.86dBi, and directional radiation, it delivers reliable signal reception.

RoHS and REACH compliant, it ensures environmental safety. The antenna features a recommended 70mm × 70mm PCB footprint and Sn/Ag/Cu reflow soldering profile, simplifying integration. Packaged in blister trays (70 pcs) and cartons (1400 pcs), it’s designed for easy handling and mass deployment, making it a top choice for various GNSS-enabled devices.

Product Brochure

Quectel_Product_Brochure_V8.4.pdf

Download

Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
