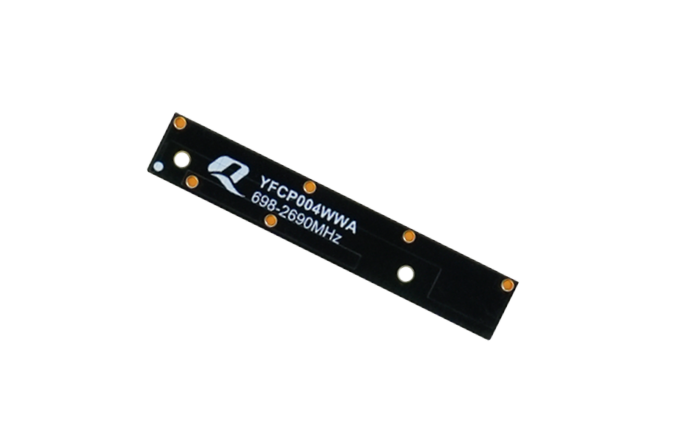

YFCP004WWA 4G SMT mount PCB chip IFA embedded antenna
- Frequency band: 700–960MHz, 1710–2690MHz
- Efficiency: up to 67.62%
- Dimensions: 40mm × 7mm × 3mm
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for 4G networks
- High efficiency
- SMD mount
Overview
The Quectel YFCP004WWA is a compact form factor SMT mount PCB antenna for 4G applications. Due to its dimensions of 40mm × 7mm × 3mm, it is designed for applications with very small space requirements such as smart metering, remote monitoring, vehicle tracking and telematics, and many other IoT devices. YFCP004WWA is a ground-dependent monopole antenna and uses main PCB as its ground plane. It is delivered on tape and reel.
The YFCP004WWA is a PCB antenna, which can be mounted on terminals in super compact spaces. Despite this small factor, it has up to 67.62% efficiency in working bands. This antenna is developed on a 136.5mm × 43mm evaluation board. If the devices have different ground sizes, a matching circuit can be used to tune the resonant frequency correctly. We also offer gerber files, 2D and 3D documents for PCB layout. The YFCP004WWA allows high efficiency, stable signal transmission and reception for 4G working bands in 700–960MHz, 1710–2690MHz. This product is RoHS and REACH compliant. Typical applications include asset tracking, smart metering, fleet management, and IoT sensors and modules.
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
