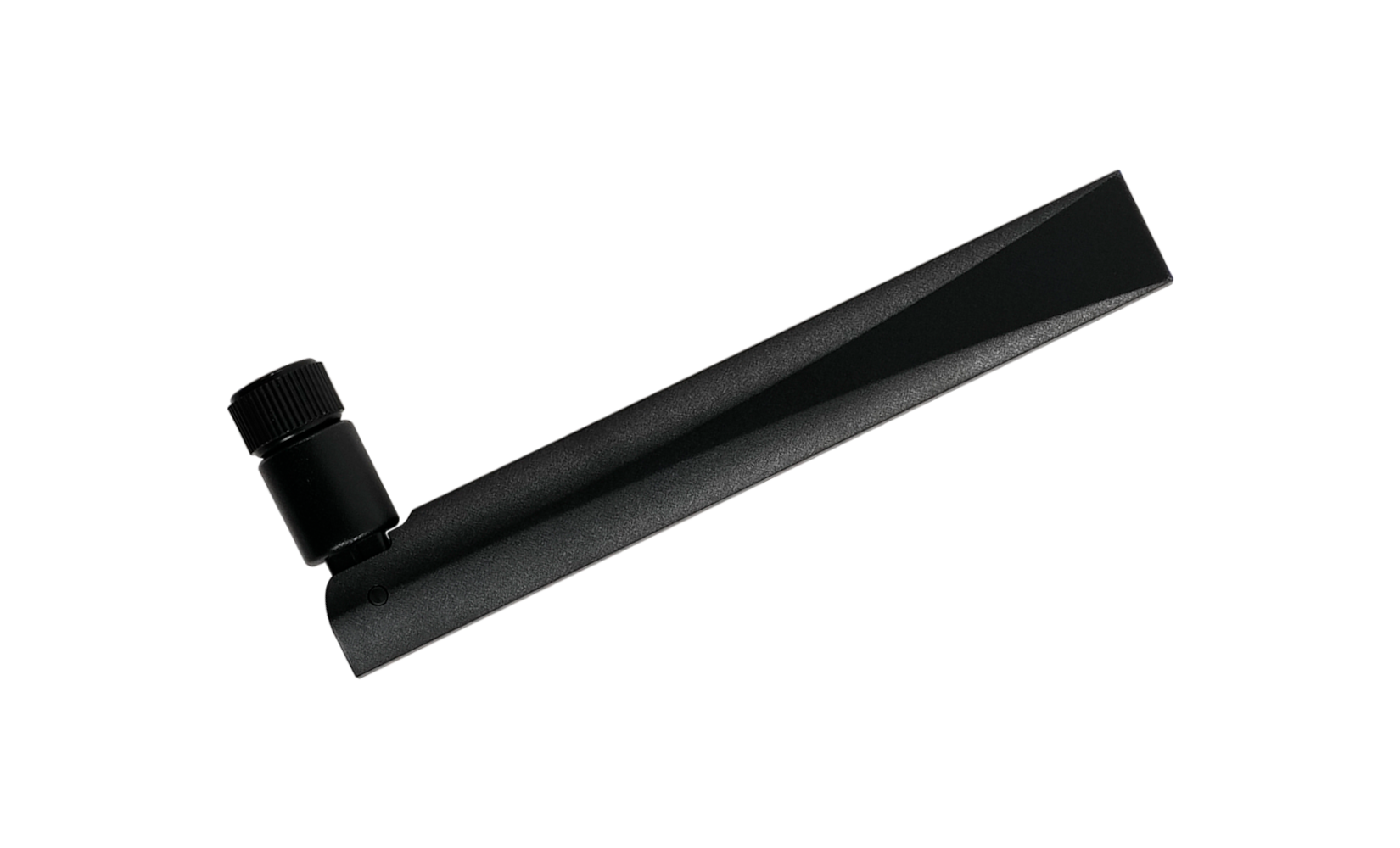

YEGT000W1AM GNSS terminal mount dipole external antenna
- Frequency band: 1559–1606MHz
- Dimensions: 135mm x 15.6mm x 13mm
- Efficiency: up to 78.2%
- RoHS and REACH compliant
- IP rating: IP67
Have a question? Contact us
Key features
- Optimized for GNSS L1
- Terminal mount
- SMA male connector
- Compatible with FAKRA, TNC and type-N connectors
Overview
This Quectel GNSS antenna adopts a diversity of forms to guarantee the most suitable polarization type. Quectel’s positioning products support single-band or multi-band operation modes to meet various high precision positioning requirements of customers’ products. Quectel provides both passive and active antennas to satisfy the customer demand for high gain. Such antenna supports different installation or connection methods, such as pin mount, surface mount, magnetic mount, internal cable, and external SMA. Customized connector type and cable length are provided according to requirements.
