YECT105W7AM 5G terminal mount rubber dipole external antenna

  • Frequency band: 600–6000MHz
  • Dimensions: 139mm x 15.6mm x 13mm
  • Efficiency: up to 70.7% (EVB)
  • RoHS and REACH compliant
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • Optimized for 5G networks
  • Terminal mount
  • TNC male connector
  • Compatible with FAKRA, SMA and N-type connectors
  • PC + ABS enclosure

Overview

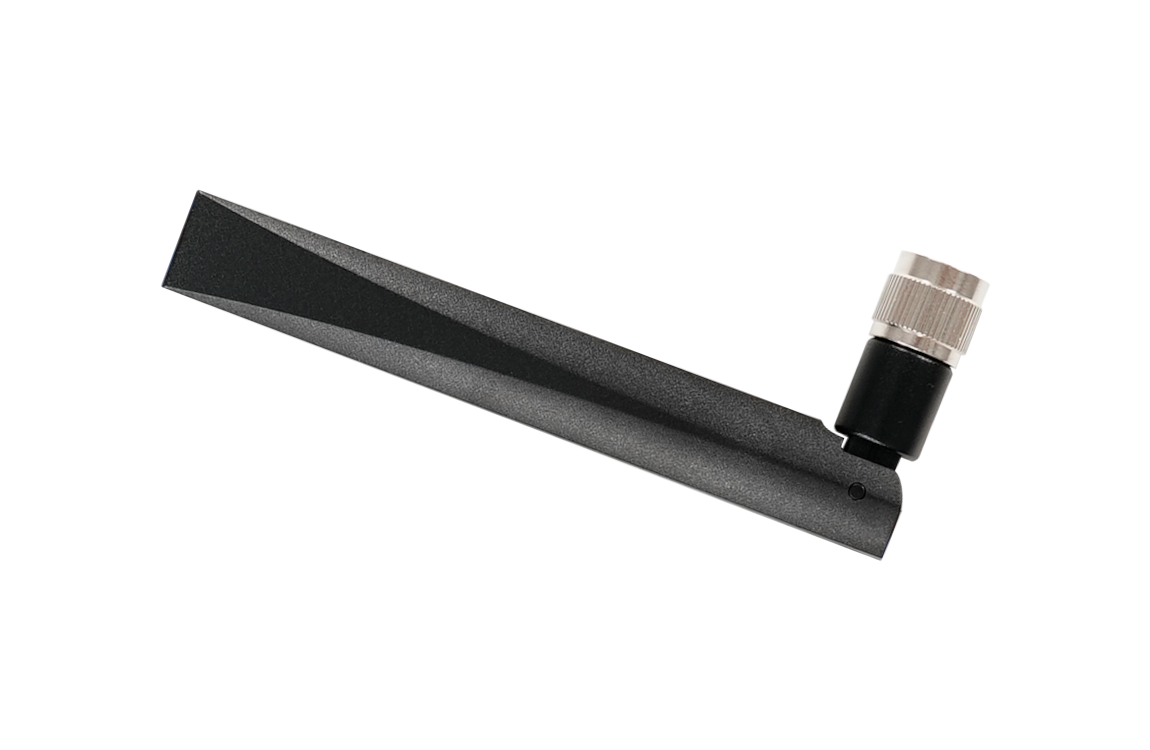

The YECT105W7AM is a 5G external antenna measuring 135mm x 15.6mm x 13mm. This ultra-wide-band 5G antenna provides broad coverage from 600–6000MHz whilst offering backward-compatibility to support 4G/3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). The antenna is terminated with a TNC male connector. Ideal for applications where the antenna is required to be discrete, this low profile, terminal mount omni-directional antenna, is easy to install, with maximum durability assured thanks to its PC + ABS enclosure.

The antenna is designed as dipole type to work with various GND plane sizes or in free space for ease of integration with a hinged TNC Male connector to achieve the optimum position. The hinged structure helps to avoid other antennas or objects by rotating to different directions when mounted on terminals.

Typical applications include:

  • Gateways and routers
  • Smart metering
  • Vending machines
  • Industrial IoT
  • Smart homes
  • Connected enterprise
