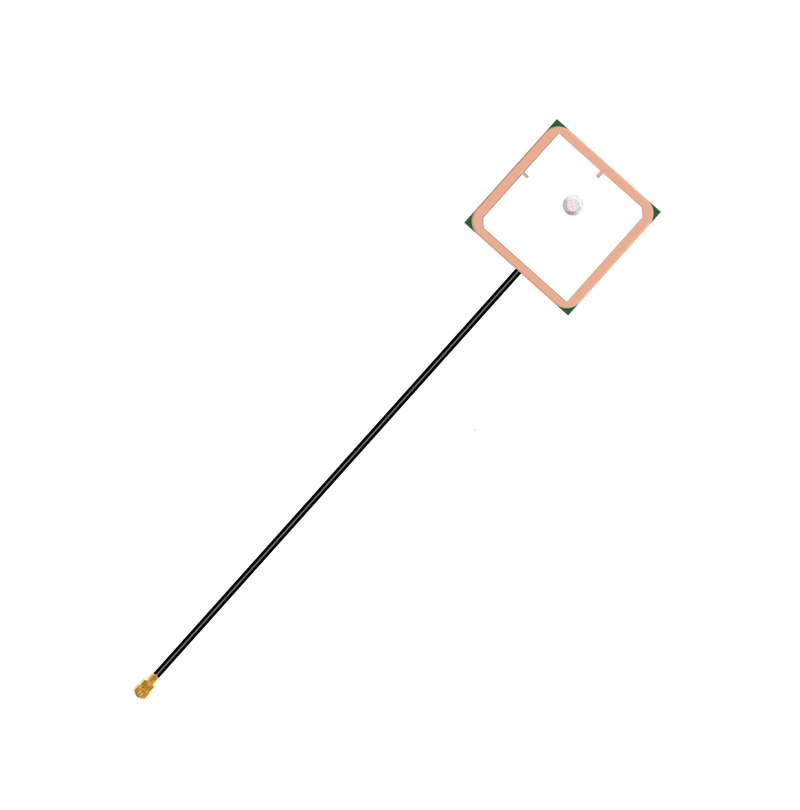

YFGA025E3BM GNSS L1 buckle mount ceramic patch + cable passive embedded antenna
- Frequency band: 1559–1606MHz
- Dimensions: 25mm x 25mm x 5.5mm
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for BDS B1I and GPS L1
- Adhesive/buckle mount
- IPEX MHF 1 connector
- Peak gain: -0.41dBi
Overview
The YFGA025E3BM is a GNSS L1 buckle mount ceramic patch + cable passive embedded antenna, designed for reliable positioning. Operating in the 1559–1586MHz range with 50Ω impedance and RHCP polarization, it supports key bands like GPS L1, GALILEO E1, BDS B1I/B1C, and QZSS L1.
With dimensions of 25mm x 25mm x 5.5mm and a 7.2g weight, it features a Φ 1.13 mm black RF cable (100mm) with an IPEX MHF1 connector and buckle mounting for easy installation. It delivers 47.4% efficiency at 1561MHz and a peak gain of -0.41dBi at 1575MHz, ensuring stable signal reception.
RoHS and REACH compliant, it operates in -40°C to +85°C. Packaged in pearl cotton trays (36 pcs) and cartons (180 pcs), it suits seamless integration into GNSS-enabled devices requiring consistent performance in various environments.
