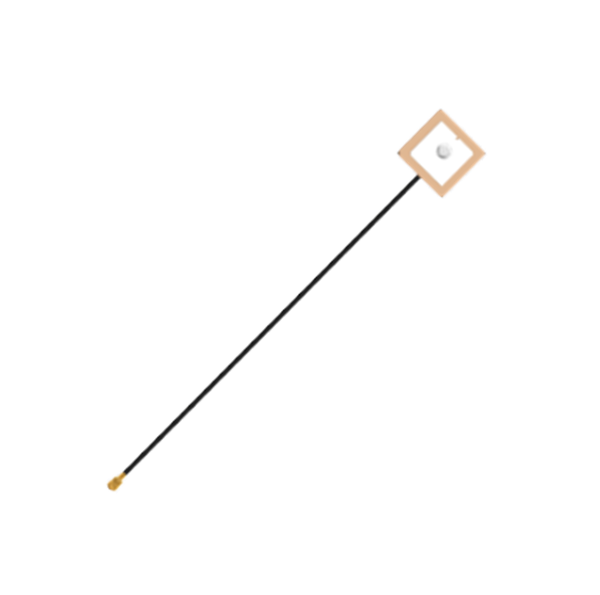

YFGA015E3AM GNSS L1 buckle mount ceramic patch + cable active embedded antenna

  • Frequency band: 1559–1606MHz
  • Dimensions: 15mm x 15mm x 7.5mm
  • RoHS and REACH compliant
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • Optimized for GNSS L1/L5
  • Adhesive/buckle mount
  • IPEX MHF 1 connector
  • LNA gain: 16 ±3dB

Overview

The YFGA015E3AM is a high-performance GNSS buckle mount ceramic patch + cable active embedded antenna, designed for reliable positioning. Operating in the 1559–1606MHz range with 50Ω impedance and RHCP polarization, it supports key bands like GPS L1, GLONASS G1, GALILEO E1, BDS B1I/B1C, and QZSS L1.

With dimensions of 15mm x 15mm x 7.5mm and a 6.0g weight, it features a Φ1.13mm black RF cable (100mm) with an IPEX MHF1 connector and buckle mounting. Its LNA gain of 16 ±3dB and noise figure ≤2.5dB enhance signal reception, complemented by 46% efficiency and a peak gain of -1.05dBi at 1575MHz.

RoHS and REACH compliant, it operates in -40°C to +85°C. Packaged in pearl cotton trays (36 pcs) and cartons (180 pcs), it suits easy integration in GNSS-enabled devices requiring robust performance.
