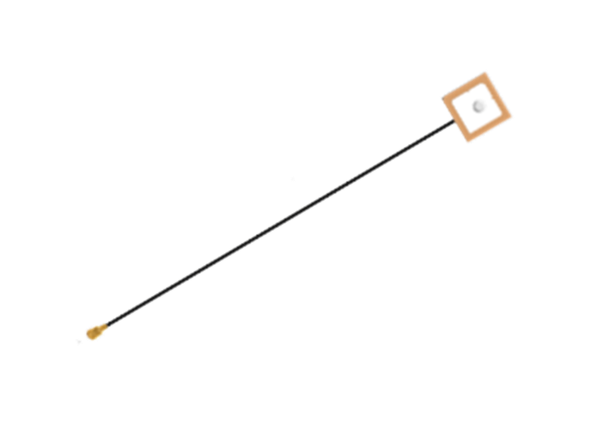

YFGA012E3AM GNSS L1 buckle mount ceramic patch + cable active embedded antenna
- Frequency band: 1559–1606MHz
- Dimensions: 12mm x 12mm x 7.5mm
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for GNSS L1
- Adhesive/buckle mount
- IPEX MHF 1 connector
- LNA gain: 16 ±3 dB
Overview
The YFGA012E3AM is a compact active GNSS antenna designed for high-performance positioning applications. It operates in the GPS L1 band (1565–1586MHz) and features Right-Hand Circular Polarization (RHCP) for reliable signal reception.
Key features:
- Dimensions: 12mm x 12mm x 7.5mm
- LNA gain: 16 ±3dB
- Noise figure: ≤ 2.5dB
- VSWR: 1.07 (at 1575MHz)
- Return loss: -29.2dB
- Radiation efficiency: 36%
- Peak gain: -1.7dBi
Supported GNSS systems:
- GPS L1, Galileo E1, BDS B1C, QZSS L1
- Electrical and environmental specifications:
- Operating voltage: 1.8–3.3V
- Current consumption: 4.3 ±1.5mA
- Operating temperature: -40°C to +85°C
- Compliant with RoHS and REACH
Mechanical and connection details:
- Connector: IPEX MHF1
- Cable: Φ 1.13mm, 100mm length, black
- Mounting type: Buckle
- Weight: Typ. 4.3g
