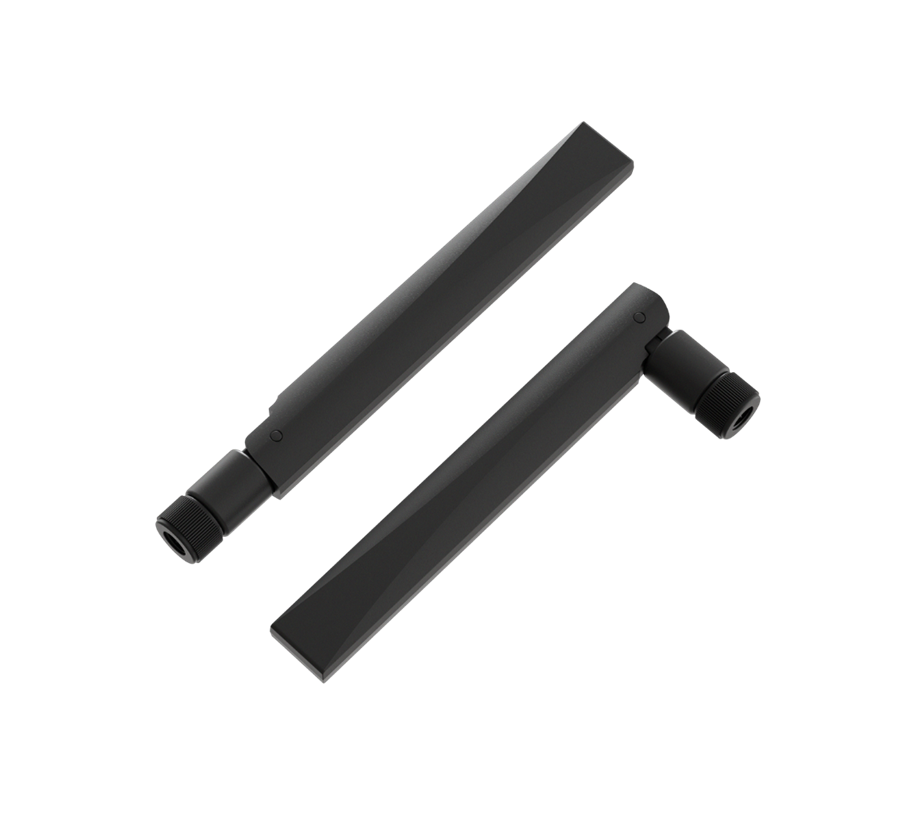

YECT011W1AM 4G terminal mount dipole external antenna
- Frequency band: 700–960MHz, 1710–2690MHz
- Dimensions: 135mm × 15.6mm × 13mm
- Efficiency: up to 68.9% (EVB)
- RoHS and REACH compliant
- IP rating: IP67
Have a question? Contact us
Key features
- Optimized for 4G networks
- Terminal mount, dipole antenna
- SMA male connector
Overview
YECT011W1AM is a 4G external antenna measuring 135mm × 15.6mm × 13 mm. This ultra-wide-band 4G antenna provides broad coverage from 700–960MHz and 1710–2690MHz whilst offering backward compatibility to support 3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). The antenna is terminated with SMA male connector. Ideal for applications where the antenna is required to be discreet, this low profile, terminal mount omni-directional antenna is easy to install with maximum durability assured thanks to its IP67 rated, PC + ABS enclosure.
The antenna is designed as dipole type to work with various GND plane sizes or in free space for ease of integration with a hinged SMA male connector to achieve the optimum position. Hinged structure helps to avoid other antennas or objects by rotating to different directions when mounted on terminals. This omni-directional antenna is ideally suited for gateways and routers, smart metering, vending machines, industrial IoT, smart homes, and connected enterprise, offering great performance with its high gain and efficiency.
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
