Overview

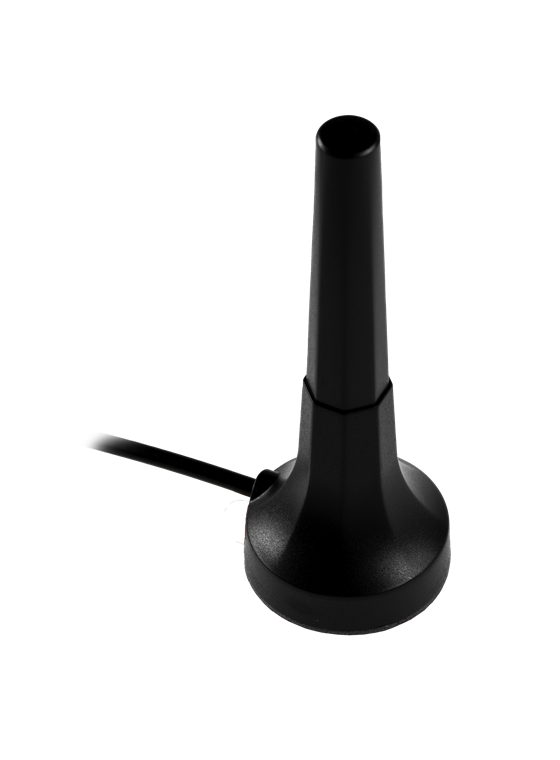

The YECA001L1AH is a 5G external antenna measuring Φ 30mm × 83.2mm. This ultra-wide-band 5G antenna provides broad coverage from 600–6000MHz whilst offering backward-compatibility to support 4G/3G and 2G networks as well as LTE Cat M and narrowband IoT (NB-IoT). The antenna is available with connection via cable lengths from 300–5000mm, terminated with SMA male (center pin) connector. This low profile, adhesive mount omni-directional antenna, ideal for applications where the antenna is required to be discreet, is easy to install with maximum durability assured thanks to its IP67 rated and ASA enclosure. It is compatible with Quectel’s 5G series modules.

It allows constant and reliable transmission and reception due to its omni-directional gain across all frequency bands. The YECA001L1AH is designed as a monopole antenna, which offers high efficiency in all working bands. It is a perfect antenna product for customers that desire highest performance. This high-efficiency, high-gain omni-directional antenna is ideally suited for high-speed video, real-time streaming, high-capacity MIMO networks and public transportation. It is suitable for outdoor and indoor applications due to its robust UV resistant ASA enclosure, which meets UL 746C f1.

Typical applications include high speed video, real-time streaming, high-capacity MIMO networks and public transportation.
