YFOA004AA LPWA/ISM adhesive mount FPC + cable PIFA embedded antenna
- Frequency band: 410-470MHz
- Dimensions: 100mm × 20mm
- Cable length: 100mm
- Efficiency: up to 53.86%
Have a question? Contact us
Key features
- Optimized for ISM networks
- Adhesive mount
- IPEX I connector
- FPC form factor
Overview

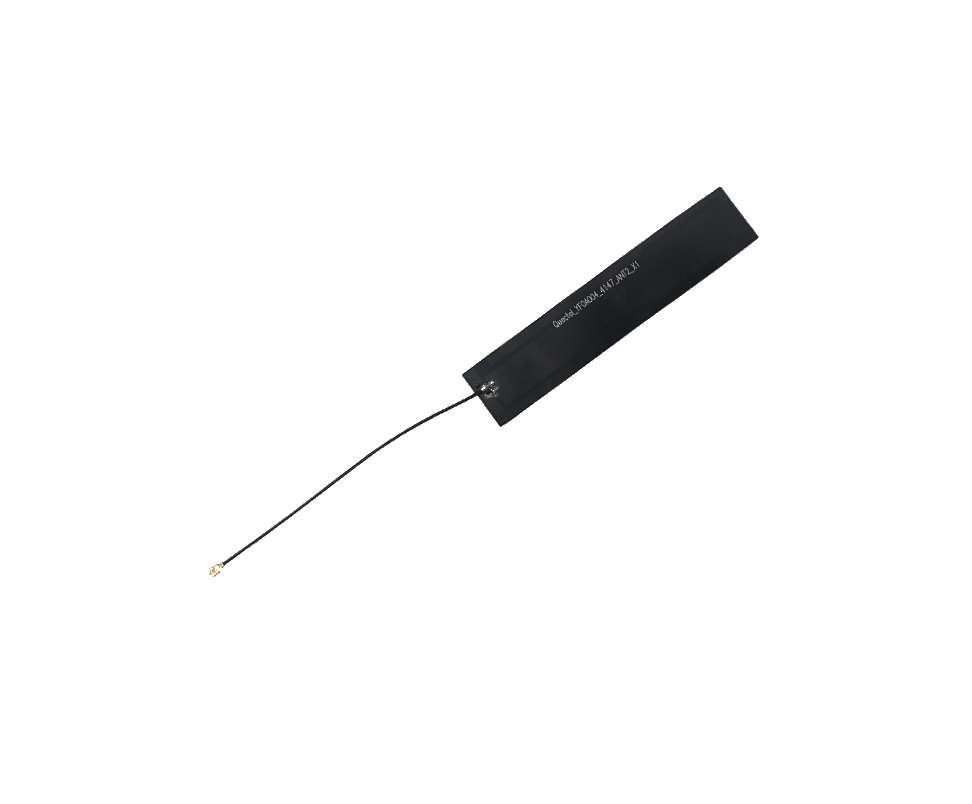

The YFOA004AA is a LoRa FPC antenna measuring 120mm × 20mm. This LoRa antenna provides coverage from 410–470MHz. The antenna has a 100mm cable, terminated with IPEX MHF 1 connector, and is available with customized cable lengths and connectors. Ideal for applications where the antenna is required to be mounted inside, this adhesive mount omni-directional antenna is easy to install thanks to its flexible material. It is compatible with Quectel’s ISM Series modules.
It allows constant and reliable transmission and reception due to its omni-directional gain across all frequency bands. The YFOA004AA is designed as a monopole antenna, which is ground independent to offer high efficiency in many different mounting scenarios. It is the perfect antenna product for customers that desire the highest performance. This high-efficiency omni-directional antenna is ideally suited for medical devices, smart home, smart metering, industrial manufacture, remote monitoring and telematics, and many other IoT devices.
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
