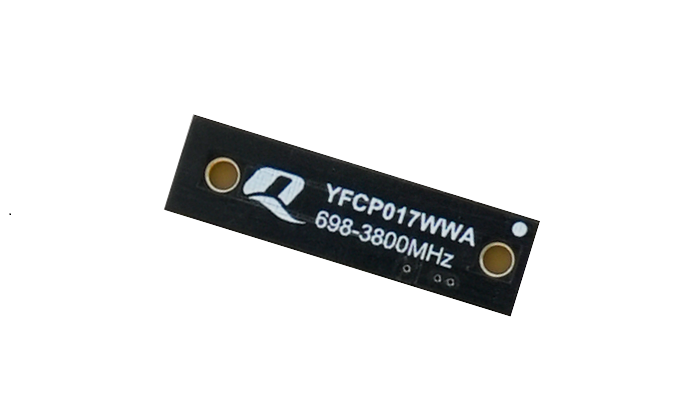

YFCP017WWA 4G SMT mount PCB chip IFA embedded antenna
- Frequency band: 698–960MHz, 1710–2690MHz, 3300-3800MHz
- Efficiency: up to 60.52% (on 140mm × 36mm EVB)
- Dimensions: 25mm × 7mm × 3mm
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for 4G networks
- High efficiency
- SMD mount
Overview
The Quectel YFCP0017WWA is a compact form factor SMT mount PCB antenna for 4G applications. Due to its dimensions of 25mm × 7mm × 3mm, it is designed for applications with very small space requirements such as smart metering, remote monitoring, vehicle tracking and telematics, and many other IoT devices. YFCP0017WWA is a ground-dependent monopole antenna and uses main PCB as its ground plane. It is delivered on tape and reel.
The YFCP0017WWA is a PCB antenna, which can be mounted on terminals in super compact spaces. Despite this small factor, it has up to 60.52% efficiency in working bands. This antenna is developed on a 140mm × 36mm evaluation board. If the devices have different ground sizes, a matching circuit can be used to tune the resonant frequency correctly. We also offer gerber files, 2D and 3D documents for PCB layout. The YFCP0017WWA allows high efficiency, stable signal transmission and reception for 4G working bands in 698–960MHz, 1710–2690MHz, 3300-3800MHz. This product is RoHS and REACH compliant. Typical applications include asset tracking, smart metering, fleet management, and IoT sensors and modules.
