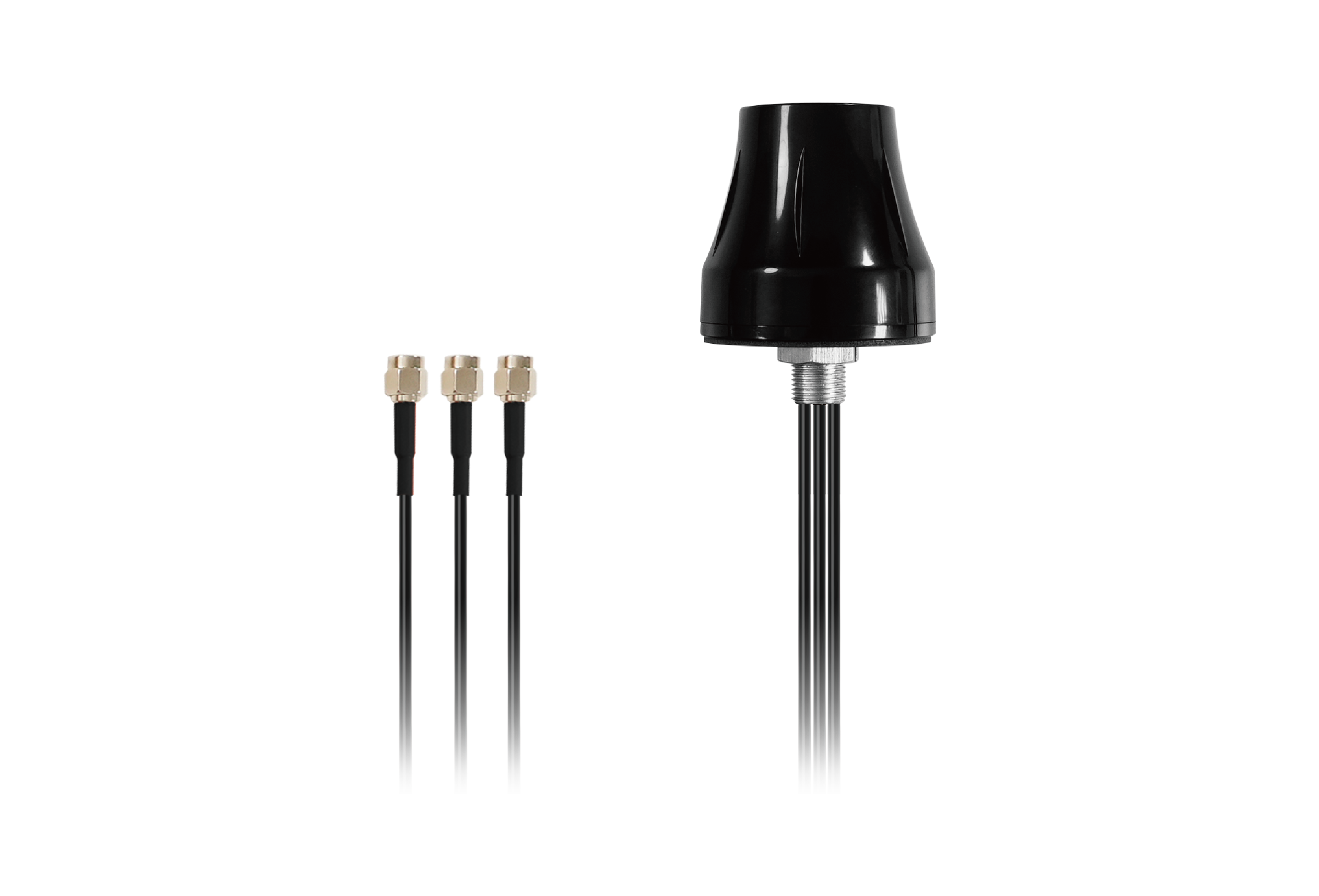

YEMN303J1AM 5G/Wi-Fi/GNSS 3-in-1 screw mount combo external antenna

Overview

The YEMN303J1AM is a 5G, Wi-Fi, and GNSS 3-in-1 antenna measuring Φ 50mm x 48mm. This ultra-wide-band 5G, Wi-Fi, and GNSS antenna provides broad coverage from 1559–1606MHz, 600–960MHz, 1700–2690MHz, 3300–6000MHz, 2400–2500MHz, 5150–5850MHz, 5925–7125MHz, 1559–1606MHz whilst offering backward-compatibility to support 3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). The antenna is available as a screw mount omni-directional antenna. Ideal for applications where the antenna is required to be discrete, it is easy to install, with maximum durability and suitability for use in harsh outdoor environments assured thanks to its IP67 rated, UV-resistant and UL 94 HB flame rated enclosure. It is compatible with Quectel’s RM520x Series modules.

The YEMN303J1AM has 1 x 5G antenna, 1 x Wi-Fi antenna and 1 x GNSS L1 antenna. It allows high efficiency, stable signal transmission and reception for active GNSS from 1559-1606MHz, and 5G bands from 600–960MHz,1700–2690MHz, 3300–6000MHz, Wi-Fi bands from 2400–2500MHz, 5150–5850MHz, 5925–7125MHz. In the meantime, this product also offers high isolation between antennas to avoid self-interference. All in all, this unique product is designed to provide stable and high-speed data connection to 5G, Wi-Fi, and GNSS applications. The YEMN303J1AM can be used in harsh environments thanks to its robust Impact Protection Rating (IK08) and flame resistant (UL 94 HB) enclosure.

Typical applications include:

• Public safety
• HD video streaming
• Utilities and smart cities
• Fleet management
• Automotive vehicle tracking
