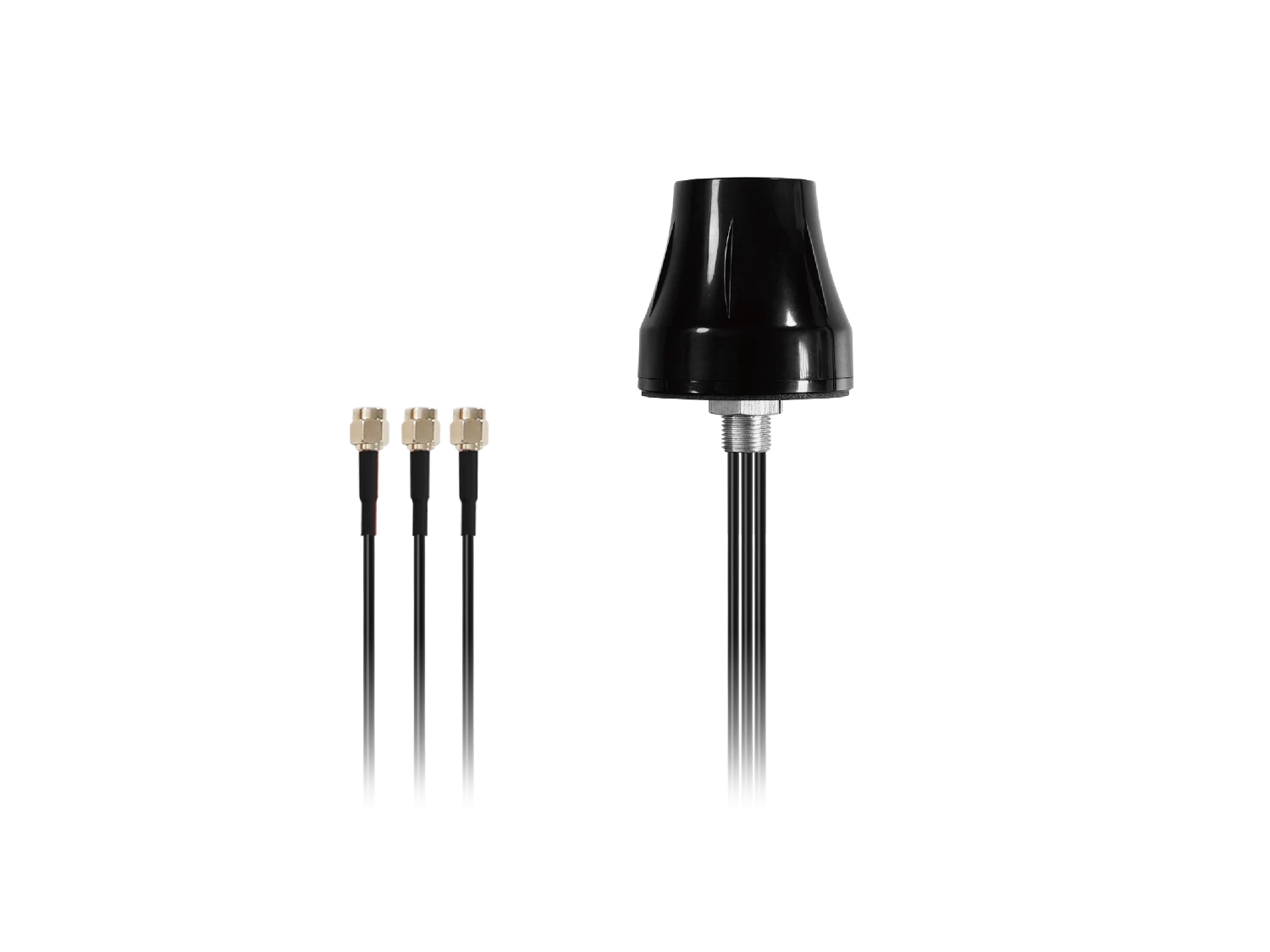

YEMN303J1BM 5G/Wi-Fi/GNSS 3-in-1 screw mount combo antenna

Overview

The YEMN303J1BM is a 5G, Wi-Fi, and GNSS 3-in-1 antenna measuring Φ 50 mm × 48 mm. This ultra-wide-band 5G, Wi-Fi, and GNSS antenna provides broad coverage from 1559–1606 MHz, 600–960 MHz, 1700–2690 MHz, 3300–6000 MHz, 2400–2500 MHz, 5150–5850 MHz, 5925–7125 MHz, 1559–1606 MHz whilst offering backward-compatibility to support 3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). The antenna, available as a screw-mount omnidirectional antenna, ideal for applications where the antenna is required to be discrete, is easy to install, with maximum durability and suitability for use in harsh outdoor environments assured thanks to its IP67-rated, UV-resistant, and UL 94 HB flame rated enclosure. It is compatible with Quectel’s RM520x Series modules.

The YEMN303J1BM has 1 × 5G antenna, 1 × Wi-Fi antenna, and 1 × GNSS L1 antenna. It allows high-efficiency, stable signal transmission and reception for active GNSS from 1559–1606 MHz, and 5G bands from 600–960 MHz,1700–2690 MHz, 3300–6000 MHz, Wi-Fi bands from 2400–2500 MHz, 5150–5850 MHz, 5925–7125 MHz. In the meantime, this product also offers high isolation between antennas to avoid self-interference. All in all, this unique product is designed to provide stable and high-speed data connection to 5G, Wi-Fi, and GNSS applications. The YEMN303J1BM can be used in harsh environments thanks to its robust IK08 impact protection rating and flame-resistant UL 94 HB enclosure.

Typical applications include:

• Public safety
• HD video streaming
• Utilities and smart cities
• Fleet management
• Automotive vehicle tracking
