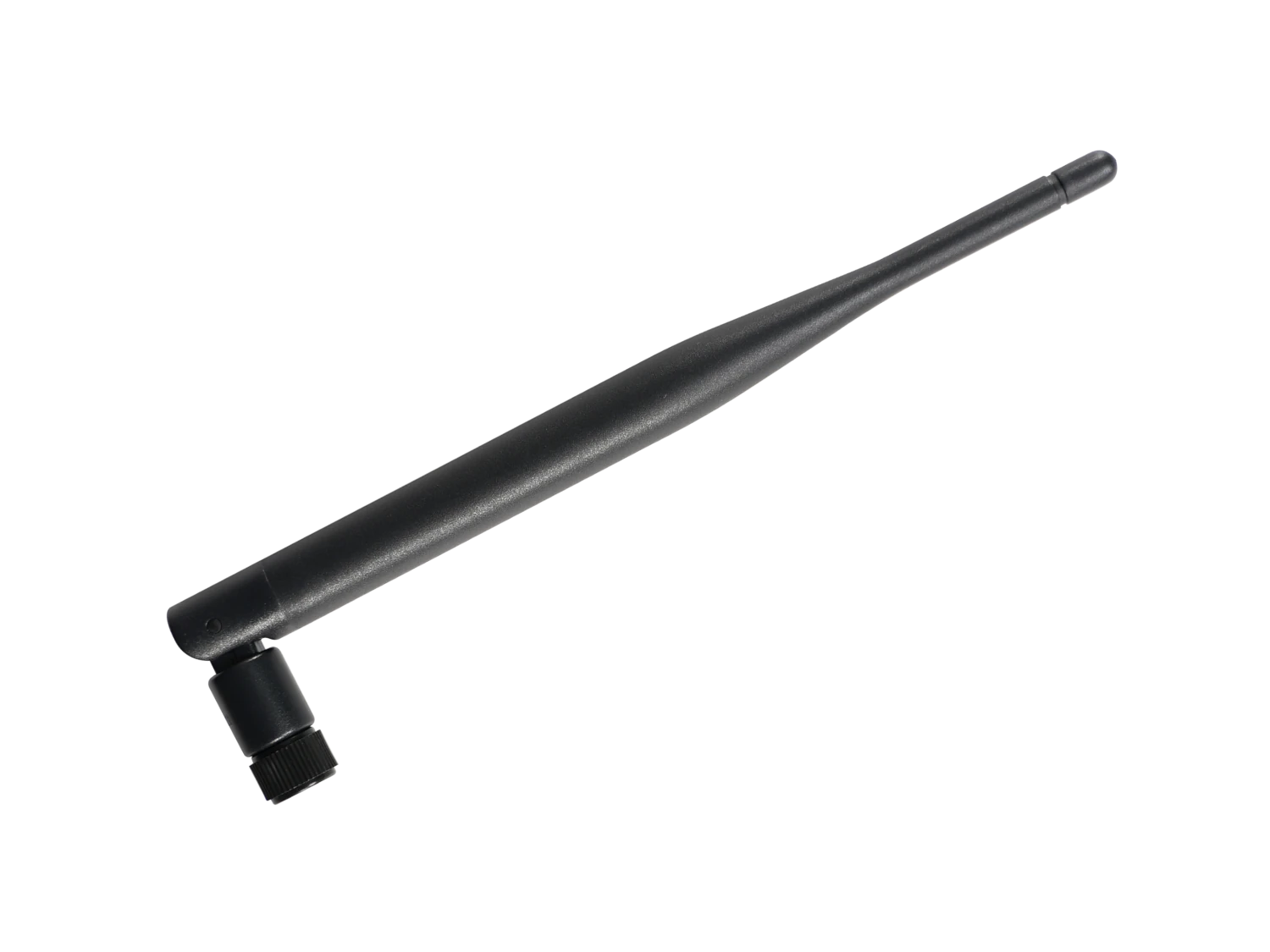

YEIN002AA LPWA/ISM terminal mount rubber monopole external antenna
- Frequency band: 863–928 MHz
- Dimensions: Ф 13 mm × 195 mm
- Efficiency: up to 80 %
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for ISM networks
- Terminal mount
- SMA male connector
Overview
The YEIN002AA is an ISM external antenna measuring Ф 13 mm × 195 mm. This ultra-wide-band ISM antenna provides broad coverage from 863–928 MHz. The antenna is terminated with an SMA male connector. This low-profile, terminal–mount omnidirectional antenna, ideal for applications where the antenna is required to be discrete, is easy to install, with maximum durability assured thanks to its PC + PBT + TPEE enclosure. It is compatible with Quectel’s ISM Series modules.
The antenna is designed as monopole type to work with various GND plane sizes or in free space, for ease of integration with a hinged SMA male connector to achieve the optimum position. The hinged structure helps to avoid other antennas or objects by rotating to different directions when mounted on terminals. This omnidirectional antenna is ideally suited for security alerts, wireless data transmission, automated manufacturing, and many other IoT devices.
Typical applications include:
- Security alerts
- Wireless data transmission
- Automated manufacturing
- Industrial IoT
