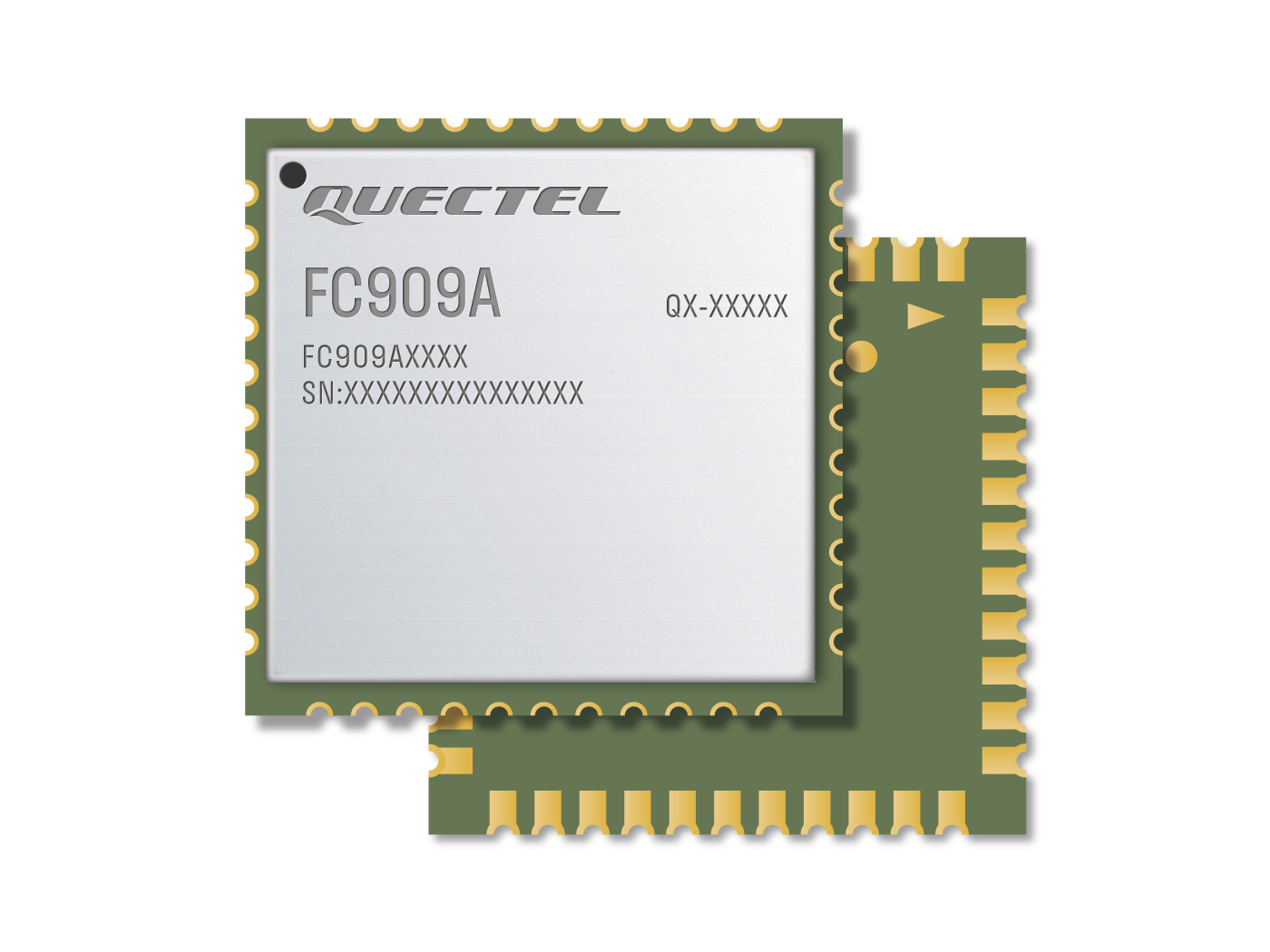

Wi-Fi & Bluetooth FC909A

  • Wi-Fi 4 and BLE (Bluetooth 5.2)
  • Max. data rate of 72Mbps
  • LCC form factor
  • 12mm × 12mm × 1.95mm
  • Operating temperature range of -30°C to +85°C
Please enable JavaScript in your browser to complete this form.

Have a question? Contact us

Key features

  • Single band 2.4 GHz and BLE (Bluetooth 5.2)
  • SDIO 2.0 interface that supports higher data transmission rate and enables lower power consumption
  • Faster time-to-market: simple design minimizes design-in time and development efforts
  • Wide operating temperature range: -30°C to +85°C


FC909A is a high-performance Wi-Fi 4 and BLE (Bluetooth 5.2) module in an LCC package. It can be used to establish WLAN and Bluetooth connections. With an ultra-compact size of 12.0mm × 12.0mm × 1.95mm, FC909A optimizes the size and cost for end-products. Designed with a reliable SDIO 2.0 interface to provide WLAN capability, it also provides an integrated power management unit (PMU), power amplifiers (PAs), and a low noise amplifier to address the needs of mobile devices requiring low power consumption and compact size.

FC909A is a Bluetooth 5.2 compliant module. The Bluetooth transmitter also features a Class 1 power amplifier. FC909A supports extended Synchronous Connection Oriented link (eSCO) for enhanced voice quality by allowing for retransmission of dropped packets and Adaptive Frequency Hopping (AFH) for reducing radio frequency interference.

Surface-mount technology (SMT) makes FC909A an ideal solution for durable and rugged designs. The low profile and small size of LCC package ensure that it can be easily embedded into size-constrained applications and provide reliable connectivity with these applications. The advanced package and the laser-engraved label with better heat dissipation and indelible markings allow for large-scale automated manufacturing which has strict requirements on cost and efficiency.

Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
