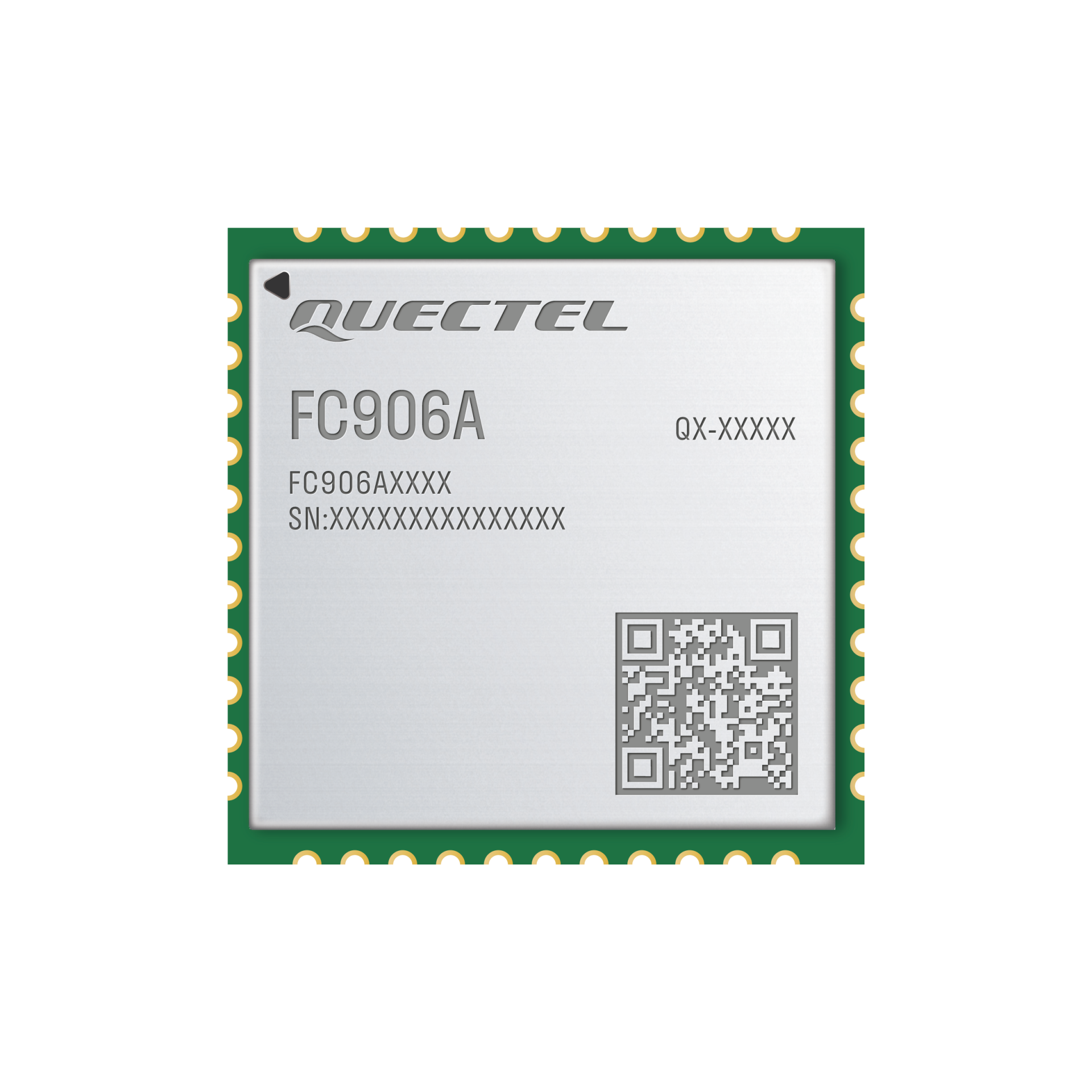

Wi-Fi & Bluetooth FC906A

  • Wi-Fi 5 and BLE (Bluetooth 5.2)
  • Max. data rate of 433.3 Mbps
  • LCC form factor
  • 12 mm × 12 mm × 1.55 mm
  • Operating temperature range of -20°C to +70°C
Please enable JavaScript in your browser to complete this form.

Have a question? Contact us

Key features

  • Single band 2.4 GHz and BLE (Bluetooth 5.2)
  • SDIO 3.0 interface that supports higher data transmission rate and enables lower power consumption
  • Explicit transmit beamforming standardized by IEEE 802.11ac
  • Faster time-to-market: simple design minimizes design-in time and development efforts
  • Wide operating temperature range: -20°C to +70°C


FC906A is a high-performance Wi-Fi 5 and Bluetooth 5.2 module in LCC package. It can be used to establish WLAN and Bluetooth connections. In IEEE 802.11ac mode, the WLAN operation supports rates of MCS 0–MCS 8 in 20 MHz channel and MCS 0–MCS 9 in 40MHz and 80MHz channels. With 256QAM supported, it delivers maximum data rate up to 433.3 Mbps. All rates specified in IEEE 802.11a/b/g/n are supported. Designed with a reliable SDIO 3.0 interface to provide WLAN capability, FC906A also includes 2.4GHz and 5GHz transmit power amplifiers and receive low noise amplifiers.

FC906A is Bluetooth 5.2 compliant. The Bluetooth transmitter features a Class 1 power amplifier. FC906A supports Extended Synchronous Connection Oriented link (eSCO) for enhanced voice quality by allowing for retransmission of dropped packets, and Adaptive Frequency Hopping (AFH) for reducing radio frequency interference.

With an ultra-compact size of 12.0 mm × 12.0 mm × 1.55 mm, FC906A optimizes the size and cost for end-products, which fully meets the demands of size-sensitive applications. Surface-mount Technology (SMT) makes FC906A an ideal solution for durable and rugged designs. The low profile and small size of LCC package ensure that FC906A can be easily embedded into size-constrained applications and provide reliable connectivity with these applications.

The advanced package and the laser-engraved label with better heat dissipation and indelible markings allow for large-scale automated manufacturing that has strict requirements on cost and efficiency. Coupled with its compact size and wide operating temperature range, FC906A can meet various needs of commercial and industrial applications.

Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
