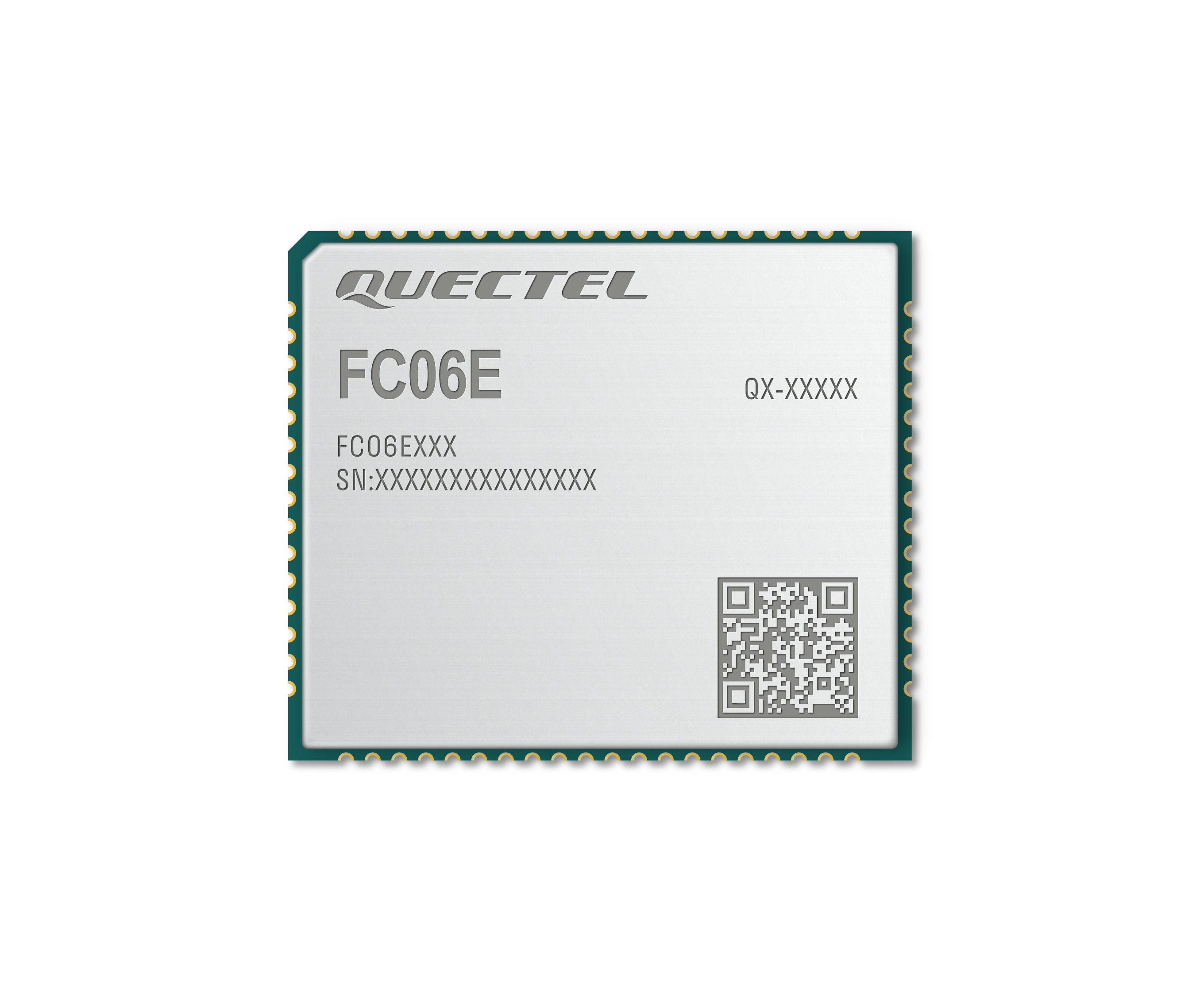

# Wi-Fi & Bluetooth FC06E

## Summary
- Wi-Fi 5 and Bluetooth 5.3
- Max. data rate of 1774.5 Mbps
- LCC form factor
- 25.5 mm × 22.0 mm × 2.25 mm
- Operating temperature range of -30°C to +75°C

## Key features
- 2.4GHz and 5GHz Wi-Fi bands and Bluetooth 5.3
- DBS
- PCIe 3.0 interface that supports higher data transmission rate and enables lower power consumption
- Faster time-to-market: simple design minimizes design-in time and development efforts
- Wide operating temperature range: -30°C to +75°C

## Overview
FC06E is a high-performance Wi-Fi 6 and Bluetooth 5.3 LCC module launched by Quectel. It can be used to establish WLAN and Bluetooth connections. Supporting 2 × 2 + 2 × 2 MIMO, it delivers a maximum data rate up to 1774.5 Mbps. With an ultra-compact size of 25.5 mm × 22.0 mm × 2.25 mm, FC06E optimizes the size and cost for end-products, fully meeting the demands of size-sensitive applications.

Surface-mount technology (SMT) makes FC06E an ideal solution for durable and rugged designs. The low profile and small size of LCC package ensure that it can be easily embedded into size-constrained applications to provide reliable connectivity. The advanced package and the laser-engraved label with better heat dissipation and indelible markings allow for large-scale automated manufacturing which has strict requirements on cost and efficiency.

Based on a reliable PCIe 3.0 interface, FC06E achieves low-power and high-speed data transmission. Coupled with its compact size, lower power consumption, wide temperature range, higher transmit power and high reliability, the module can meet the requirements of industrial and consumer goods applications.

## Documentation and resources
- **EVB Kit**
  - [Quectel_List_of_EVB_Applicable_Modules_V1.8](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fc06e%2F) (File Size: 67.56 KB)
  - [Hardware Development Resources](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fc06e%2F)
    - [Quectel_FC06E&FC08E_Reference_Design_V1.1](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fc06e%2F) (File Size: 176.68 KB)
    - [Quectel_FC06E_2D_Dimensions_V1.1](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fc06e%2F) (File Size: 128.77 KB)
    - [Quectel_FC06E_3D_Dimensions_V1.1](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fc06e%2F) (File Size: 574.95 KB)
    - [Quectel_FC06E_Footprint&Part_V1.2](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fc06e%2F) (File Size: 190.83 KB)
    - [Quectel_FC06E_Hardware_Design_V1.4](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fc06e%2F) (File Size: 1.76 MB)

- **User Guide**
  - [Quectel_SR-WF_EVB_User_Guide_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fc06e%2F) (File Size: 1.11 MB)
  - [Quectel_FC06E&FC2x&FC6xE&FC900E&FGE57xQ_Series_Linux_Bluetooth_User_Guide_V1.1](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fc06e%2F) (File Size: 1.06 MB)
  - [Quectel_FC06E&FC2x&FC6xE&FC900E&FGE57xQ_Series_Android_Bluetooth_User_Guide_V2.1](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fc06e%2F) (File Size: 1.53 MB)
