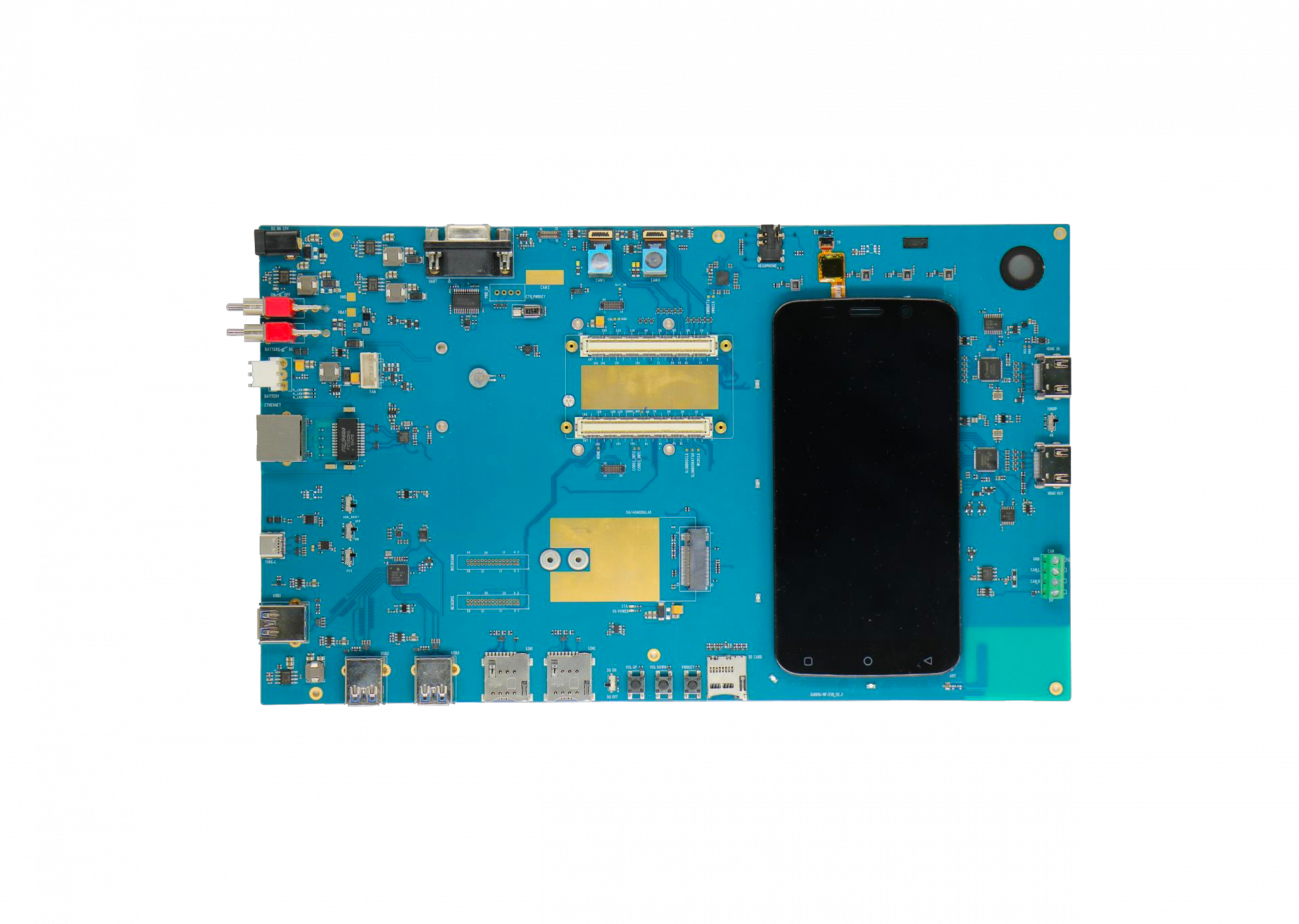

SA800U-WF EVB kit
Key features
- Power supply interfaces
- B2B and FPC connectors
- LCM interface
- Touch panel interface
- Camera interfaces
- HDMI interfaces
- USB interfaces
- Audio interfaces
- (U)SIM interfaces
- UART interface
- CAN interface
- Ethernet interface
- M2 interface
- SD card interface
- Emergency download interface
Overview
Quectel provides designers with SA800U-WF EVB with a size of 288mm × 170mm for developing applications based on applicable modules and basic functions of test modules.
