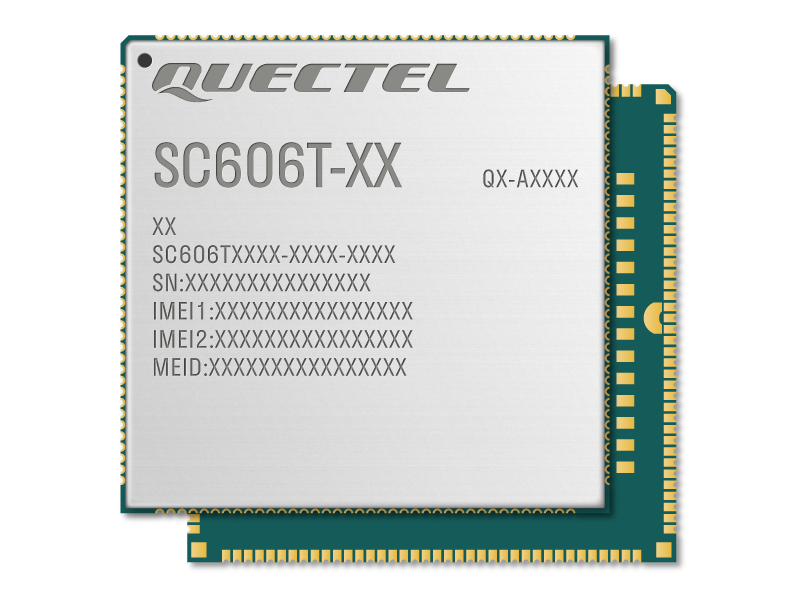

LTE SC606T smart module series
- Multi-mode smart LTE Cat 6 module with Wi-Fi/Bluetooth
- 43.0mm × 44.0mm × 2.85mm
- LCC+LGA package
- Max. data rates of 300Mbps downlink / 50Mbps uplink
- Temperature range of -35 °C to +75 °C
Have a question? Contact us
Key features
- LTE Cat 6 modem supporting 2 × 20 MHz carrier aggregation
- Dual LCDs and dual touch panels for independent display and operation: 1920 × 1200 @ 60fps for primary display and 1920 × 1080 @60fps for secondary display
- Supports recording and playback of 4K videos @30fps
- Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
- Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
Overview
The SC606T series is Quectel’s new generation of multi-mode smart LTE Cat 6 IoT modules with built-in Yocto Linux (Kernel 3.18) OS, in an LCC+LGA package measuring 43.0mm × 44.0mm × 2.85mm. Based on Qualcomm octa-core ARM Cortex-A53 64-bit high-performance processors with built-in Adreno 506 GPU, the modules offer leading performance and various multimedia features, and are ideal for both industrial and consumer applications requiring high data rates and multimedia functions. The series comes in three models: SC606T-NA, SC606T-EM and SC606T-WF.
The SC606T series supports multiple-input multiple-output (MIMO) technology. The use of multiple antennas at the receiver end at the same time and on the same frequency band greatly minimizes errors and optimizes data speeds. These modules also combine high-speed wireless connectivity with embedded multi-constellation and high-sensitivity GNSS (GPS, BeiDou, GLONASS and Galileo) receiver for positioning.
A rich set of interfaces (such as LCM, Camera, Touch Panel, MIC, SPK, UART, USB, I2C, and SPI) allow the modules to serve a wide range of IoT applications including smart POS, smart cash registers, smart home gateways, smart robots, smart wearables, smart safety, PDA & tablets, vending machines, delivery lockers, audio and video recorders, as well as in-car video streaming and entertainment systems.
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
