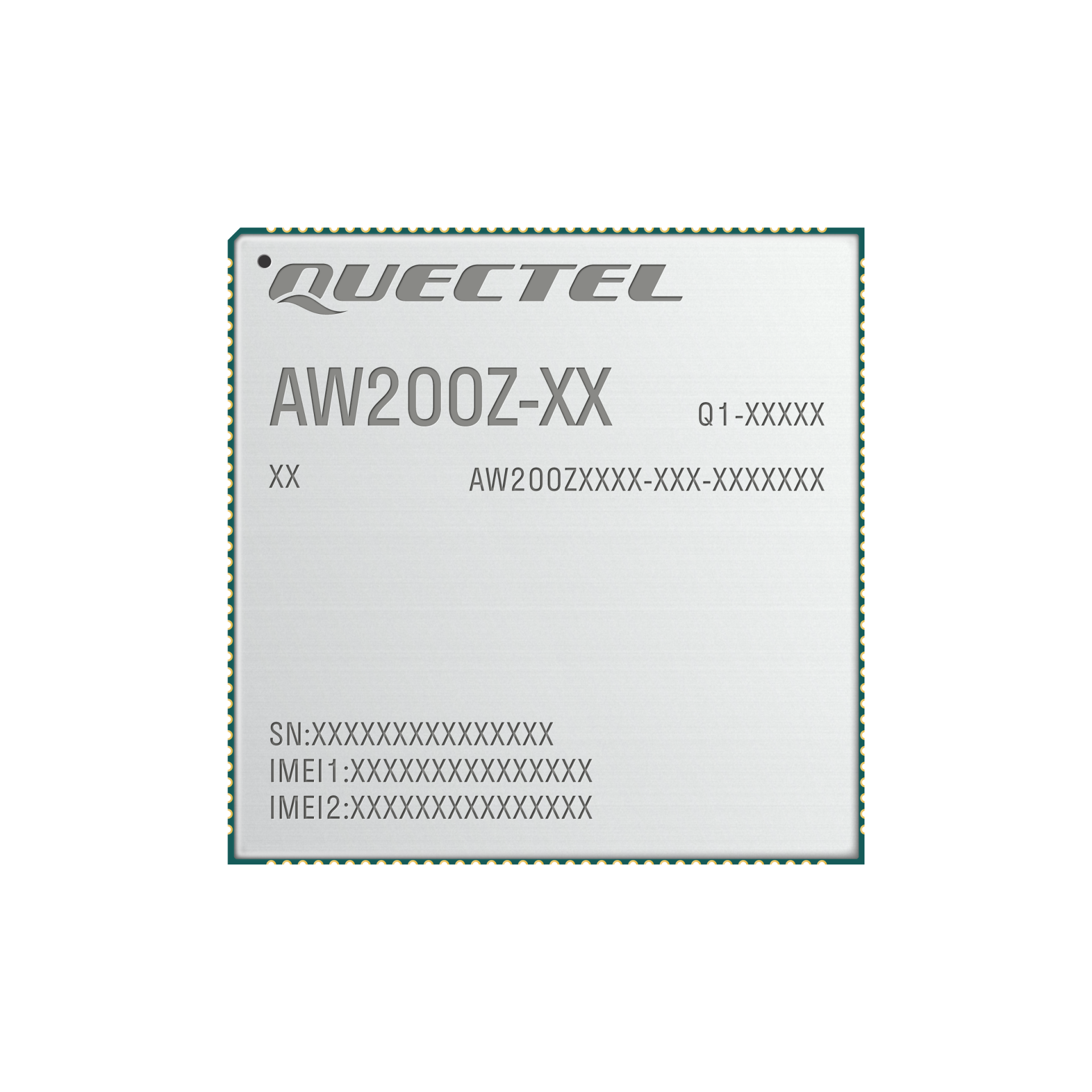

LTE AW200Z smart module series

  • LTE Cat 4 smart module
  • 40.5mm × 40.5mm × 2.85mm
  • 10.3g
  • LCC+LGA package
  • Max. data rates of 150Mbps DL / 50Mbps UL
  • Temperature range of -35°C to +75°C
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • Exceptional application and system performance based on the quad-core Cortex-A53 64-bit processor
  • Enhanced mobile rendering APIs for image and video applications via AdrenoTM 702 GPU
  • Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
  • Dual ISPs and up to 25 MP camera @ 30fps
  • Recording and playback of 1080P videos @ 30fps
  • Multi-constellation GNSS receiver for applications requiring fast and accurate fixes in any environment

Overview

The AW200Z series is Quectel’s new generation of multi-mode LTE Cat 4 smart module. Based on Qualcomm 64-bit quad-core Cortex-A53 processors with built-in AdrenoTM 702 GPU, it is ideal for both industrial and consumer applications requiring high data rates, multimedia functions and long lifetime support. It is also designed with functionality (such as vehicle HAL, B2C, 2-wheeler service, early service etc.) to help meet requirements of the two-wheeler industry.

The AW200Z series supports multiple-input multiple-output (MIMO) technology. The use of multiple antennas at the receiver end on the same frequency band greatly minimizes errors and improves the data speeds. This module also combines high-speed wireless connectivity with embedded multi-constellation and high-sensitivity GNSS receiver supporting GPS, BDS, GLONASS, Galileo, QZSS, SBAS for positioning.

A rich set of interfaces (such as LCM, camera, touch panel, MIC, line out, UART, USB, I2C and SPI) extend the applicability of the module to a wide range of two-wheeler applications.

Product Brochure

Quectel-Product-Brochure-v8.2.pdf

Download

Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
