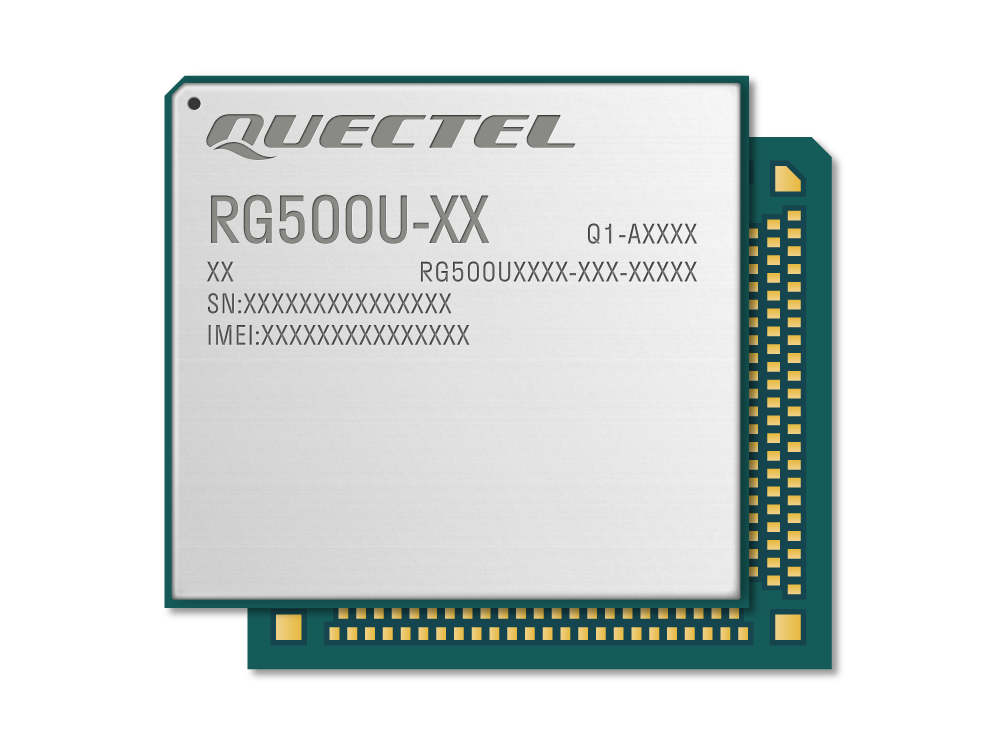

5G RG500U series

  • 5G sub-6GHz LGA module
  • LGA form factor
  • 41mm × 44mm × 2.85mm
  • 12.78g
  • Extended temperature range of -40°C ~ +85°C
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • 5G/LTE-A multi-mode module with LGA form factor, optimized for IoT and eMBB applications
  • Worldwide 5G and LTE-A coverage
  • 5G NSA and SA modes
  • High performance and cost-effective
  • Feature refinements: DFOTA and VoLTE (optional)

Overview

Quectel’s RG500U series is a 5G sub-6GHz LGA module optimized specially for IoT and eMBB applications based on 3GPP Rel-15 technology. It supports both 5G NSA and SA modes, which makes it backward compatible with 4G/3G networks. The RG500U is an industrial-grade module for industrial and commercial applications only.

With a rich set of Internet protocols, integrated with rich communication interfaces such as PCIe, USB, SDIO, UART, SPI, I2C, I2S and GPIOs, RG500U supports a variety of drivers and software functions, and supports VoLTE (optional), VoNR (optional), DFOTA, audio, eSIM* (optional), greatly expanding its applications in the IoT industry.

RG500U can be widely used in vertical industries such as smart energy, internet of vehicles, industrial internet, telemedicine, smart education, high-definition video, smart city, and home entertainment.

Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here

Product Brochure

Quectel-Product-Brochure-V7.7.pdf

Download

Documentation and resources

  • Quectel_RGx00U&RM500U_Series_RF_FTM_Application_Note_V1.0

    363.73 KB

    Quectel_RGx00U&RM500U_Series_Partition_Backup_and_Restoration_Mechanism_Introduction_V1.0

    399.00 KB

    Quectel_RGx00U&RM500U_Series_5G_LAN_Data_Call_Application_Note_V1.0

    445.67 KB

    Quectel_RGx00U&RM500U_Series_DFOTA_Application_Note_V1.1

    386.65 KB

    Quectel_RGx00U&RM500U_Series_Dual_SIM_Dual_Standby_Application_Note_V1.0

    231.76 KB

    Quectel_RGx00U&RM500U_Series_USBnet&Ethernet_Call_Application_Note_V1.0

    424.25 KB

    Quectel_RGx00U&RM500U_Series_TCP(IP)_Application_Note_V1.0

    431.71 KB

    Quectel_RGx00U&RM500U_Series_Sleep_Mode_Application_Note_V1.0

    171.13 KB

    Quectel_RGx00U&RM500U_Series_FTP(S)_Application_Note_V1.0

    436.82 KB

  • Quectel_RGx00U&RM500U_Series_AT_Commands_Manual_V1.0

    1.61 MB

  • Quectel_RG500U_Series_Hardware_Design_V1.1

    2.58 MB

  • Quectel_RGx00U&RM500U_Series_Log_Capture_Guide_V1.0

    2.16 MB

    Quectel_RGx00U&RM500U_Series_Partition_Backup_User_Guide_V1.0

    916.43 KB

    Quectel_RGx00U&RM500U_Series_Software_Thermal_Management_Guide_V1.0

    201.17 KB

    Quectel_RGx00U&RM500U_Series_PCle_Driver_User_Guide_V1.0

    251.34 KB

    Quectel_RGx00U&RM500U_Series_IRIG-B_Time_Synchronization_User_Guide_V1.0

    326.79 KB
