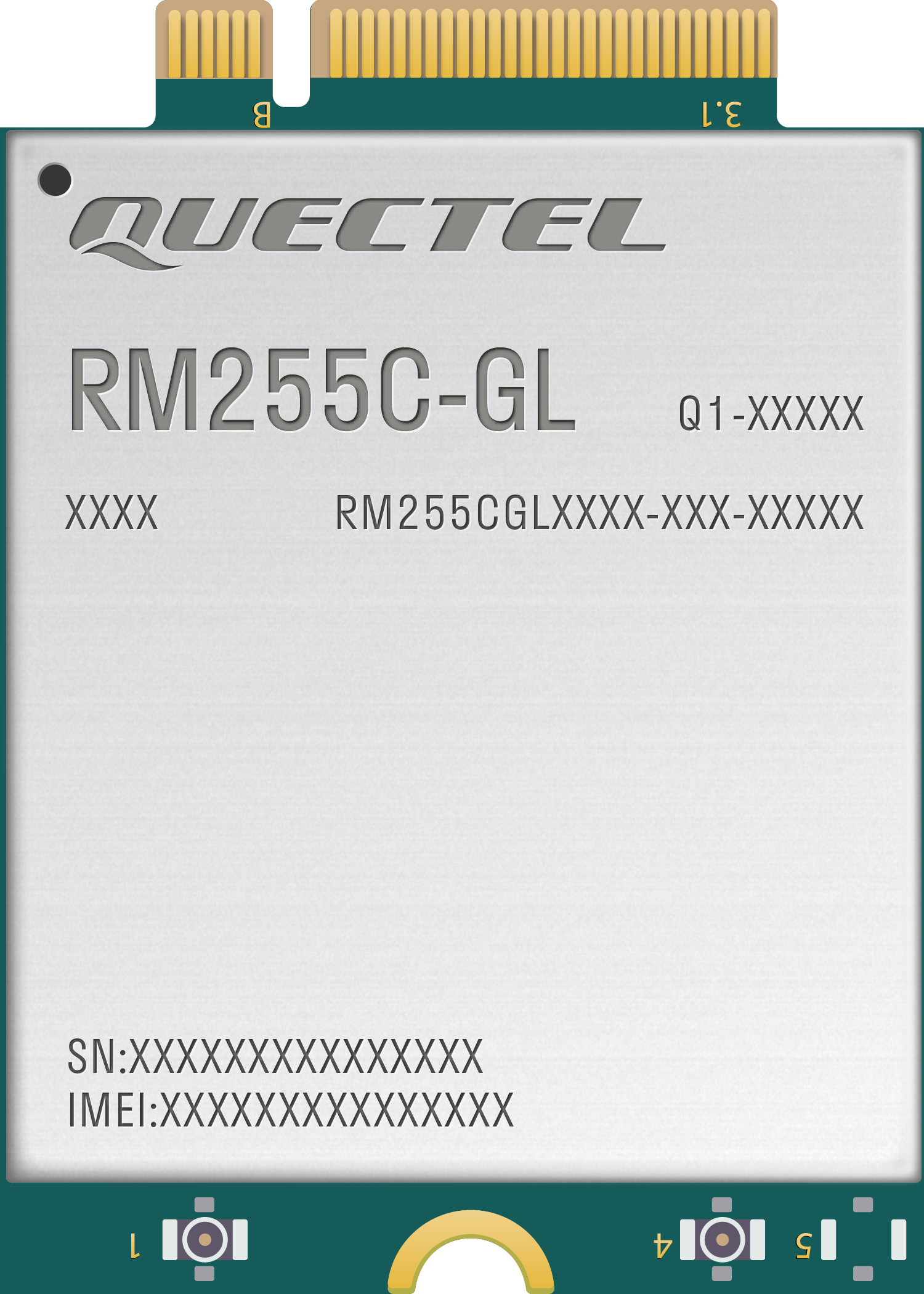

# 5G RedCap RM255C-GL

- 5G RedCap module
- M.2 form factor
- Max. data rates of 223Mbps DL / 123Mbps UL

## Key features
- M.2 form factor, small size
- Worldwide 5G/ LTE coverage
- 5G SA mode
- Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment (Optional)
- Feature refinement: DFOTA

## Overview
Quectel RM255C-GL is a 5G Sub-6 GHz M.2 module. Adopting the 3GPP Rel-17 technology, the module supports a theoretical peak data rate of 223 Mbps in the downlink and 123 Mbps in the uplink. The module supports LTE Cat 4 and 5G Sub-6 GHz SA mode, and is backward compatible with Rel-15 and Rel-16 networks.

With M.2 form factor, It is pin-to-pin compatible with Quectel 5G modules RM5x0N/ RM50xQ, and is pin-to-pin and size compatible with LTE-A Cat 6 module EM06, Cat 12 modules EM12/ EM12xR/ EM120K, Cat 16 module EM160R-GL and 4G module EM05.

RM255C-GL supports Qualcomm® IZat™ location technology Gen 9VT (GPS, GLONASS, BDS, Galileo, QZSS and NaVIC*). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces (USB 2.0, PCIe 2.0, etc.) and abundant functionalities (USB drivers for Windows 10/ 11, Linux and Android) extend the applicability of the module to a wide range of RedCap applications.

Browse our wide range of antennas – download our antenna brochure: [View brochure](https://www2.quectel.com/quectel_antenna_brochure.pdf)

## Product Brochure
Quectel_Product_Brochure_V8.6.pdf
[Download](https://www.quectel.com/content/uploads/2026/05/Quectel_Product_Brochure_V8.6.pdf)

## Documentation and resources
- **AT Commands Manual**
  - [Quectel_RG255C_Series&RM255C-GL_AT_Commands_Manual_V1.1](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2F5g-redcap-rm255c-gl%2F) (File Size: 1.29 MB)

- **Drivers**
  - [Quectel_Android_RIL_Driver_aidl2_V4.7_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2F5g-redcap-rm255c-gl%2F) (File Size: 2.01 MB)
  - [Quectel_Android_RIL_Driver_ndk_V4.0_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2F5g-redcap-rm255c-gl%2F) (File Size: 1.62 MB)
  - [Quectel_Android_RIL_Driver_radio1.6_V4.5_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2F5g-redcap-rm255c-gl%2F) (File Size: 2.39 MB)
  - [Quectel_Android_RIL_Driver_radio1.5_OemHook_V4.0_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2F5g-redcap-rm255c-gl%2F) (File Size: 2.37 MB)
  - [Quectel_Linux_PCIE_MHI_Driver_V1.6_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2F5g-redcap-rm255c-gl%2F) (File Size: 780.61 KB)
  - [Quectel_Android_RIL_Driver_aidl1_V4.7_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2F5g-redcap-rm255c-gl%2F) (File Size: 1.68 MB)

## Quectel_Android_RIL_Driver_aidl3_V4.7_EN

File Size
1.75 MB

## Quectel_Windows_USB_Driver(Q)_NDIS_V2.8_EN

File Size
9.92 MB

## Quectel_RM255C-GL_Hardware_Design_V1.0

File Size
1.91 MB

## Quectel_RM255C-GL_Reference_Design_V1.0

File Size
223.79 KB

## QSwitchPortTool_V1.3_EN

File Size
2.55 MB
