YFVP001WWA UWB SMT mount PCB chip monopole antenna
- Frequency band: 3000–8000MHz
- Dimensions: 8mm × 6mm × 1mm
- Efficiency: up to 84.5%
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Ultra-wideband
- SMD mount
- PCB form factor
Overview

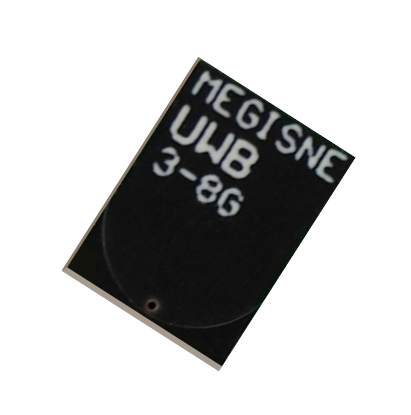

Quectel YFVP001WWA is a compact form factor SMT mount PCB chip antenna for UWB applications. Due to the dimensions of 8mm × 6mm × 1mm, it is designed for very small space requirements for precision surveying and high data rate applications. YFVP001WWA is a ground-dependent monopole antenna and uses main PCB as its ground plane. It is delivered on tape and reel.
YFVP001WWA is a PCB chip antenna, which can be mounted on super compact space requirement terminals. Despite this small factor, it has up to 84.5% efficiency in working bands. This antenna is developed on a 50mm × 25mm evaluation board. If the devices have different ground sizes, matching circuit can be used to tune the resonant frequency correctly. We also offer gerber file, 2D and 3D documents for PCB layout.
YFVP001WWA allows high efficiency, stable signal transmission and reception for UWB working bands in 3000–8000MHz. This product is RoHS and REACH compliant.
Typical applications include: vehicle-mounted radar systems, high data rate applications, and digital wireless communication technology.
