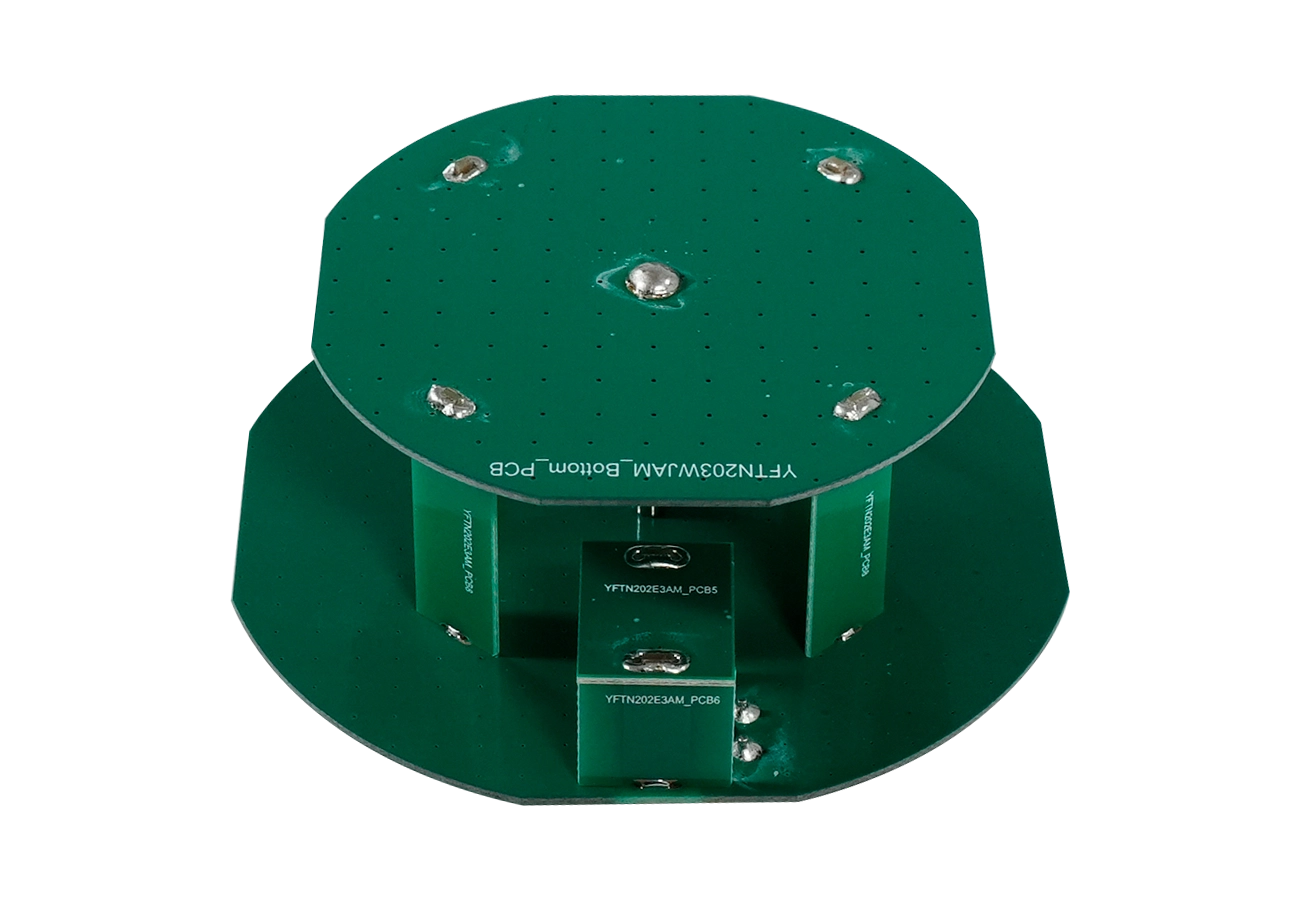

YFTN203WJAM L-band and S-band NTN antenna

  • Frequency band – L-band: 1525–1559MHz, 1626.5–1660.5MHz
  • Frequency band – S-Band: 1980–2010MHz, 2170–2200MHz
  • Peak gain: 5.4 dBi (max)
  • Dimensions: Φ 81.24mm x 31.5mm
  • RoHS and REACH compliant
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • Optimized for non-terrestrial networks
  • Terminal mount
  • MCX (50Ω) connector
  • Peak gain: 5.4dBi (Max)

Overview

The Quectel YFTN203WJAM is a high-performance L-band and S-band satellite antenna designed for reliable NTN (non-terrestrial network) communication. With its compact form factor and robust design, it is ideal for applications requiring stable satellite connectivity in challenging environments.

Key features:

  • Dual-band support:
    • L-band (1525–1559MHz and 1626.5–1660.5MHz)
    • S-band (1980–2010MHz and 2170–2200MHz)
  • Weight: 26.98g (typical)
  • Connector: MCX (50Ω)
  • Mounting options: terminal mount (with customization options such as pin, surface, or magnetic mount)
  • Environmental resilience: operating temperature: -40°C to +85°C
  • Storage temperature: -40°C to +85°C

Performance highlights:

  • Omni-directional radiation pattern for consistent coverage
  • High efficiency across L-band and S-band frequencies, with typical efficiency above 66%
  • Excellent return loss and VSWR performance, ensuring reliable signal transmission
