YFNP001WWB LPWA/ISM SMT mount PCB chip loop embedded antenna
- Frequency band: 855–880MHz
- Dimensions: 10mm × 3.2mm × 0.6mm
- Efficiency: up to 45.62%
- RoHS compliant
Have a question? Contact us
Key features
- Optimized for ISM networks
- High efficiency
- SMD mount
Overview

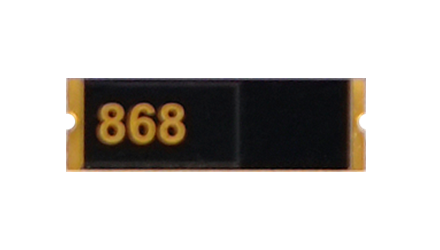

The Quectel YFNP001WWB is a compact form factor SMT mount PCB antenna for ISM applications. Due to dimensions of 10mm × 3.2mm × 0.6mm, it is designed for applications with very small space requirements much as medical devices, smart monitoring, and smart home. The YFNP001WWB is a ground-dependent loop antenna and uses main PCB as its ground plane. It is delivered on tape and reel.
The YFNP001WWB is a PCB antenna, which can be mounted on terminals in super compact spaces. Despite this small factor, it has up to 45.62% efficiency in working bands. This antenna is developed on a 90mm × 45mm evaluation board. If the devices have different ground sizes, a matching circuit can be used to tune the resonant frequency correctly. We also offer gerber file, 2D and 3D documents for PCB layout.
The YFNP001WWB allows high efficiency, stable signal transmission and reception for ISM working bands in 855–880MHz. This product is RoHS compliant.
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
Product Brochure
