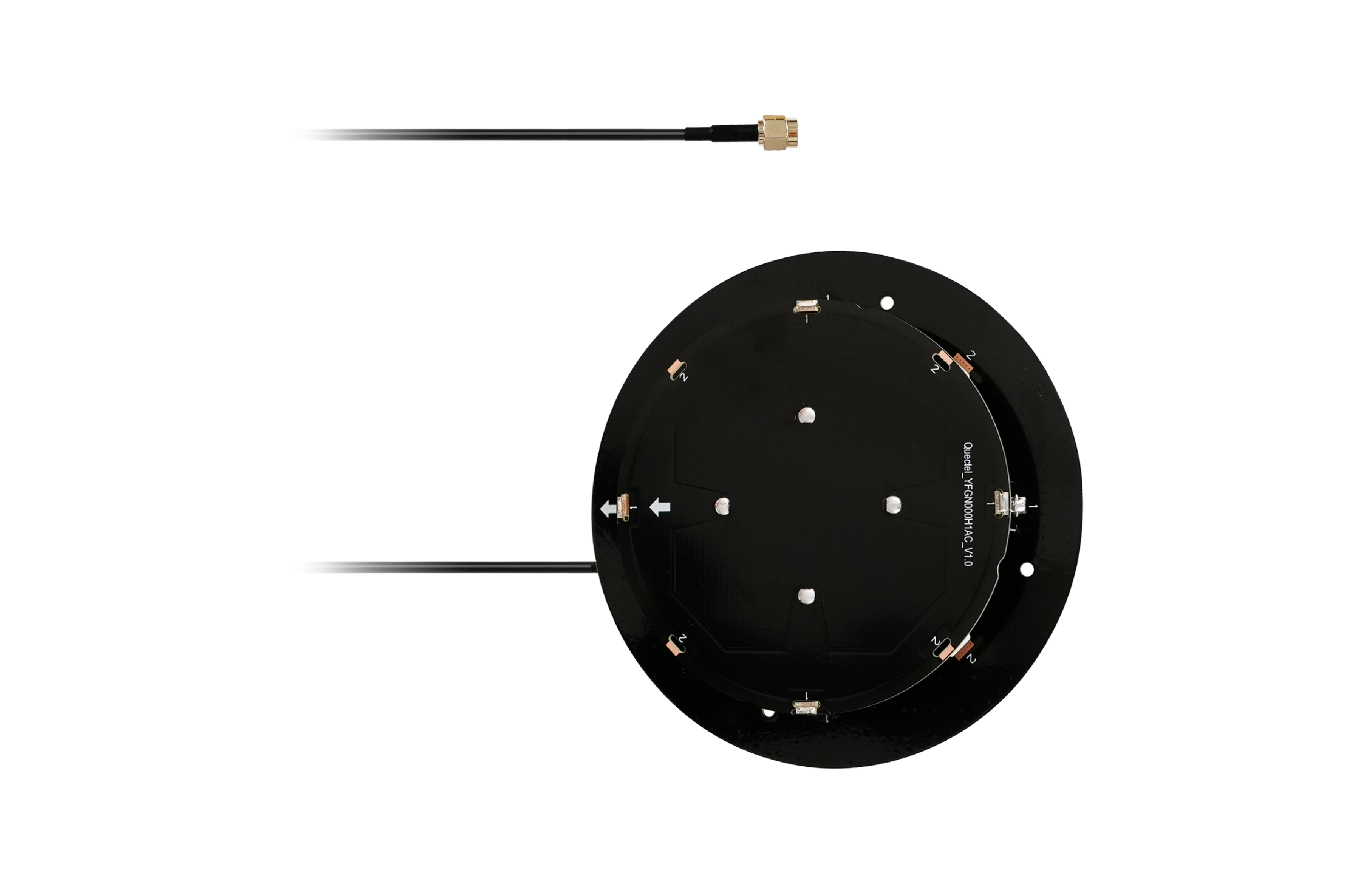

YFGN000H1CC GNSS full band screw mount air dielectric + cable active embedded antenna
- Frequency band: 1164–1300MHz, 1559–1606MHz
- Dimensions: Φ 122mm x 22.5mm
- RoHS compliant
- LNA gain: 35 ±4dB
Have a question? Contact us
Key features
- Optimized for GNSS networks
- Screw mount
- SMA male connector
- RG174 cable
- Low VSWR and high efficiency minimize signal loss
- Low axial ratio ensures consistent circular polarization for precision applications
- 3D radiation pattern optimization for stable performance across elevations
Overview
Multi-GNSS support: Covers all major global navigation systems, including BDS-3 (B1C) and QZSS, ensuring compatibility worldwide.
High-gain LNA: Delivers 35 ±4dB gain with a low noise figure (≤ 1.5dB), ideal for weak-signal environments like urban canyons or dense foliage.
Superior RF performance: Features RHCP polarization, directional radiation pattern, and outstanding peak gain (up to 5.7dBi) for reliable signal acquisition.
Robust design: Φ 122mm x 22.5mm housing with screw mounting, suitable for vehicular or fixed installations.
Environmental resilience: Operates in -40°C to +85°C temperatures and complies with RoHS standards.
Target applications:
- Autonomous vehicles: Provides centimeter-level accuracy for ADAS and navigation.
- Geodetic surveying: Supports RTK/PPK systems with multi-frequency compatibility.
- Maritime: Ensures reliable positioning for vessels with L-band support.
- Military/defense: Resilient performance in harsh environments.
- Telematics and fleet management: Enables real-time tracking for logistics and heavy equipment
