YFGC009WWC GNSS L1 SMT mount ceramic patch passive embedded antenna
- Frequency band: 1559–1606MHz
- Dimensions: 25mm x 25mm x 4mm
- Efficiency: up to 74.56%
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for GNSS L1 networks
- Ceramic SMT mount
Overview

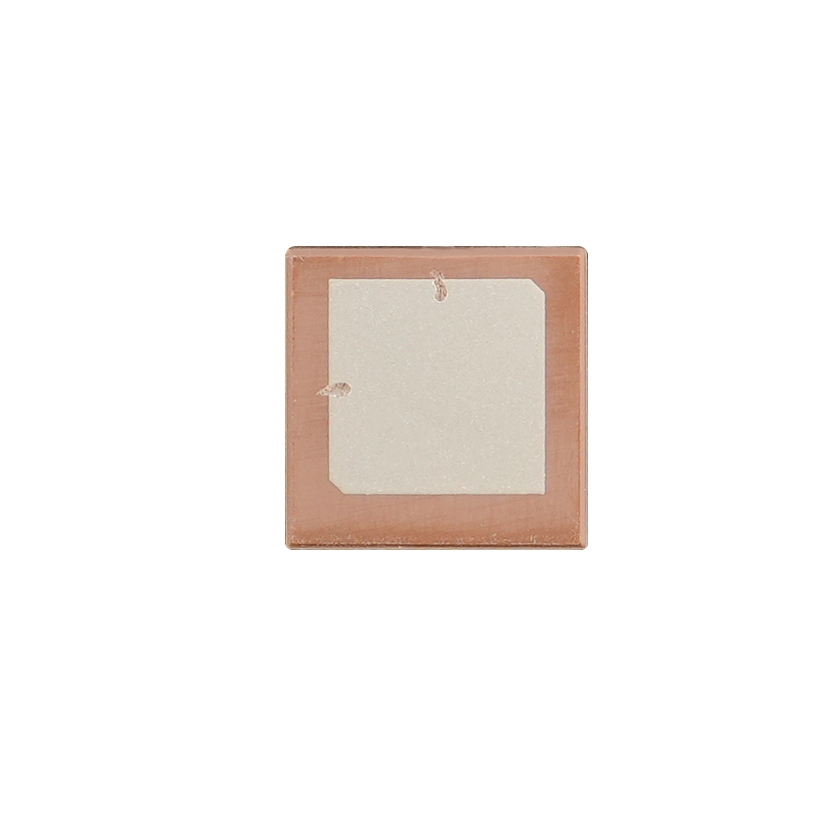

The YFGC009WWC is a high-performance GNSS SMT mount ceramic patch passive embedded antenna, engineered for precise positioning. Operating in the 1559–1606MHz range with 50Ω impedance and RHCP polarization, it supports key bands like GPS L1, GLONASS G1, GALILEO E1, BDS B1I/B1C, and QZSS L1.
With dimensions of 25mm x 25mm x 4mm and a typical weight of 9.4g, it offers a balance of size and performance. Boasting efficiency up to 74.56%, peak gain of 3.9dBi, and a directional radiation pattern, it ensures strong signal reception.
RoHS and REACH compliant, it meets strict environmental standards. It features a recommended 70mm x 70mm PCB footprint and Sn/Ag/Cu reflow soldering profile for easy integration. Packaged in blister trays (40 pcs) and cartons (800 pcs), it suits mass deployment, making it ideal for GNSS-enabled devices needing reliable positioning.
