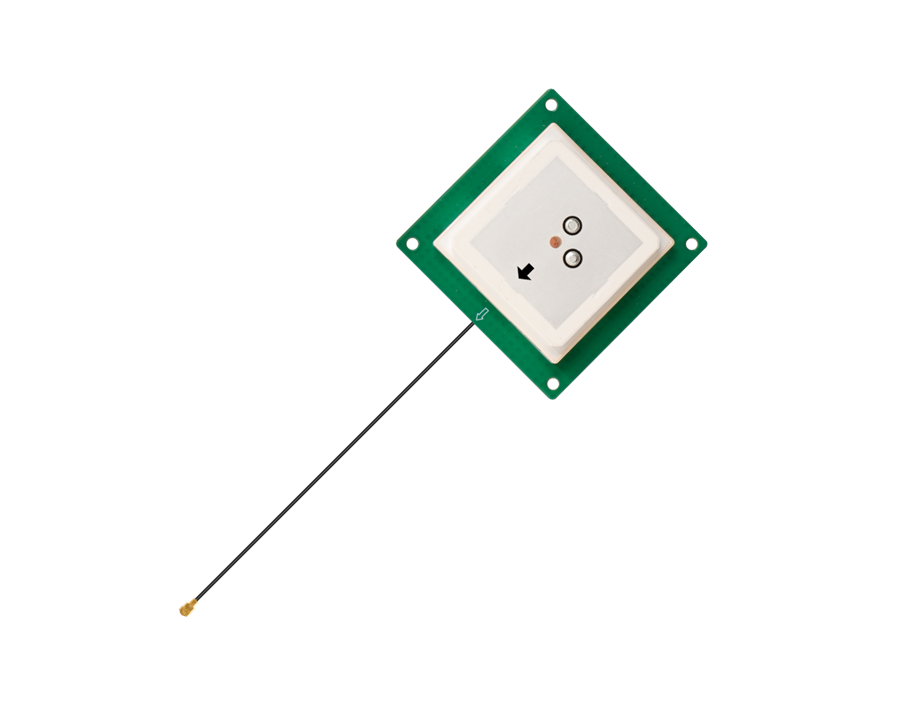

YFGA245E3BM GNSS L1 + L2 screw mount ceramic patch + cable active embedded antenna
- Frequency band: 1217–1238MHz, 1559–1606MHz
- Dimensions: 59mm x 59mm x 14.2mm
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for GNSS L1/L2
- Screw/buckle mount
- IPEX MHF 1 connector
- LNA gain: 17 ±3dB
Overview
The YFGA245E3BM is a high-performance active embedded GNSS antenna designed for precise positioning. Covering frequency bands 1217–1238MHz and 1559–1606MHz, it supports multiple GNSS systems including GPS, GLONASS, Galileo, BDS, QZSS, and IRNSS.
With dimensions of 59mm x 59mm x 14.2mm and a weight of 74.6g, it features a screw/buckle mounting design for easy installation. The antenna boasts RHCP polarization, 50Ω impedance, and a directional radiation pattern. Its LNA gain of 17±3dB and noise figure of ≤ 3dB ensure strong signal amplification with minimal interference.
Operating efficiently in -40°C to +85°C, it meets RoHS and REACH standards. Equipped with a 100mm black Φ 1.13 RF cable and IPEX MHF 1 connector, it delivers reliable performance in various environments, making it ideal for automotive, industrial, and IoT positioning applications.
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
