YFGA245E3AM GNSS L1 + L5 screw mount ceramic patch + cable active embedded antenna
- Frequency band: 1164–1189MHz, 1559–1606MHz
- Dimensions: 59mm x 59mm x 14.2mm
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for GNSS L1/L5
- Screw/buckle mount
- IPEX MHF 1 connector
- LNA gain: 17 ±3dB
Overview
The YFGA245E3AM is a high-performance GNSS active embedded antenna designed for precise positioning. Operating across frequency bands 1164–1189MHz and 1559–1606MHz, it supports multiple GNSS systems including GPS, GLONASS, Galileo, BDS, QZSS, and IRNSS.

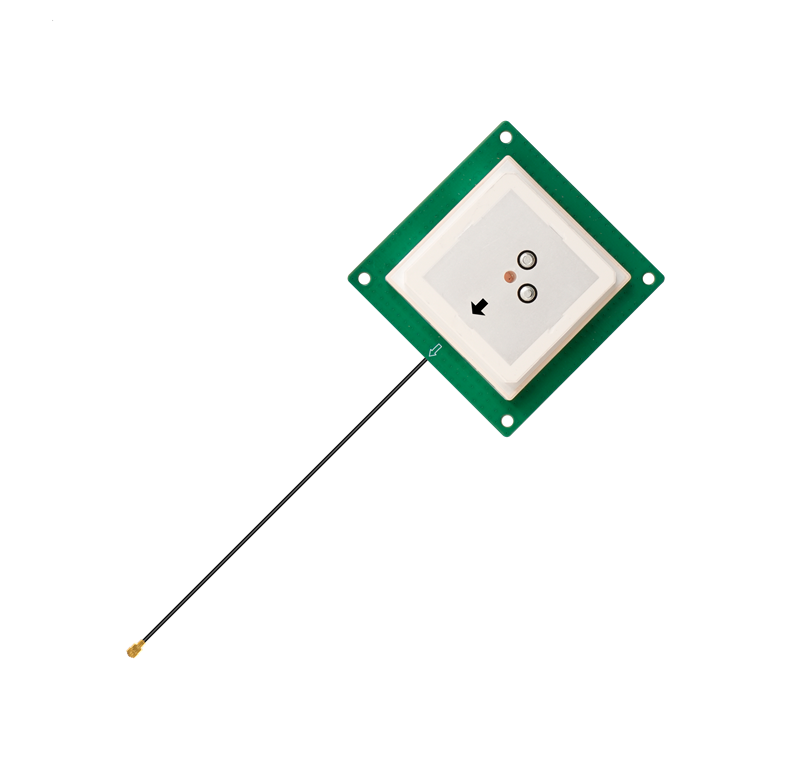

With dimensions of 59mm x 59mm x 14.2mm and a screw-mount design, it combines a ceramic patch, PCB, and 100mm black RF cable with an IPEX MHF 1 connector, weighing typically 74.6g.
Featuring RHCP polarization and a directional radiation pattern, it delivers strong performance: 17±3dB LNA gain, ≤ 2.5dB noise figure, and up to 74% efficiency (at 1575MHz). It ensures reliable operation in harsh environments, with a -40°C to +85°C temperature range, and is RoHS compliant. Ideal for applications demanding accurate, stable positioning.
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
