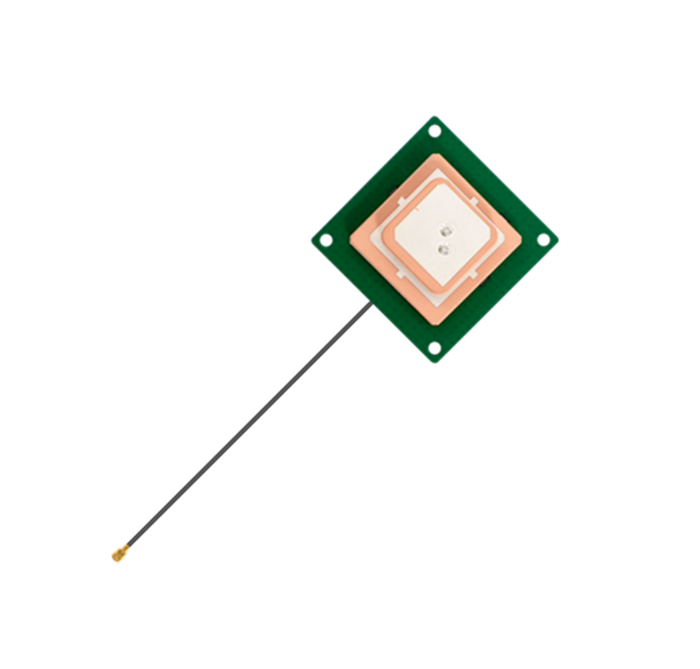

YFGA233E3AM GNSS L1 + L5 screw mount ceramic patch + cable active embedded antenna
- Frequency band: 1164–1189MHz, 1559–1606MHz
- Dimensions: 50mm x 50mm x 12.2mm
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for GNSS L1/L5
- Screw/buckle mount
- IPEX/ MHF 1 connector
Overview
The YFGA233E3AM is a high-performance, multi-band active GNSS antenna designed for demanding positioning applications. It features a robust screw-mount ceramic patch design and supports a wide frequency range covering both L5 and L1 bands (1164–1189MHz and 1559–1606MHz).
Key features:
- Dimensions: 50mm x 50mm x 12.2mm
- LNA gain: 17 ±3dB (at 3-5V) / 15 ±3dB (at 1.8V)
- Noise figure: ≤ 2.5dB
- Peak gain: Up to 1.18dBi (at 1575MHz)
- Radiation efficiency: Up to 59.7% (at 1575MHz)
- Polarization: RHCP (Right-Hand Circular Polarization)
- Axial ratio: As low as 0.68dB (at 1602MHz)
Supported GNSS systems and bands:
- GPS: L1, L5
- GLONASS: G1
- Galileo: E1, E5a
- BDS: B1I, B1C, B2a
- QZSS: L1, L5
- IRNSS: L5
Electrical and environmental specifications:
- Operating voltage: 1.8–5V
- Current consumption: 16.5 ±4mA (at 3-5V) / 11.5 ±3mA (at 1.8V)
- Operating temperature: -40°C to +85°C
- RoHS compliant: Yes
Mechanical and connection details:
- Connector: IPEX MHF1
- Cable: Φ 1.13mm, 100mm length, black
- Mounting type: Screw
- Weight: Typ. 35.8g
