YFGA025E3DM GNSS L1 buckle mount ceramic patch + cable passive embedded antenna
- Frequency band: 1559–1606MHz
- Dimensions: 25mm x 25mm x 7.5mm
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for GNSS L1
- Adhesive/buckle mount
- IPEX MHF 1 connector
- Peak gain: 0.68dBi
Overview

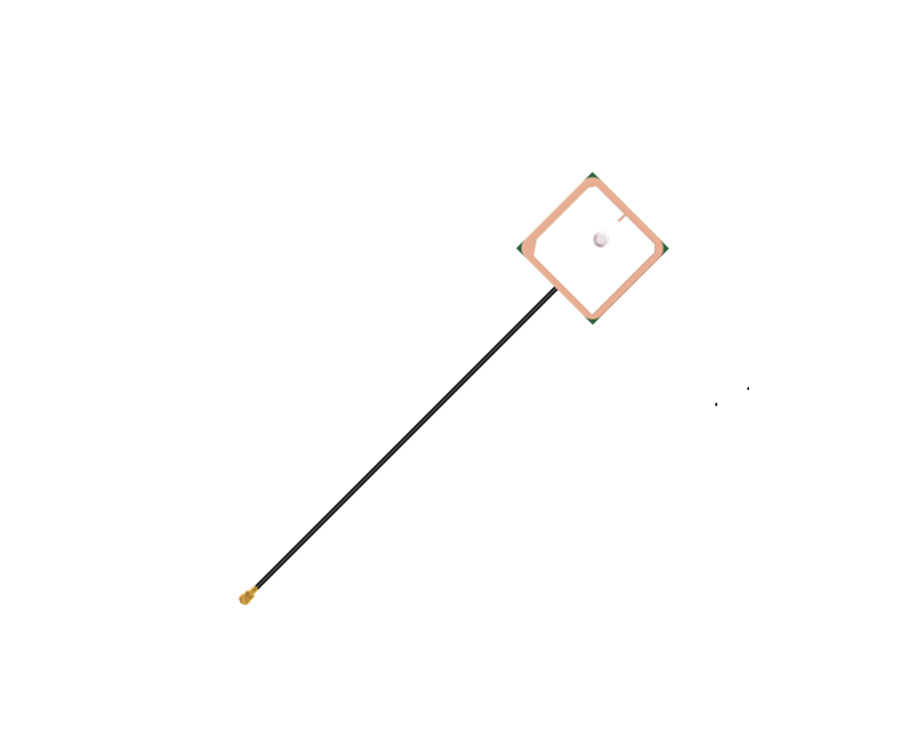

The YFGA025E3DM is a high-performance GNSS L1 buckle mount ceramic patch + cable passive embedded antenna, ideal for precise positioning applications. Operating in the 1559–1606MHz frequency range, it supports key bands like GPS L1, GALILEO E1, BDS B1C, and QZSS L1, ensuring compatibility with major global navigation systems.
With compact dimensions of 25mm x 25mm x 7.5mm and a lightweight design (typically 11.8g), it’s easy to integrate. Featuring 50Ω impedance, RHCP polarization, and a directional radiation pattern, it delivers reliable signal reception. Its peak gain reaches 0.69dBi, with efficiency up to 73.7% at 1561MHz, ensuring strong performance.
The antenna includes a 100mm black RF cable (Φ 1.13mm) with an IPEX MHF1 connector and uses a buckle mounting type. RoHS and REACH compliant, it operates in -40°C to +85°C, suitable for various environments. Packaged in pearl cotton trays (36 per tray, 180 per carton), it offers convenient logistics.
