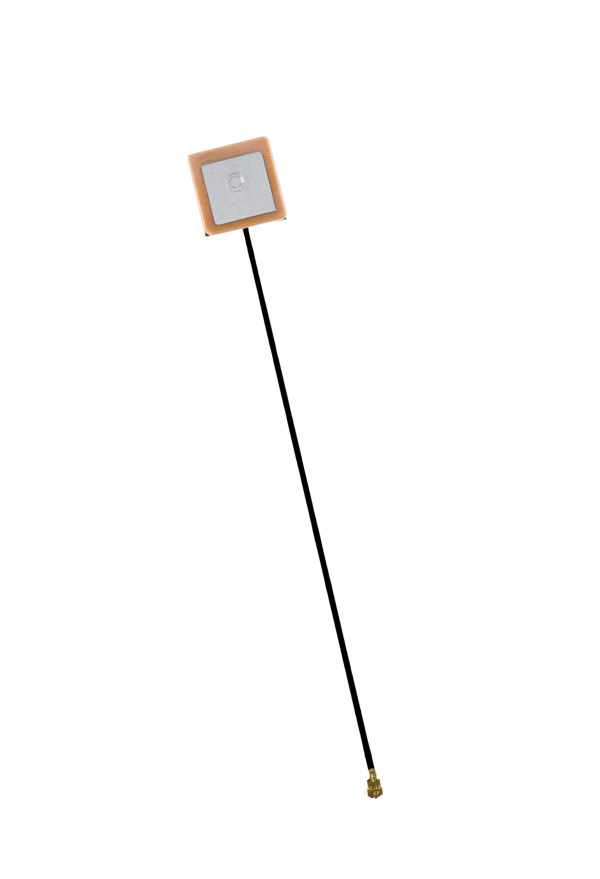

YFGA015E3BM GNSS L1 buckle mount ceramic patch + cable passive embedded antenna
- Frequency band: 1559–1606MHz
- Dimensions: 15mm x 15mm x 7.5mm
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for GNSS L1
- Pin mounted ceramic
- IPEX MHF 1 connector
- Peak gain: -1.05dB
Overview
The YFGA015E3BM is a GNSS buckle mount ceramic patch + cable passive embedded antenna, ideal for reliable positioning applications. Operating in the 1559–1606MHz frequency range with 50Ω impedance and RHCP polarization, it supports key bands like GPS L1, GLONASS G1, GALILEO E1, BDS B1I/B1C, and QZSS L1.
With dimensions of 15mm x 15mm x 7.5mm and a 6.0g weight, it features a Φ1.13mm black RF cable (100mm) with an IPEX MHF1 connector and buckle mounting for easy installation. It delivers 46% efficiency and a peak gain of -1.05dBi at 1575MHz, ensuring stable signal reception.
RoHS and REACH compliant, it operates in -40°C to +85°C. Packaged in pearl cotton trays (36 pcs) and cartons (180 pcs), it suits seamless integration into various GNSS-enabled devices requiring consistent performance
