YEMN901J1AH 5G/GNSS 9-in-1 screw mount combo external antenna

Overview

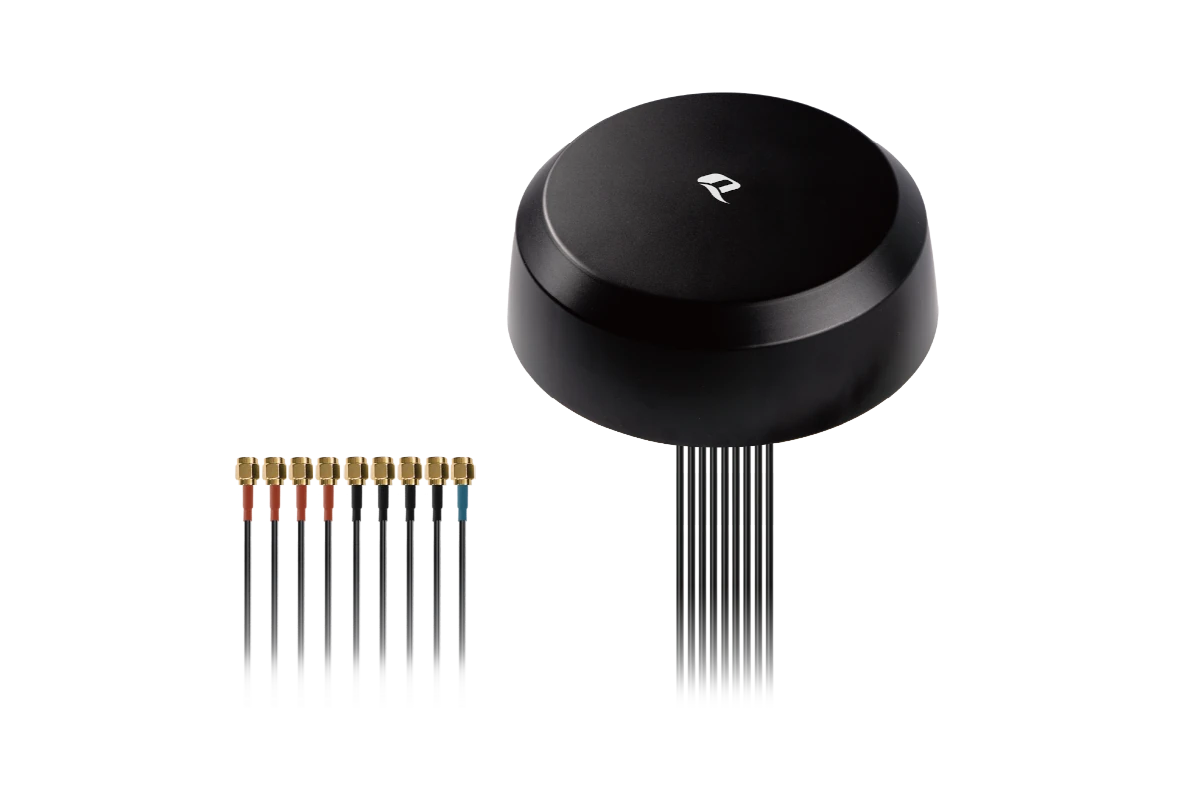

The YEMN901J1AH is a 5G and GNSS 9-in-1 combo antenna measuring Φ 167mm × 57mm. This ultra-wide-band 5G and GNSS antenna provides broad coverage from 600–6,000MHz whilst offering backward-compatibility to support 3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). The antenna is available with connection via 9 cable lengths from 300–5,000mm (compatible with ECE-R118 cables), terminated with SMA male connectors. Ideal for applications where the antenna is required to be discrete, this low profile, screw-mount omnidirectional antenna is easy to install, with maximum durability assured thanks to its IP67, IP69K and IK09 rated enclosure. It is compatible with Quectel’s RM520x Series modules.

The YEMN901J1AH has 4 × 5G LMH antennas, 4 × 5G MH/Wi-Fi antennas, and 1 × GNSS L1 and L5 antenna. It allows high efficiency, stable signal transmission and reception for active GNSS from 1164–1189MHz and 1559–1606MHz, and 5G/4G bands from 600–960MHz and 1400–6000MHz. In the meantime, this product also offers high isolation between antennas to avoid self-interference. All in all, this unique product is designed to provide stable and high-speed data connection to 5G and GNSS applications. The YEMN901J1AH can be used in harsh environments thanks to its robust UV-resistant (UL 746c f1) and flame-resistant (UL 94 V-0) enclosure.

Typical applications include:

• Smart utilities and buildings
• Digital signage
• Warehouses and logistic systems
• Industrial factory automation, robotic machinery, and other M2M systems
• Transport (buses, utility, and public safety)
• Mining vehicles and machinery communications, telemetry, and automation
