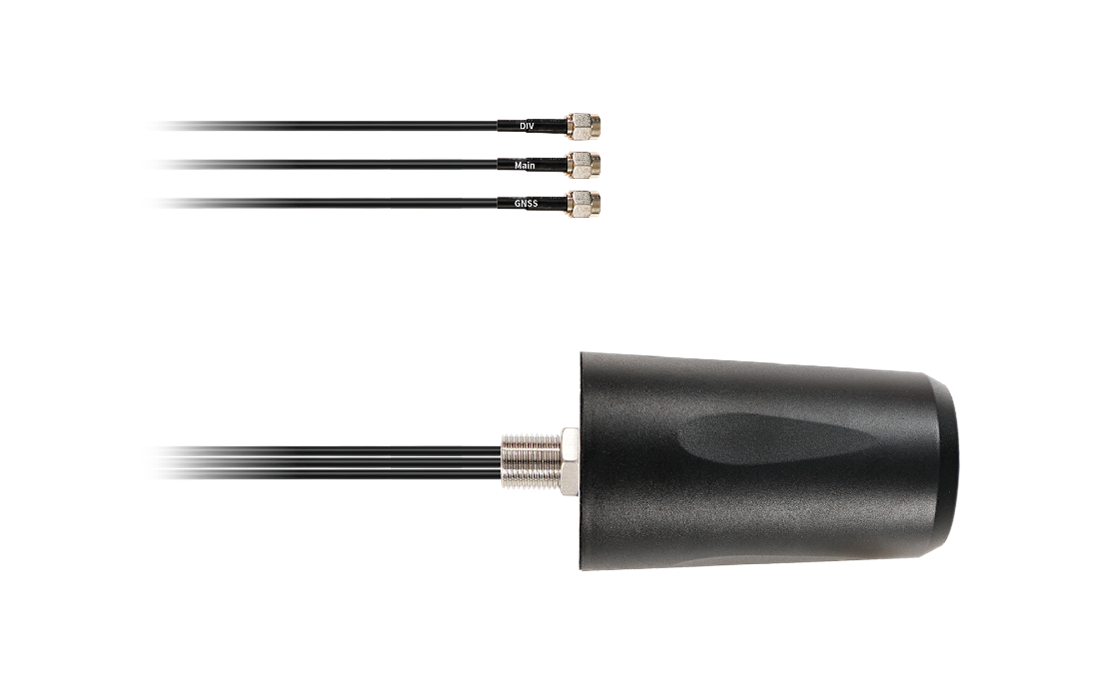

YEMN311J1AH 5G & GNSS 3-in-1 multiple mount combo external antenna
- Frequency band – 5G: 600–960MHz, 1710–2690MHz, 3300–6000MHz
- Frequency band – GNSS: 1565–1606MHz
- Dimensions: Φ 54mm x 91.8mm
- Efficiency: up to 67%
- GNSS LNA gain: 17 ±3dB
- RoHS compliant
- IP rating: IP66
Have a question? Contact us
Key features
- Optimized for 5G and GNSS networks
- Magnet, adhesive, and screw mount
- SMA male connector
Overview
The YEMN311J1AH is a 5G and GNSS 3-in-1 combo antenna measuring Φ 54mm x 91.8mm. This ultra-wide-band 5G and GNSS antenna provides broad coverage from 1565–1606MHz, 600–960MHz, 1710–2690MHz, 3300–6000MHz whilst offering backward-compatibility to support 4G/3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). Ideal for applications where the antenna is required to be discrete, the antenna is available as a magnet, adhesive, and screw mount omni-directional antenna. It is easy to install, with maximum durability and suitability for use in harsh outdoor environments assured thanks to its IP66 rated enclosure. It is compatible with Quectel’s RM520x series modules.
The YEMN311J1AH has 2 x 5G LMH antennas and 1 x GNSS L1 antenna. It allows high efficiency, stable signal transmission and reception for active GNSS from 1565–1606MHz, and 5G bands from 600–960MHz, 1710–2690MHz, 3300–6000MHz. In the meantime, this product also offers high isolation between antennas to avoid self-interference. All in all, this unique product is designed to provide stable and high-speed data connection to 5G and GNSS applications.
Typical applications include:
- Public safety
- HD video streaming
- Utilities and smart cities
- Fleet management
- Automotive vehicle tracking
