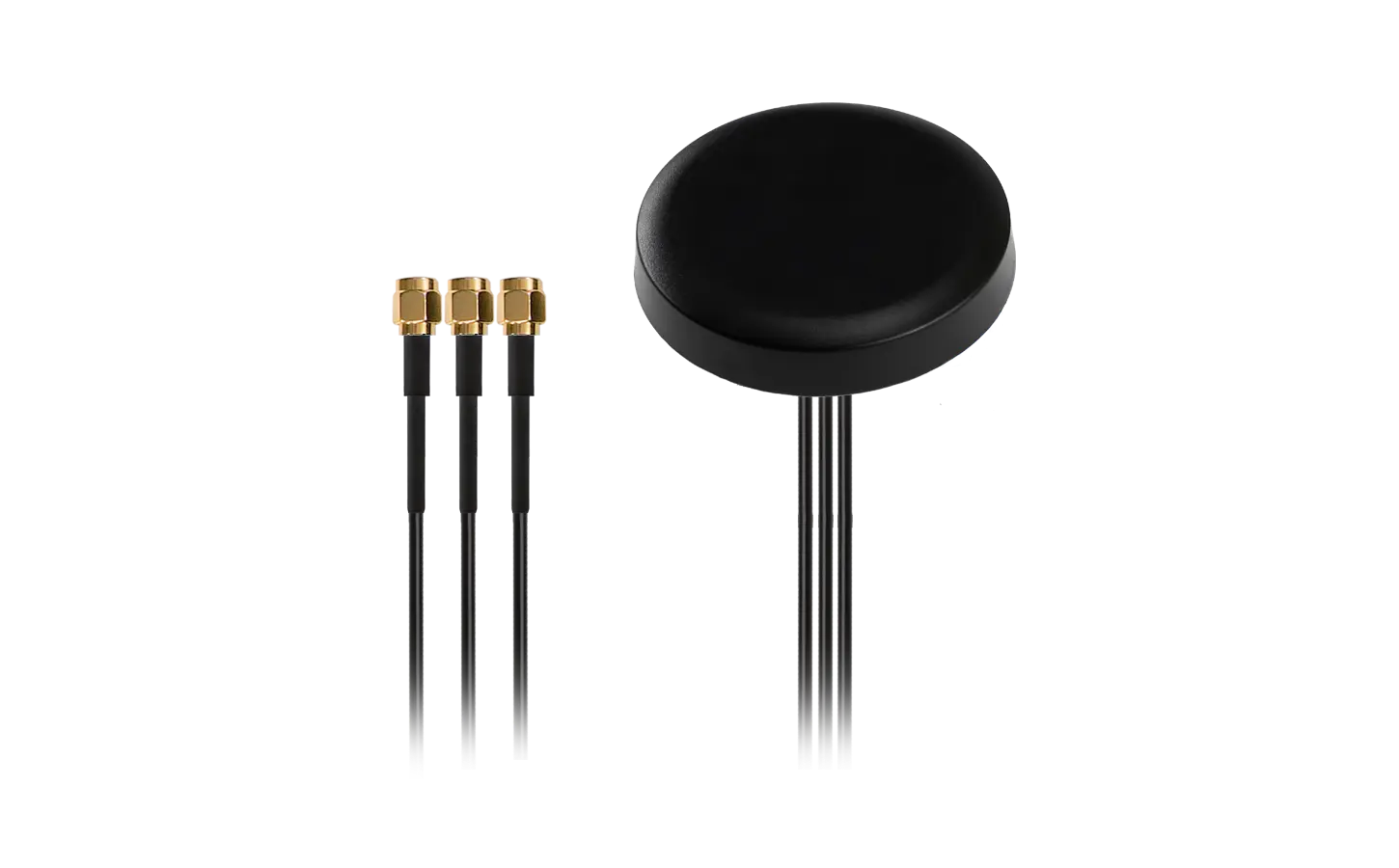

YEMN308Q1AM 4G/GNSS 3-in-1 screw mount combo external antenna
- Frequency band – 4G: 698–960MHz, 1710–2690MHz
- Frequency band – 4G-DIV: 698–960MHz, 1710–2690MHz
- Frequency band – GNSS: 1559–1606MHz
- Dimensions: Φ 81mm × 15.5mm
- Efficiency: up to 25.3% (FS)
- RoHS compliant
- IP rating: IP66
Have a question? Contact us
Key features
- Optimized for 4G and GNSS networks
- Screw mount
- SMA male connector
- GNSS LNA gain: 16 ±3dB
Overview
The YEMN308Q1AM is a 4G and GNSS 3-in-1 combo antenna measuring Φ 81mm × 15.5mm. This ultra-wide-band 4G and GNSS antenna provides broad coverage from 1559–1606MHz, 698–960MHz, 1710–2690MHz whilst offering backward compatibility to support 3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). Ideal for applications where the antenna is required to be discrete, the antenna is available as a screw mount omni-directional antenna. It is easy to install, with maximum durability and suitability for use in harsh outdoor environments assured thanks to its IP66 rated enclosure. It is compatible with Quectel’s RM520x Series modules.
The YEMN308Q1AM has 2 × 4G LMH antenna and 1 × GNSS L1 antenna. It allows high efficiency, stable signal transmission and reception for active GNSS from 1559–1606MHz, and 4G bands from 698–960MHz, 1710–2690MHz. In the meantime, this product also offers high isolation between antennas to avoid self-interference. All in all, this unique product is designed to provide stable and high-speed data connection to 4G and GNSS applications.
Typical applications include:
- Public safety
- HD video streaming
- Utilities and smart cities
- Fleet management
- Automotive vehicle tracking
