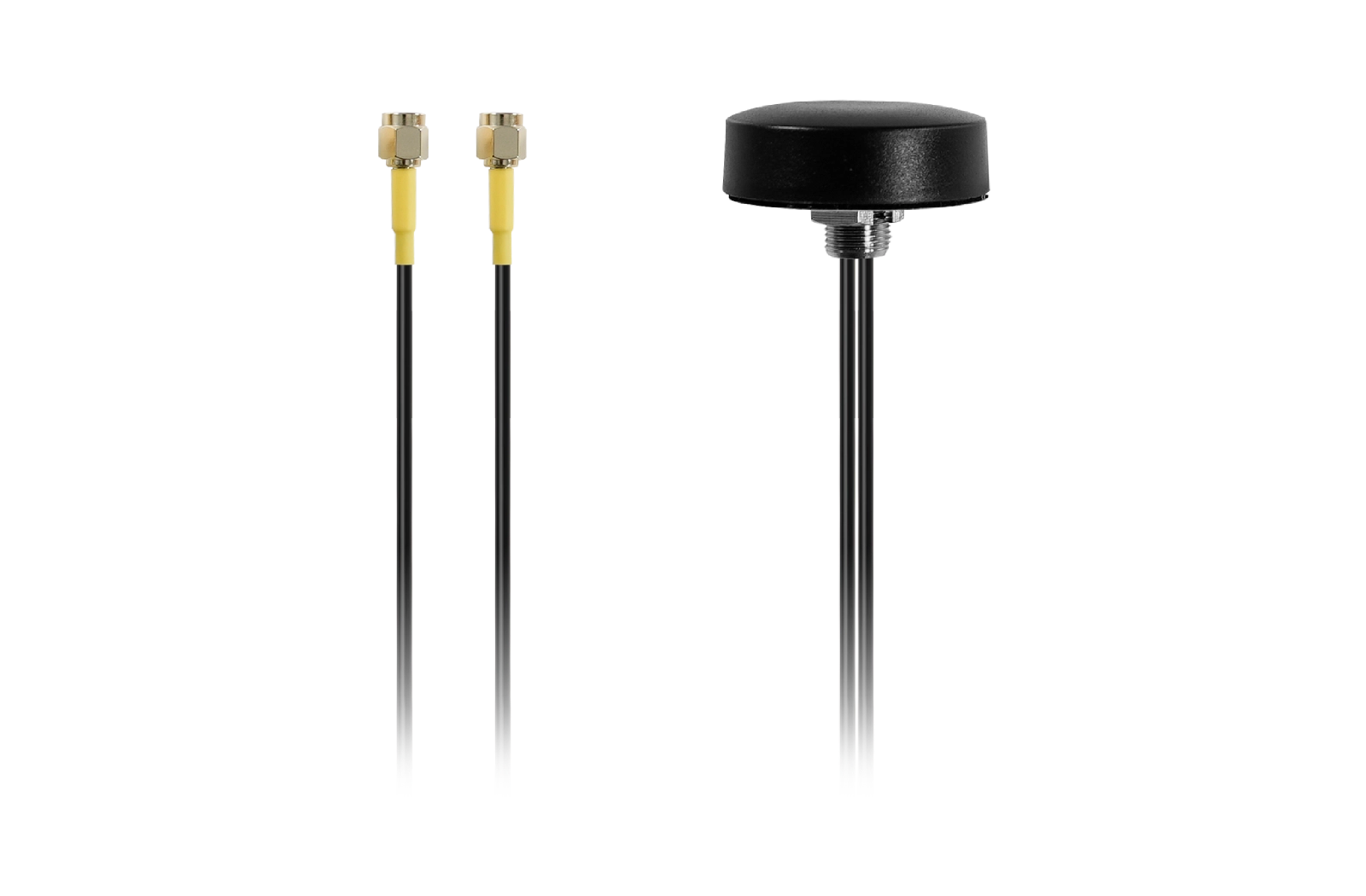

YEMN205J1CM 4G 2-in-1 screw mount combo external antenna
- Frequency band – 698–960MHz, 1710–2690MHz
- Dimensions: Φ 46mm x 15mm
- Efficiency: up to 55.3% (FS)
- RoHS compliant
- IP rating: IP67
Have a question? Contact us
Key features
- Optimized for 4G networks
- Screw mount
- SMA male connector
- ABS casing
Overview
The YEMN205J1CM is a 4G 2-in-1 combo antenna measuring Φ 46mm x 15mm. This ultra-wide-band antenna supports 698–960MHz, 1710–2690MHz. It is backward compatible with 3G, 2G, LTE Cat-M, and NB-IoT. The antenna is available with connection via 2 cables with lengths from 300mm that are terminated with SMA male connectors. Ideal for applications where the antenna is required to be discrete, this low profile, adhesive and screw mount omni-directional antenna is easy to install, with maximum durability assured thanks to its IP67 rated enclosure. It is compatible with Quectel’s 4G series modules.
The YEMN205J1CM has 2 x 4G LMH antennas. It allows high efficiency, stable signal transmission and reception from 698–960MHz, 1710–2690MHz. In the meantime, this product also offers high isolation between antennas to avoid self-interference. All in all, this unique product is designed to provide stable and high-speed data connection to 4G applications.
Typical applications include:
- HD video streaming over LTE
- IoT applications
- Emergency service system
- Warehouses and logistic systems
- Mining vehicles and machinery communications, telemetry and automation
