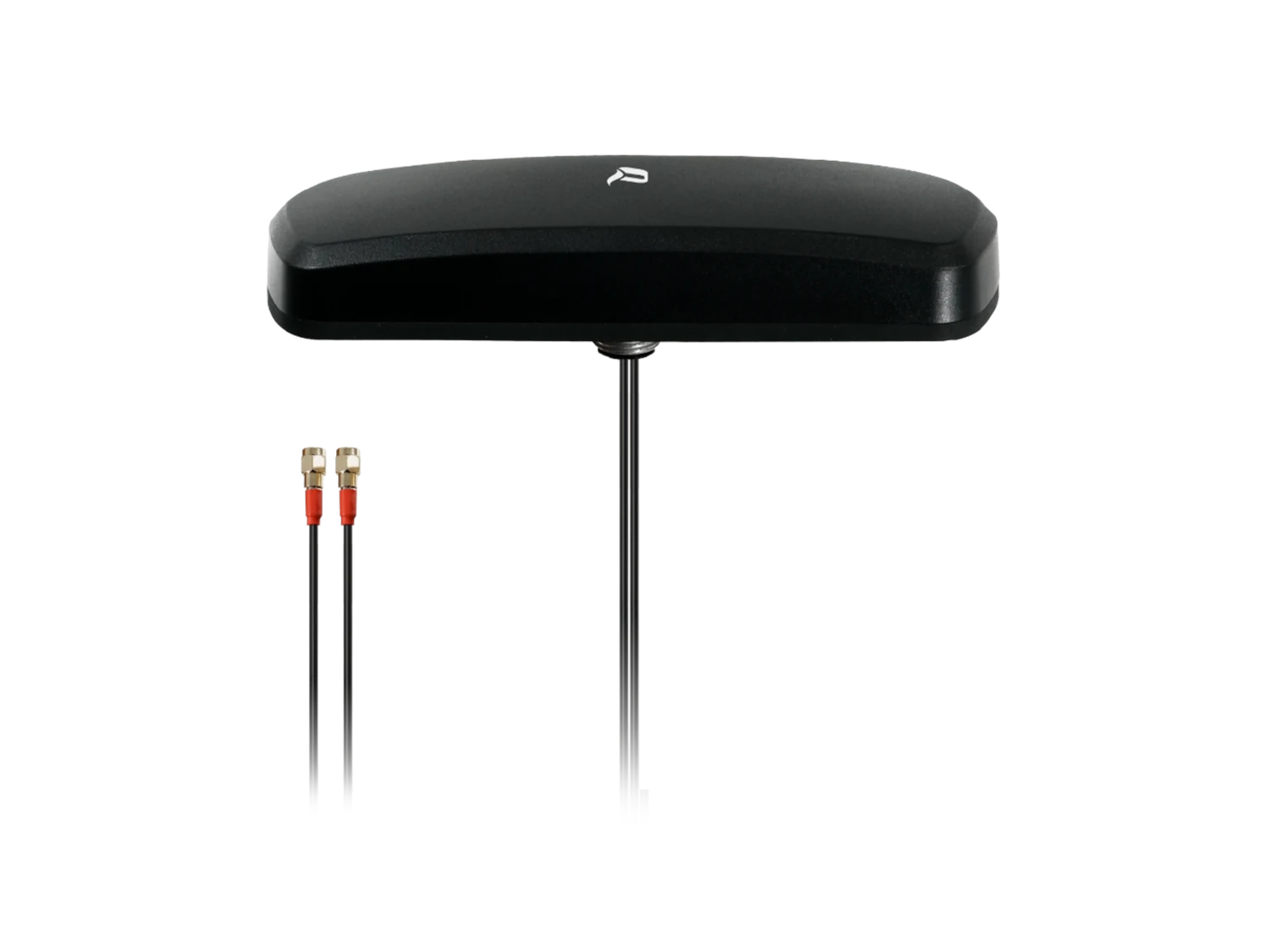

YEMN204J1BH 5G 2-in-1 screw mount combo antenna

  • Dimensions: 204.4 mm × 86.7 mm × 32 mm
  • IP rating: IP67 and IP69K
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • Optimized for 5G networks
  • 5G/4G MIMO
  • Screw mount
  • SMA male connector
  • PC housing

Overview

The YEMN204J1BH is a 5G 2-in-1 combo antenna measuring 204.4 mm × 86.7 mm × 32 mm. This ultra-wide-band 5G antenna provides broad coverage from 600–6,000 MHz whilst offering backward compatibility to support 3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). The antenna is available with connection via 2 cable lengths from 300–5,000 mm, terminated with SMA male connectors. Ideal for applications where the antenna is required to be discreet, this low-profile, screw-mount omnidirectional antenna is easy to install, with maximum durability assured thanks to its IP67 and IP69K rated enclosure.

The YEMN204J1BH has 2 × 5G LMH antennas. It covers 5G/4G bands from 600–960 MHz and 1400–6000 MHz. In the meantime, this product also offers high isolation between antennas to avoid self-interference. All in all, this unique product is designed to provide stable and high-speed data connection to 5G applications. It can be used in harsh environments thanks to its robust UV-resistant (UL 746c f1) and flame-resistant (UL 94 V-0) enclosure.

Typical applications include:

  • HD video streaming over LTE
  • Vehicle tracking and telematic system
  • IoT and routers applications
