YECT001W1AM 5G terminal mount rubber monopole external antenna

  • Frequency band: 698–960 MHz, 1710–2690 MHz, 3300–6000 MHz
  • Dimensions: 52.6 mm x 18.6 mm x 9 mm
  • Efficiency: up to 73.6 %
  • RoHS and REACH compliant
  • IP rating: IP54
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • Optimized for 5G
  • Terminal mount antenna
  • SMA (male) connector

Overview

The YECT001W1AM is a 5G rubber antenna measuring 52.6 mm x 18.6 mm x 9 mm. This ultra-wide-band 5G antenna provides broad coverage from 698–960 MHz, 1710–2690 MHz, 3300–6000 MHz whilst offering backward compatibility to support 4G/3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). The antenna is terminated with 90° SMA male connector. This low profile, terminal mount omni-directional antenna, ideal for applications where the antenna is required to be discrete, is easy to install with maximum durability assured thanks to its TPE enclosure.

It allows constant and reliable transmission and reception due to its omni-directional gain across all frequency bands. The YECT001W1AM is designed as a monopole antenna, which needs to be mounted on a ground plane to offer high efficiency in all working bands. It is a perfect antenna product for customers that desire highest performance. This high-efficiency, high-gain omni-directional antenna is ideally suited for IoT sensors, public safety and security, fleet management, and smart home automation.

Browse our wide range of antennas – download our antenna brochure

Product Brochure

Quectel_Product_Brochure_V8.6.pdf

Download

Related products

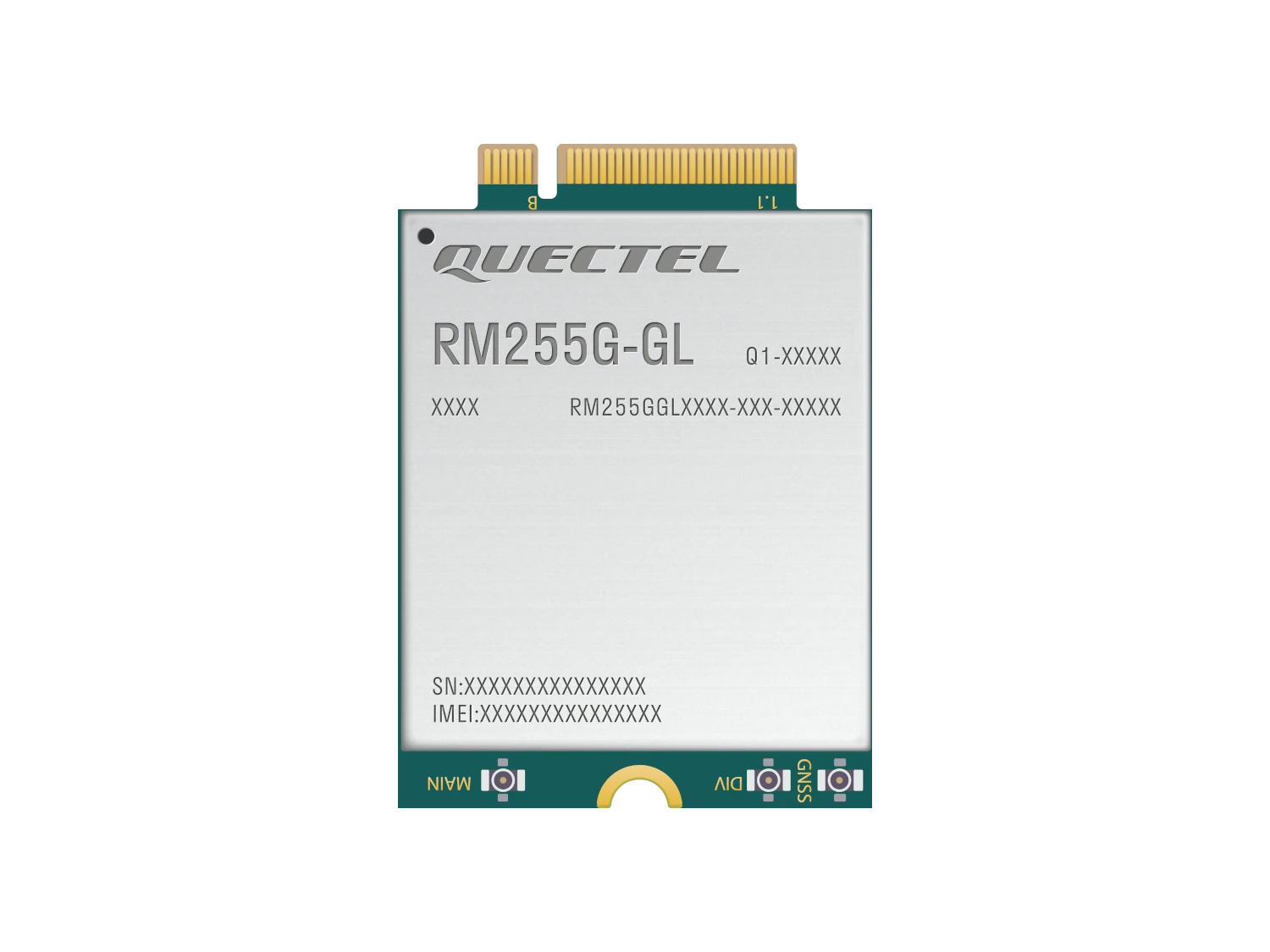

5G RedCap RM255G-GL

5G RedCap RM255G-GL

256QAM3GPP Rel-175GSA
Read more: 5G RedCap RM255G-GL

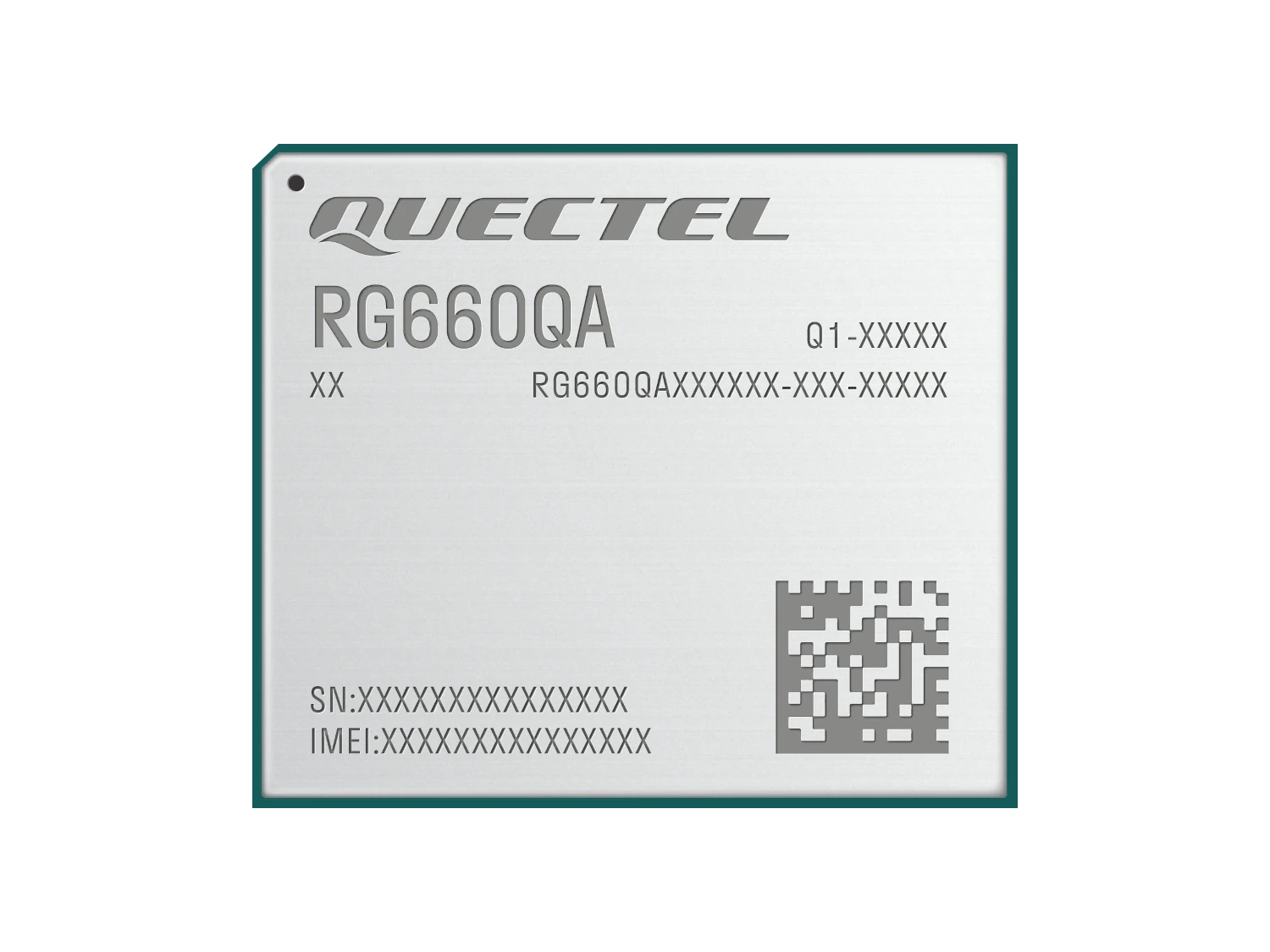

5G RG660QA series

5G RG660QA series

3GPP Rel-185GFOTANSAQualcomm Gen9C LiteSAVoLTEVoNRWi-Fi 7
Read more: 5G RG660QA series

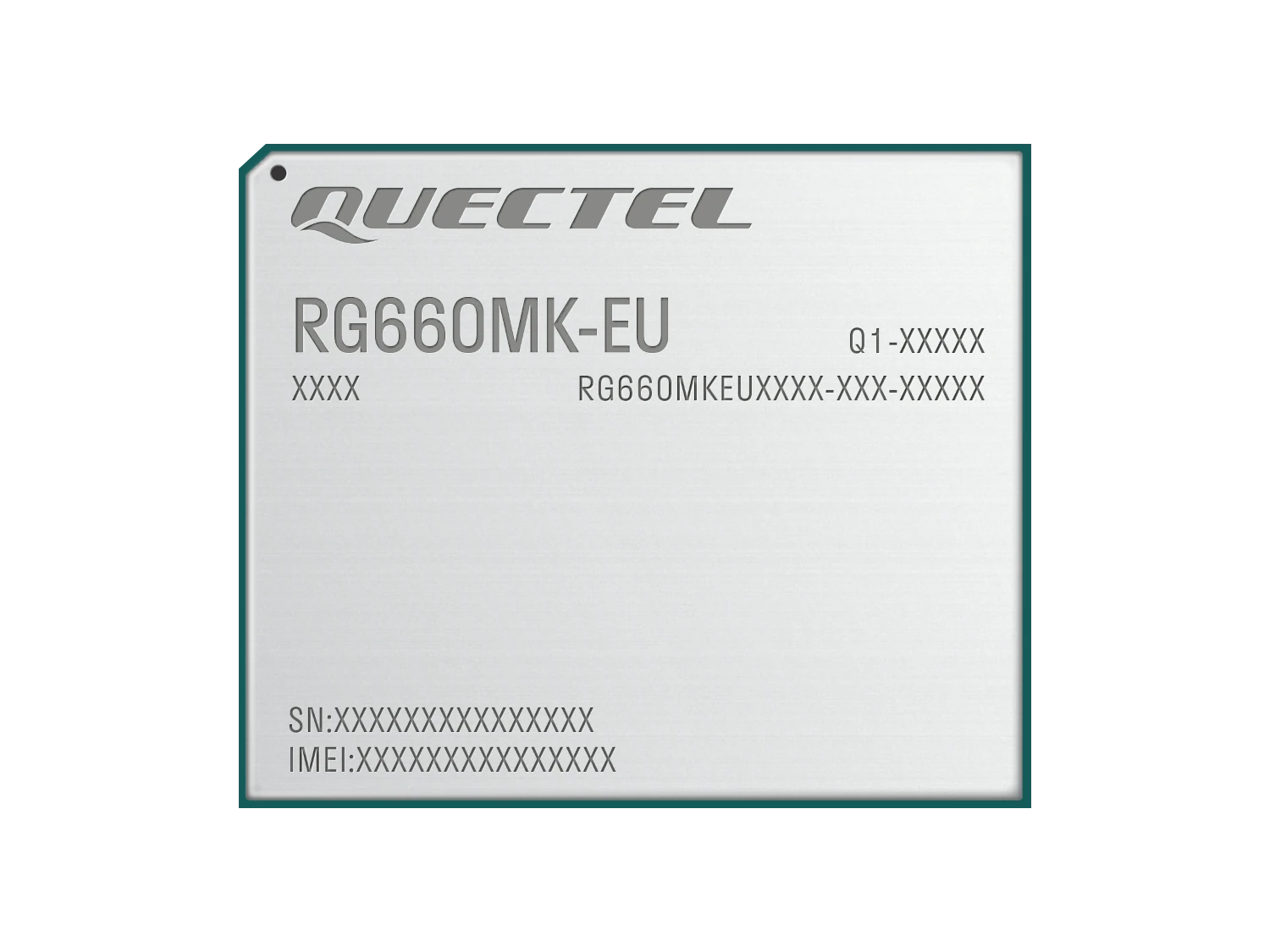

5G RG660MK series
