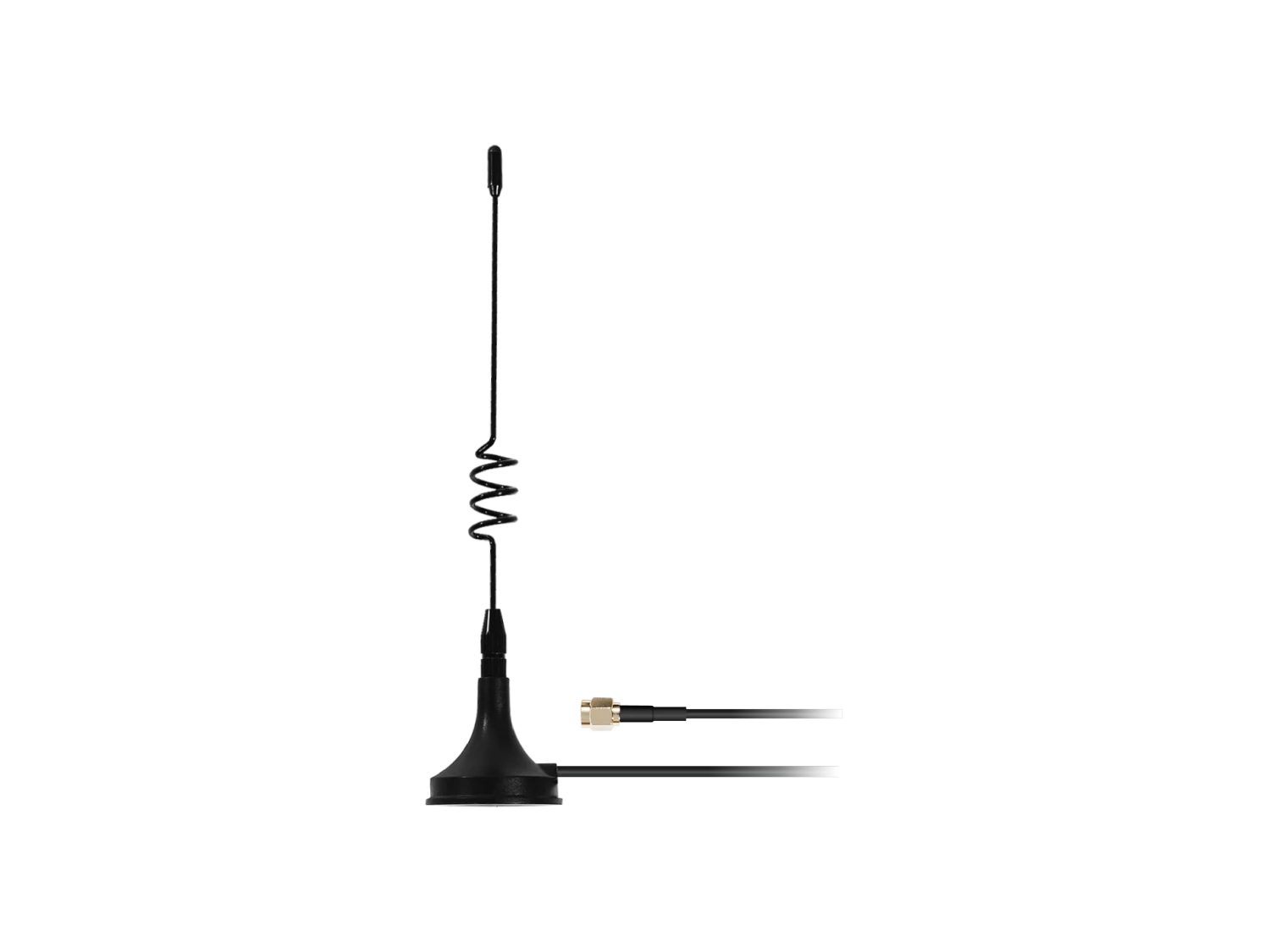

YEBM030L1AM Wi-Fi magnetic mount whip monopole external antenna
- Frequency band – Wi-Fi: 2400–2500 MHz
- Dimensions: Φ 29.8 mm × 148 mm
- Efficiency: up to 48.8 %
- RoHS compliant
Have a question? Contact us
Key features
- Optimized for Wi‑Fi networks
- Magnetic mount
- SMA male connector
- IP65 ABS housing
Overview
The YEBM030L1AM is a compact, omnidirectional Wi‑Fi antenna designed for reliable 2.4GHz band operation. It features a cylindrical form factor of Φ 29.8 mm × 148 mm and is built with a black ABS housing.
Key specifications:
- Frequency range: 2400–2500 MHz
- Impedance: 50 Ω
- Polarization: linear
- Radiation pattern: omnidirectional
- Cable: RG174LL, black, 1200 mm length
- Connector: SMA male
- Mounting type: magnetic base (magnet)
- Operating temperature: -40 °C to +85 °C
- RoHS compliant
The antenna is tested on a 300 mm × 300 mm metal plane to ensure consistent performance. It is suitable for Wi‑Fi applications requiring a durable, weather‑resistant (IP65), and easy‑to‑install magnetic mount antenna.
