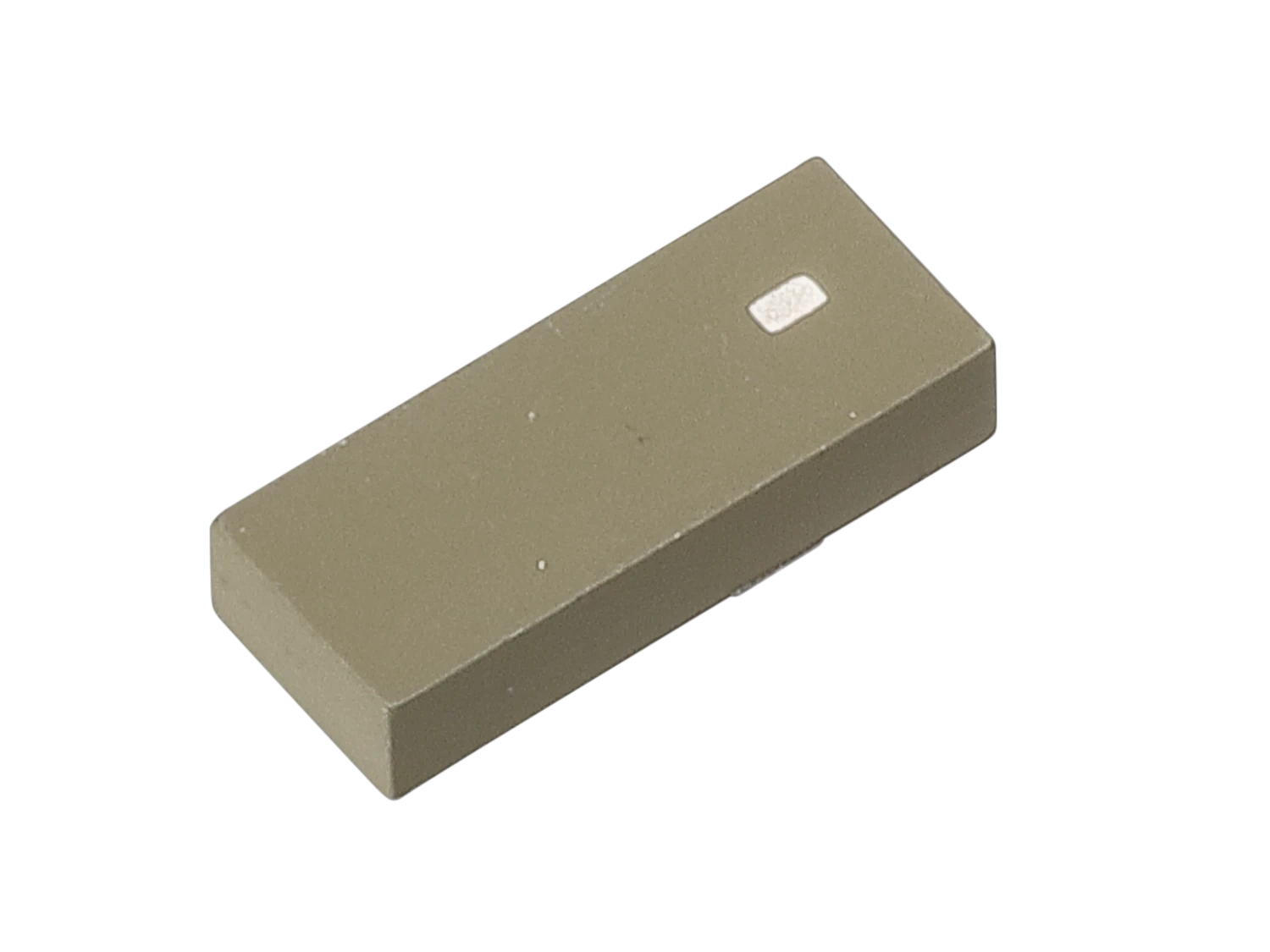

YC0011AA Wi-Fi SMT mount ceramic chip IFA antenna
- Frequency band: 2400–2500 MHz, 5150–5850 MHz
- Dimensions: 5 mm × 2 mm × 1 mm
- Peak efficiency: 70.55 %
Have a question? Contact us
Key features
- Optimized for Wi-Fi networks
- SMT mount
- High efficiency, excellent performance
Overview
The Quectel YC0011AA is a compact form factor SMT mount ceramic chip antenna for Wi-Fi applications. Due to its dimensions of 5 mm × 2 mm × 1 mm, it is designed for very small space requirements for smart metering, remote monitoring, vehicle tracking and telematics, and many other IoT devices. The YC0011AA is a ground-depended IFA antenna, using main PCB as its ground plane. It is delivered on tape and reel.
YC0011AA is a ceramic chip antenna, which can be mounted on super compact space requirement terminals. Despite its small factor, it has up to 71 % efficiency in working bands. This antenna is developed on a 91 mm × 51 mm evaluation board. If the devices have different ground sizes, a matching circuit can be used to tune the resonant frequency correctly. We also offer Gerber files and 2D and 3D documents for PCB layout. The YC0011AA allows high-efficiency, stable signal transmission and reception for Wi-Fi working bands in 2400–2500 MHz, 5150–5850 MHz. This product is RoHS and REACH compliant.
Typical applications include:
- Hand-held devices
- Bluetooth earphone systems
- Hand-held devices when Bluetooth/Wi-Fi functions are needed, e.g., smart phones.
- IEEE802.11 b/g/n
- ZigBee
- Wireless PCMCIA cards or USB dongle
