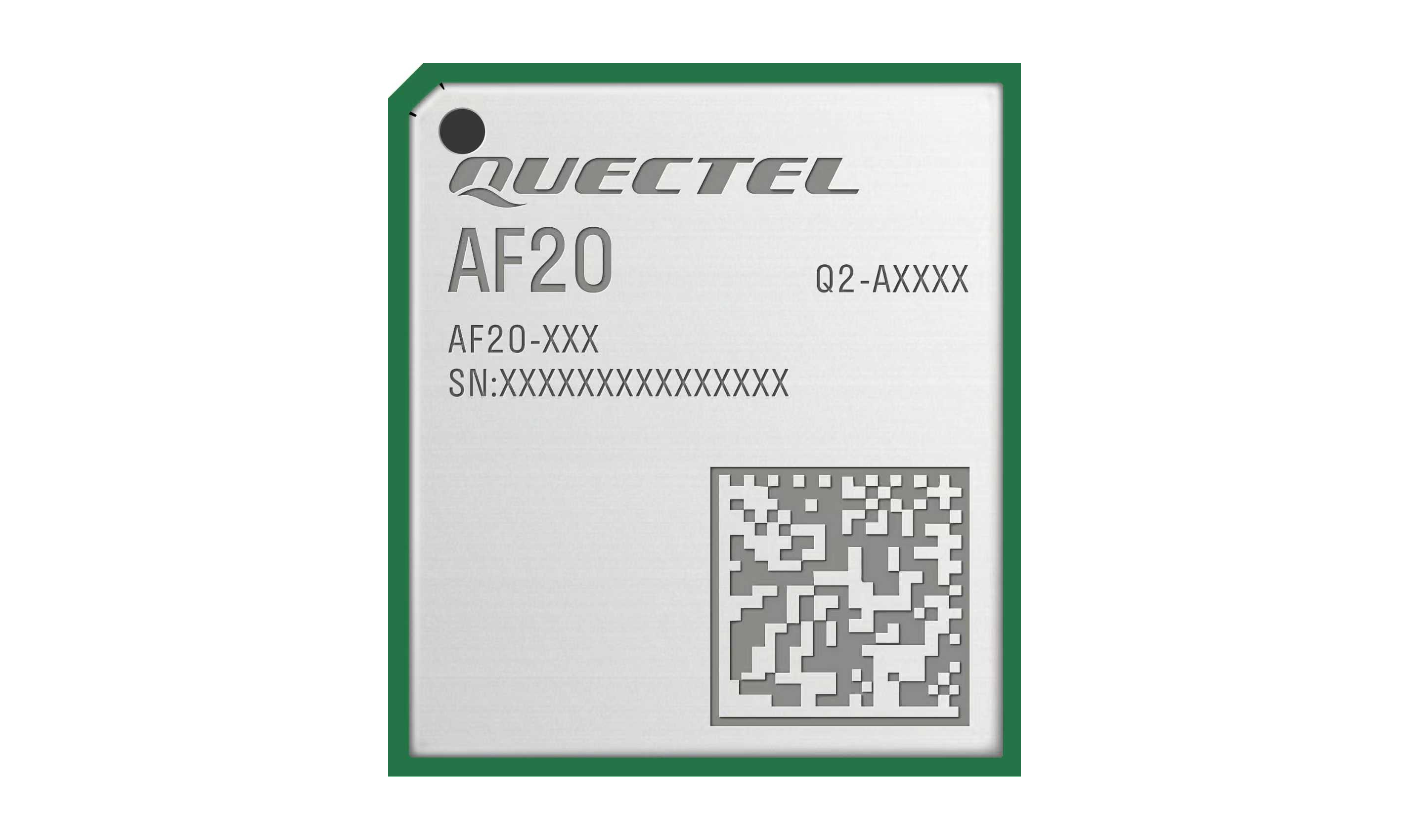

Wi-Fi 5 & Bluetooth 5.0 AF20 automotive module
- Automotive grade Wi-Fi 5 and Bluetooth 5.0 module
- Dimensions: 17.2 mm x 15.2 mm x 2.26 mm
- LGA form factor
- 433 Mbps max. data rate
- Operating temperature range: -40 °C to +85 °C
Have a question? Contact us
Key features
- Ultra-compact Wi-Fi and Bluetooth module
- Supports Bluetooth 5.0 technology
- Supports IEEE802.11a/b/g/n/ac standards
- Easier soldering and testing process with LGA package
- Stable and reliable SDIO 3.0 communication interface
- Fast time to market: simple design minimizes design-in time and development efforts
Overview
Quectel’s AF20 is a cost-effective Wi-Fi 5 and Bluetooth 5.0 module with high performance. The ultra-compact 17.2 mm x 15.2 mm x 2.26 mm profile makes it the perfect choice for size sensitive applications. The compact and unified form factor can also help customers reduce product sizes and cut costs.
Surface-mount technology (SMT) makes the AF20 an ideal solution for durable and rugged designs. The compact LGA package ensures the AF20 can be easily embedded into size-constrained applications and provides reliable connectivity with these applications. The advanced package allows for large-scale automated manufacturing which has strict requirements on cost and efficiency.
Combining advantages such as a compact form factor, low power consumption, a wide temperature range, and a stable SDIO interface, the AF20 is especially applicable to automotive industry applications.
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
