Quectel Pi H1 SBC (SG565D)
- High-performance 64-bit octa-core processor, delivering up to 12 TOPS of computing power
- 1 x A78 @ 2.7 GHz + 3 x A78 @ 2.4 GHz + 4 x A55 @ 1.9 GHz
- 32 KB L1I cache, 32 KB L1D cache and 512 KB L2 cache
- Adreno 643L @ 812 MHz
- 8 GB LPDDR4X + 128 GB UFS
- Yocto Linux/ Debian/ Ubuntu*
Have a question? Contact us
Key features
- Robust computing power: Up to 12 TOPS, well-suited for most algorithm prototyping & inference application development.
- Feature-rich interfaces: USB, Micro HDMI, ADC, audio, Ethernet, camera, PCIe , antenna, etc.
- Dual displays: DP and LCM or DP and Micro HDMI.
- Wireless connectivity: Wi-Fi 5, 802.11a/ b/ g/ n/ ac, delivering enhanced wireless connectivity.
- Multiple operating systems: Yocto Linux/ Debian/ Ubuntu.
- Extended temperature range: For harsh outdoor & industrial use; and withstand ambient temperatures from -20 °C to +70 °C.
- Diverse application scenarios: Edge computing, robotics, industrial automation, multimedia terminals, digital signage, smart security, rugged PDAs, etc.
Overview

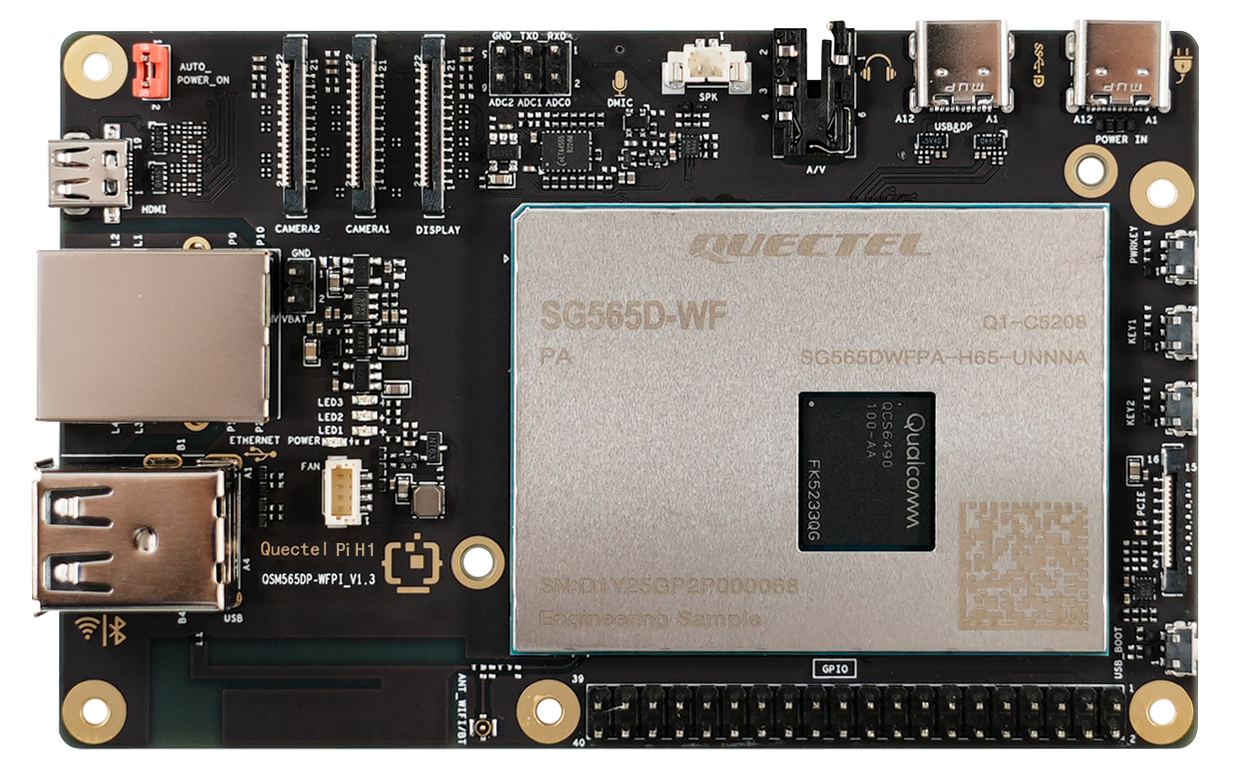

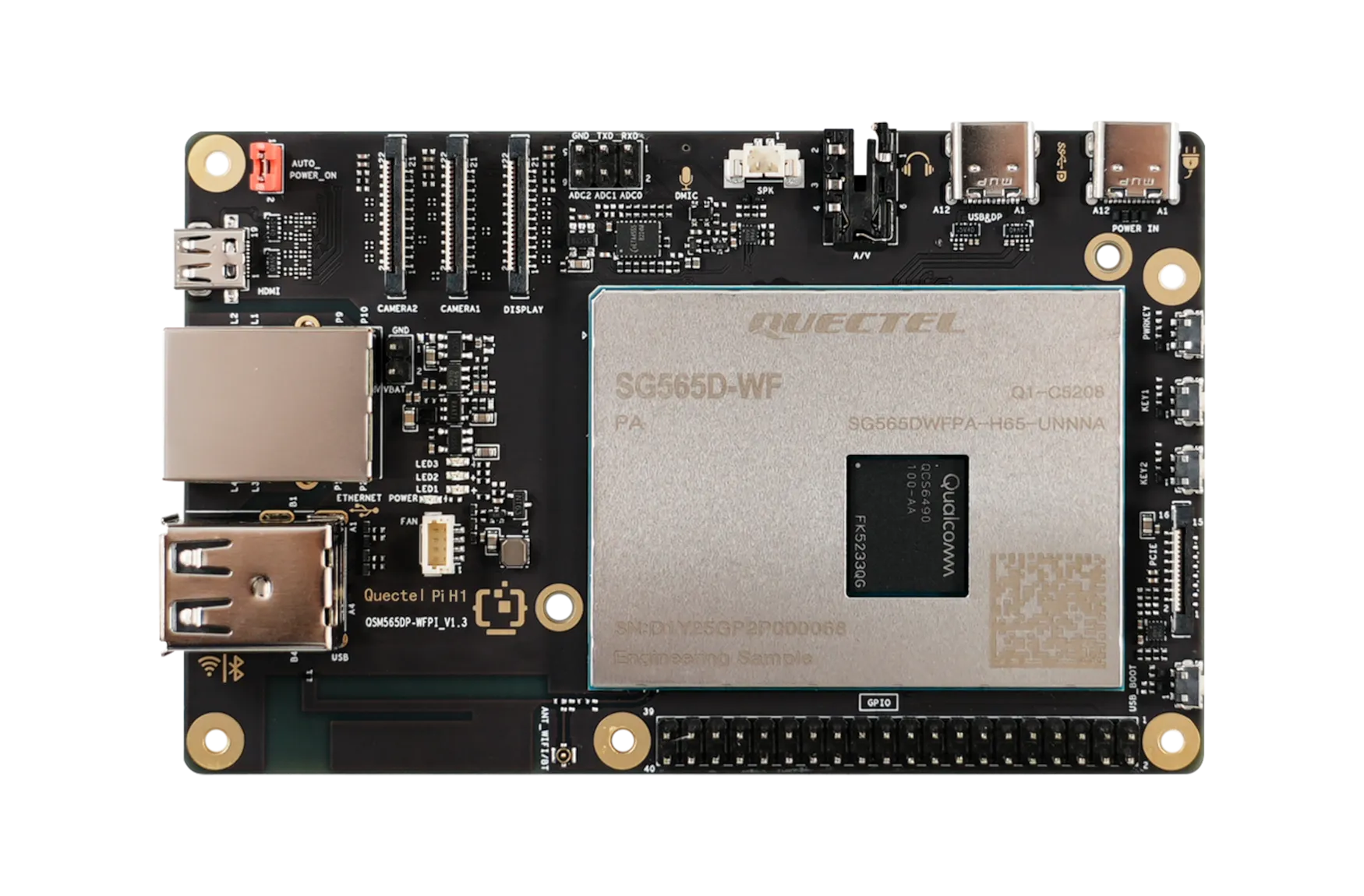

Quectel Pi H1 is a smart Single-Board Computer (SBC) based on the Qualcomm QCS6490 platform. It integrates a high-performance 64-bit octa-core processor delivering up to 12 TOPS of computing power, along with the Qualcomm Adreno™ 643L GPU. Supporting Yocto Linux, Debian, and Ubuntu operating systems, the product comes equipped with 8 GB of LPDDR4X memory and features a USB Type-C power interface, expandable with external eMMC or SSD storage. It offers dual-band Wi-Fi (2.4 & 5 GHz) compliant with IEEE 802.11a/ b/ g/ n/ ac and Bluetooth 5.0, while enabling dual-display output via DP and LCM or DP and Micro HDMI. Combining powerful performance with rich multimedia capabilities, the Quectel Pi H1 is designed to meet the demands of both industrial and consumer applications for high-speed connectivity, advanced multimedia, and robust computing power.
