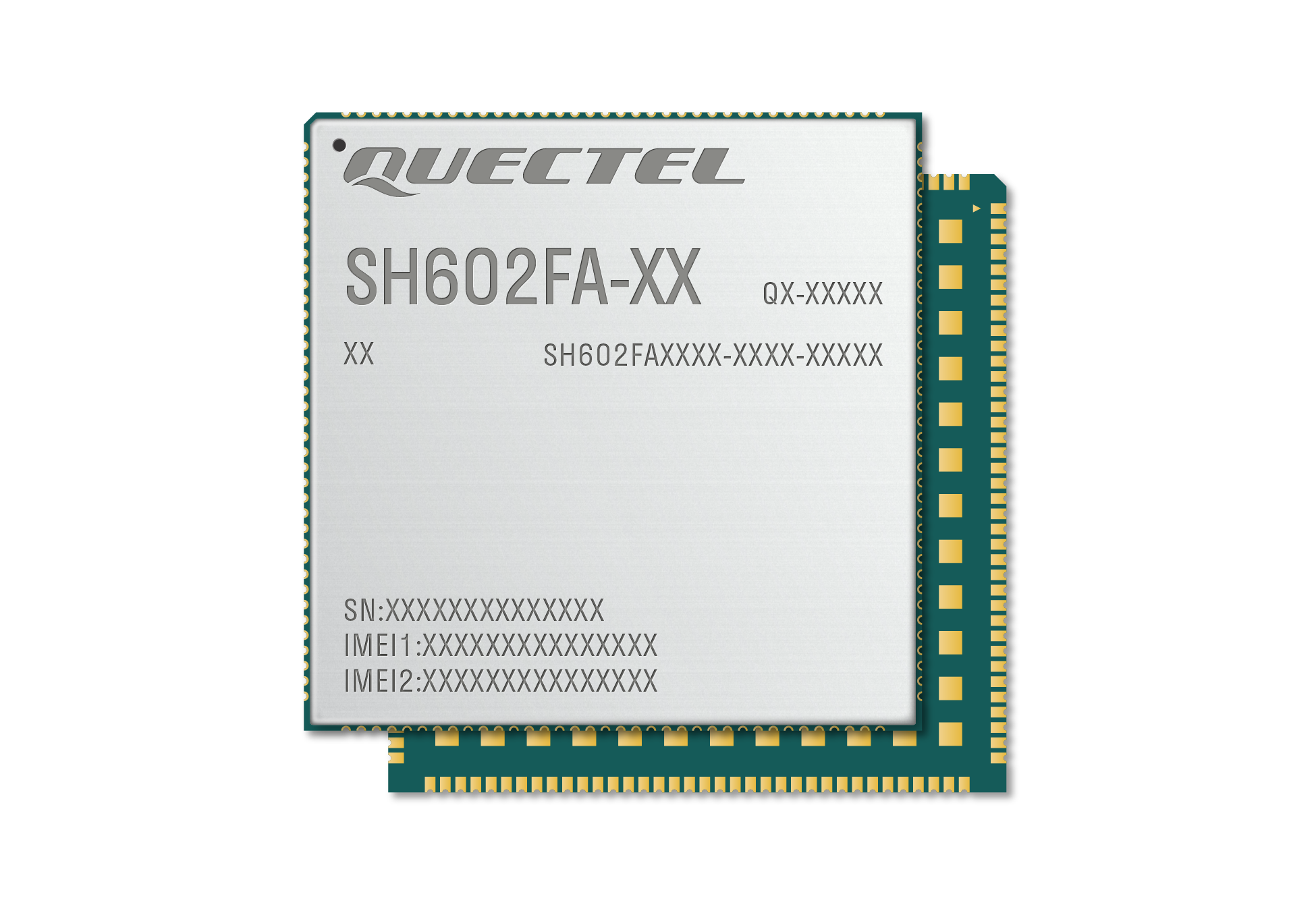

LTE SH602FA smart module series
- Multi-mode smart LTE module with Wi-Fi and Bluetooth
- Android 16
- LCC form factor
- 40.5mm × 40.5mm × 2.8mm
- Max. data rates of 150Mbps (DL) and 50Mbps (UL)
- Supports 802.11a/ b/ g/ n/ ac
- Operating temperature range: -35°C to +75°C
Have a question? Contact us
Key features
- Exceptional system performance based on MTK MT8786 64-bit octa-core ARM processors
- Built-in high-performance ARM Mali-G52 2EEMC2 GPU
- Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
- MIPI DSI FHD+ 1080 x 2520 @ 60fps
- Dual concurrently-working cameras supported
- Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
- Recording and playback 2560 x 1440 @ 30fps
Overview
The SH602FA series is Quectel’s new generation of multi-mode smart LTE Cat 4 modules with built-in Android 16 OS. Based on MT8786 high-performance 64-bit octa-core processors (2 x A75 @ 2.0GHz + 6 x A55 @ 1.8GHz) with an ARM Mali-G52 2EEMC2 GPU, it is an ideal solution for a wide range of industrial and consumer applications requiring high data rates and multimedia functions. The SH602FA series has four variants: SH602FA-EM*, SH602FA-NA*, SH602FA-JP* and SH602FA-WF*.
The SH602FA series module supports multiple-input multiple-output (MIMO) technology. The concurrent use of multiple antennas at the receiver end on the same frequency band greatly minimizes bit error rate and optimizes the data speed, thereby improving communication quality. The module also supports multi-constellation GNSS (GPS, GLONASS, BDS, Galileo and QZSS, L1) receiver for fast and accurate positioning.
A rich set of interfaces (such as LCM, camera, touch panel, video, audio, UART, USB, I2C, I2S, and SPI) are integrated to extend the applicability of the module to a wide range of M2M applications, including smart cash registers, smart POS, tax control machines, smart safety, on-board equipment, high-end information acquisition equipment, smart robots, smart home, smart hardware, industrial smart handheld equipment, audio and video recorders, smart interphones, smart wearables, vending machines, logistics cabinets, etc.
